American Wire Gauge:
26 AWG
Number of Cores:
12
Connector 2 Housing Gender:
Male
Standards Met:
IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant
Cable Shape:
Multicore
IP Rating:
IP67
Shielded/Unshielded:
Unshielded
Maximum Operating Temperature:
+80°C
Operating Temperature Range:
-30 → +80 °C
Connector 1 Orientation:
Right Angle
Connector 1 Gender:
Male
Length:
5m
Sheath Material:
Polyurethane PUR
Connector 2 Gender:
Male
Connector 2 Number of Contacts:
12
Series:
2134
Connector 1 Housing Gender:
Female
Connector 1 Number of Contacts:
12
Coding:
A
Sheath Colour:
Black
Cross Sectional Area:
0.14 mm²
Minimum Operating Temperature:
-30°C
Connector 2:
Unterminated
Connector 1:
M12
1st Connector Orientation:
A
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
REACH Status:
REACH Unaffected
2nd Connector Type:
Plug, Right Angle
Assembly Configuration:
Standard
2nd Connector Number of Positions:
12
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
16.40' (5.00m)
1st Connector Gender:
Male Pins
standardLeadTime:
13 Weeks
1st Connector Type:
Receptacle, Right Angle
2nd Connector Shell Size - Insert:
M12
1st Connector Number of Positions:
12
Ingress Protection:
IP67 - Dust Tight, Waterproof
Color:
Black
Series:
M12
2nd Connector Orientation:
A
Cable Type:
Round
2nd Connector Number of Positions Loaded:
All
2nd Connector Gender:
Female Sockets
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99

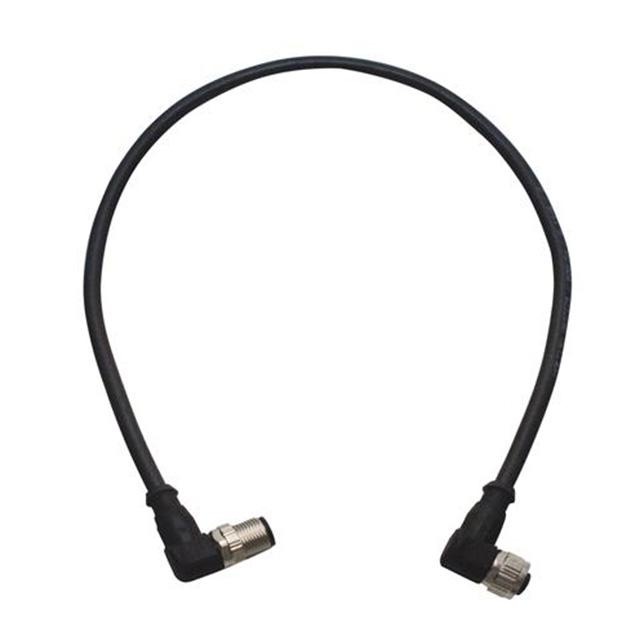

This is manufactured by HARTING. The manufacturer part number is 21348687C78050. Features 26 awg - American Wire Gauge. The product consists of 12 cores. Additionally, its connector 2 housing is of male gender . The product complies with all safety standards, such as iec 61076-2-101, iso/iec 11 801, iso/iec 24 702, rohs compliant. Moreover, this cable has a multicore shape. It is IP rated with ip67. Moreover, the product is unshielded . It has a maximum operating temperature of +80°c. The product has -30 → +80 °c of operating temperature range. The connector 1 has a right angle orientation. This connector 1 is a male. Its accurate length is 5m. The sheath is constructed from durable and adorable polyurethane pur material. Connector 2 is a male connector. On the other hand, the connector 2 has 12 contacts. The product 2134, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. There are 12 contacts on connector 1. The product is coded with a. The sheath has an adorable black colour. The product has 0.14 mm² cross section area. Whereas, the minimum operating temperature of the product is -30°c. While the Connector 2 is unterminated. Connector 1 is m12. This connector has a a orientation. The second integral connector has a free hanging (in-line) mounting configuration. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs3 compliant. The cable is constructed from highly durable polyurethane (pur) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with unshielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. In addition, it is reach unaffected. The second connector is the plug, right angle. The product is designed in a standard assembly configuration. The number of positions on the second connector are 12. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. Its accurate length is 16.40' (5.00m). The first connectors are male pins. It has a long 13 weeks standard lead time. receptacle, right angle is the first connector. The shell size of the second connector is m12. The first connector contains 12 positions. It is IP rated with ip67 - dust tight, waterproof. It has a classic black colour. The product m12, is a highly preferred choice for users. In addition, second connectors are available in a orientation. It is a typical round cable. While the loaded positions on the second connector are all. Second connectors come as female sockets. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.
