Current Rating:
4.0A
Mating Type:
A Coded
Mounting Type:
Cable Mount
IP Rating:
IP68
Series:
SACC
Body Orientation:
Straight
Voltage Rating:
30 V
Coding:
A
Contact Gender:
Female
Termination Method:
Screw
Housing Material:
Polymer
Plug/Socket:
Socket
Connector Size:
M8
Contact Plating:
Gold
Shell Size:
M8
Number of Contacts:
4
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-25°C
Contact Material:
Brass
HTSUS:
8536.69.4020
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
4
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Polyamide (PA66), Nylon 6/6
Shielding:
-
Cable Opening:
0.118" ~ 0.197" (3.00mm ~ 5.00mm)
Voltage Rating:
30VAC/DC
Current Rating (Amps):
4A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Shell Size - Insert:
M8-4
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Shell Material:
Brass
Termination:
Axial Pierce
standardLeadTime:
10 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6
Orientation:
A
Ingress Protection:
IP68 - Dust Tight, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Black, Silver
Series:
SACC
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99

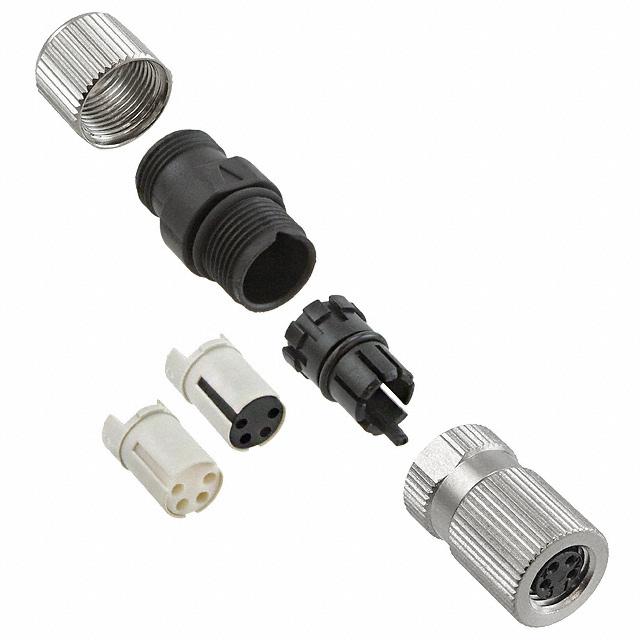

This is manufactured by Phoenix Contact. The manufacturer part number is 1506781. The product has a current rating of 4.0a. It is a type of a coded mating. The product is available in cable mount configuration. It is IP rated with ip68. The product sacc, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 30 v voltage rating. The product is coded with a. This female contact is widely suited for specific applications. It allows screw termination method. The product also features robust polymer housing material. It comprises a socket. The connector has m8 size. The high-quality gold is used as contact plating material. The shell has m8 size. The product contains 4 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -25°c. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 4. It has nice contact finishing of gold. The product is plated with reliable polyamide (pa66), nylon 6/6 material. Cable opening features include 0.118" ~ 0.197" (3.00mm ~ 5.00mm). Moreover, the product has a nominal 30vac/dc voltage rating. Additionally, the product's output is 4a. The basic product material is metal. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . The insert's size is m8-4. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. It is made from highly reliable brass materials. The product features axial pierce termination style. It has a long 10 weeks standard lead time. While it is also supplied with highly stable polyamide (pa66), nylon 6/6 insert material. The product has a a orientation. It is IP rated with ip68 - dust tight, waterproof. The splendid features of the product include backshell, coupling nut. The product is available in free hanging (in-line) configuration. The shell is an excellent finishing of nickel. It has a classic black, silver colour. The product is made from sturdy copper zinc materials. The product is designated with the ear99 code number.
