Number of Contacts:
5
Orientation:
Straight
IP Rating:
IP67
Connector Size:
7/8 in
Series:
SACC
Coding:
A
Contact Gender:
Male
Current:
9A
Plug/Socket:
Plug
Standards/Approvals:
CHINA RoHS, cUL, EF3.0, EU REACH SVHC, EU RoHS, UL, UL 94 HB
Voltage:
300 V
Contact Plating:
Nickel
Termination Type:
Screw

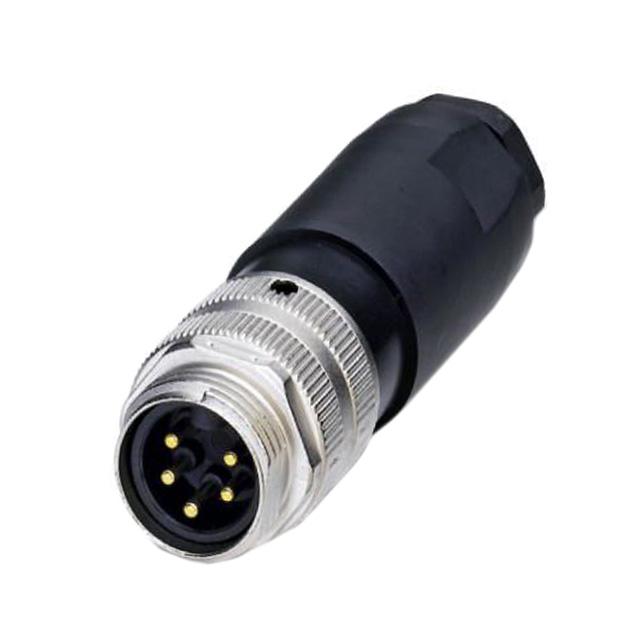

Product Type:
Circular Connector
Maximum Operating Temperature:
85°C
Minimum Operating Temperature:
-25°C
Contact Material:
Copper Zinc Alloy
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
300V
Mounting Feature:
-
Operating Temperature:
-25°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
5
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Polybutylene Terephthalate (PBT)
Shielding:
-
Cable Opening:
0.394" ~ 0.472" (10.00mm ~ 12.00mm)
Shell Material:
Zinc Die Cast
REACH Status:
REACH Affected
Current Rating (Amps):
9A
Applications:
-
Primary Material:
Metal
Material Flammability Rating:
UL94 HB
Package:
Bulk
Shell Size - Insert:
7/8"-5
Connector Type:
Plug, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
Termination:
Screw
standardLeadTime:
6 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6 and Polyurethane (PUR)
Orientation:
A
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Backshell
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Black, Silver
Series:
SACC
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
