Manufacturer : Hirose
Manufacturer Part No : RM12BPE-7PH(71)
Enrgtech Part No : ET10001524
Product Range : PolySwitch RXEF Series

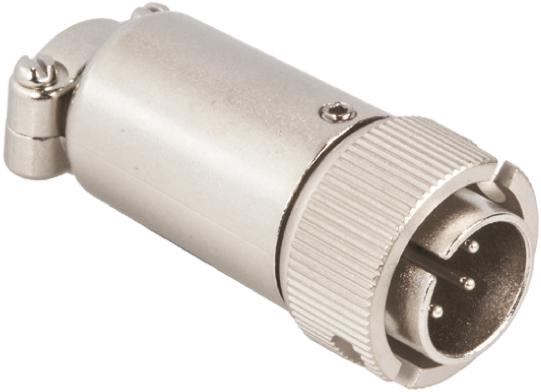

Hirose RM Series, 7 Pole Cable Mount Miniature Connector Plug, with Male Contacts

RM12B Connectors with Bayonet Sleeve RM12B circular connectors with a bayonet sleeve locking mechanism and a shell size of 12. These RM12B circular connectors have a nickel plated brass and zinc alloy shell and a synthetic resin insulator. Shell size 12 Note For strain relief, see Hirose JR range e.g stock no. 537-2401 . Hirose RM Range 10-way standard (15mm mating face dia.) connectors for video equipment. Consisting of cable or chassis mounting plugs and sockets with metal shells and solder type terminations. • A rugged miniaturized circular connector • Gives excellent mechanical and electrical performance HIROSE 15mm Circular Video Connectors (Threaded) technical specification Part name Material Finish Shell Brass and synthetic resin Nickel-plated Insulator Synthetic resin Male contact Copper alloy Silver plated Female contact Copper alloy Silver plated Insulation Resistance 1000MΩ min at 500 V dc Contact resistance at 1 A dc 14mΩ max Withstand voltage 1kV ac Humidity Meets MIL - std - 202 Body Material Diallyl Phthalate Cable diameter 8mm Colour Black

Product Information

Current Rating : 5.0A
Mating Type : Bayonet
Mounting Type : Cable Mount
Series : RM
Body Orientation : Straight
Termination Method : Clamp
Contact Gender : Male
Housing Material : Brass, Zinc
Plug/Socket : Plug
Connector Size : Miniature
Contact Plating : Silver
Shell Size : 12
Number of Contacts : 7
rohs : RoHS Certificate of Compliance
Contact Material : Copper

Technical Documents

  • RM Series Datasheet_EN (Technical Reference)

Availability:
155
in stock
Check now

Rate:
  • 1-4
    +
    £ 11.005
  • 5-9
    +
    £ 9.902
  • 10-24
    +
    £ 8.929

Qty:
