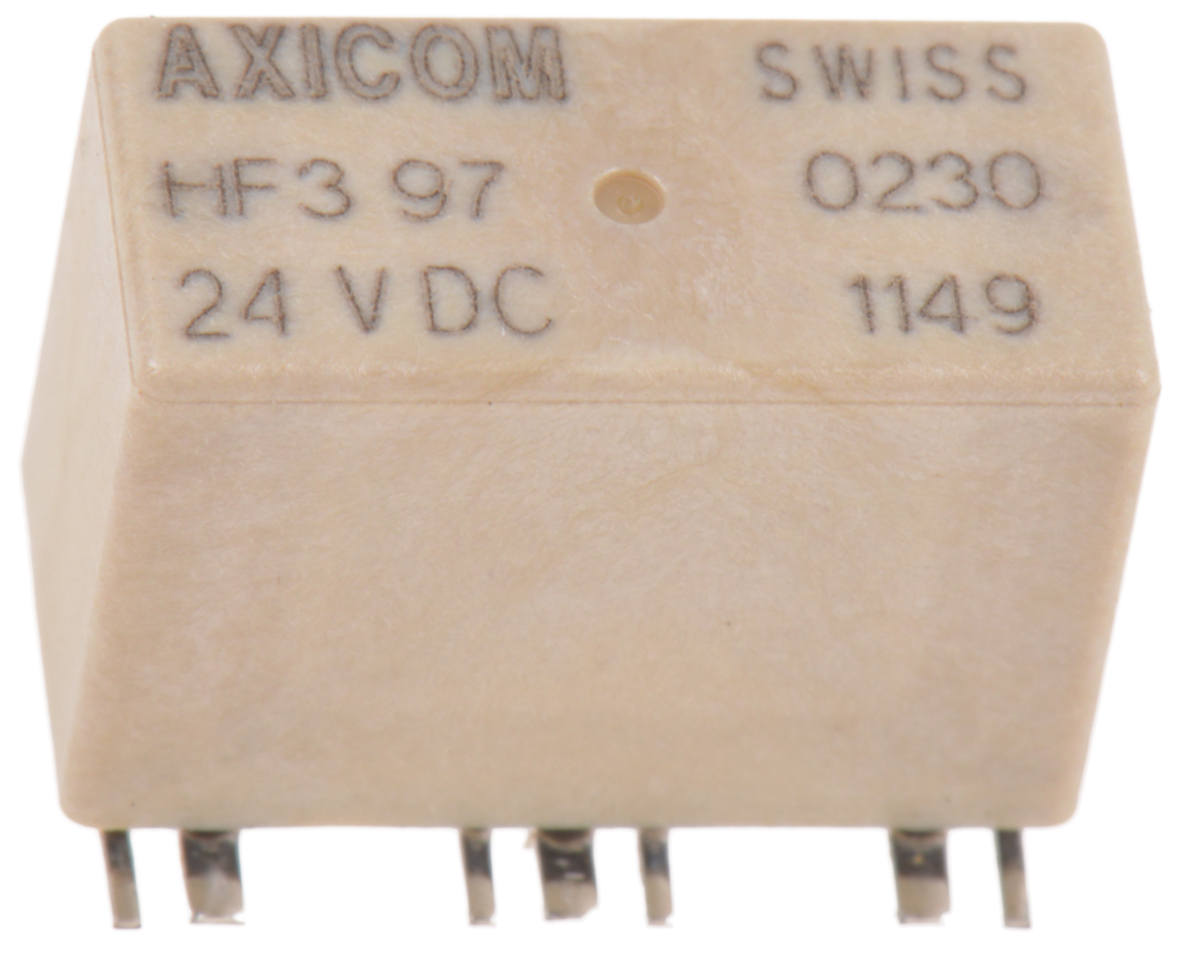

SPDT PCB Mount, High Frequency Relay 24V dc
Product Information
Dimensions:
14.6 x 7.2 x 10mm
Coil Voltage:
24V dc
Coil Resistance:
4114Ω
Standards Met:
RoHS Compliant
VSWR Voltage Standing Wave Ratio:
1.45 @ 900MHz
Switching Voltage:
220 V dc, 250V ac
Coil Power:
140mW
Impedance:
50 Ω, 75Ω
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Relay Type:
HF Relay
Operating Temperature Range:
-55 → +85°C
Isolation:
80dB
Contact Configuration:
SPDT
Length:
14.6mm
Special Features:
Wash Tight, Immersion Cleanable
Insertion Loss:
0.35dB
Mounting Type:
PCB Mount
Operating Time Including Bounce:
5ms
Depth:
7.2mm
Height:
10mm
Contact Current Rating:
2A
Minimum Operating Temperature:
-55°C
Contact Voltage:
220 V dc, 250V ac
Number of Poles:
1
Contact Material:
Gold Plated
Checking for live stock
FAQs
Yes. You can also search 1-1462051-5 on website for other similar products.
We accept all major payment methods for all products including ET13915760. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with 1-1462051-5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in HF & RF Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SPDT PCB Mount, High Frequency Relay 24V dc. You can also check on our website or by contacting our customer support team for further order details on SPDT PCB Mount, High Frequency Relay 24V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13915760 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13915760.
Yes. We ship 1-1462051-5 Internationally to many countries around the world.
This is SPDT PCB Mount High Frequency Relay 24V dc manufactured by TE Connectivity. The manufacturer part number is 1-1462051-5. The given dimensions of the product include 14.6 x 7.2 x 10mm. The coil voltage of the product is 24v dc. It holds up to 4114ω coil resistance. The product complies with all safety standards, such as rohs compliant. Additionally, it has 1.45 @ 900mhz VSWR voltage standing wave ratio . The product's switching voltage is 220 v dc, 250v ac. Robust coil power of 140mw. It has an impedance value of 50 ω, 75ω. It has a maximum operating temperature of +85°c. The terminal is a through hole type. This is basically a hf relay. The product has -55 → +85°c of operating temperature range. Features a 80db isolation. The contact is equipped with spdt configuration. Its accurate length is 14.6mm. The product also provides special features, such as wash tight, immersion cleanable. Allows 0.35db of insertion loss. The product is available in pcb mount configuration. Moreover, the product offers a 5ms operating time including bounce . The product comes in 7.2mm depth. In addition, the height is 10mm. The rated contact current is 2a. Whereas, the minimum operating temperature of the product is -55°c. Moreover, it has about 220 v dc, 250v ac contact voltage . It has equipped with 1 poles. The product is made from sturdy gold plated materials.
