HARTING 09200042711

Enrgtech Part No: ET12108071
|
Manufacturer Part No:
09200042711
|
Manufacturer: HARTING

Product Information

Minimum Wire Size mm²:

1.5mm²

Current Rating:

10A

Maximum Wire Size mm²:

0.75mm²

Mounting Type:

Panel Mount

IP Rating:

IP44

Gender:

Female

Body Orientation:

Straight

Voltage Rating:

230 V, 400 V

Pole Format:

4P+E

Termination Method:

Screw Down

Number of Rows:

Contact Plating:

Gold, Silver

Checking for live stock

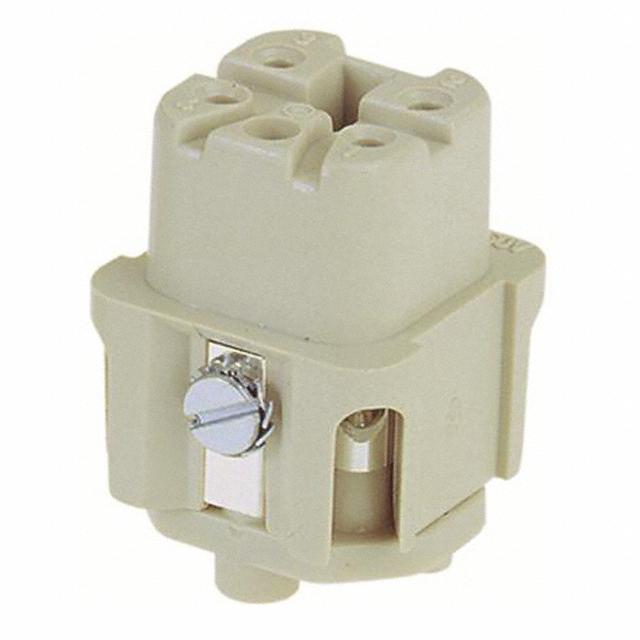

The HARTING 09200042711 is a robust 4-position female connector insert from the renowned Han A series, designed for heavy-duty industrial power and signal applications. Featuring a slim, space-saving construction and durable polycarbonate material, this insert provides four primary contacts plus a ground connection (4P+E). With a rated current of 10A and high-quality silver-plated contacts, it guarantees secure electrical performance and long-term reliability even in the most demanding mechanical environments.

Why Should You Buy the Product?

This HARTING 09200042711 connector insert is an industry-standard solution for creating modular, high-reliability connections that withstand harsh industrial conditions. Its screw termination method allows easy field assembly without specialised crimping tools.

Mechanical Resilience: Tested for over 500 mating cycles to ensure long-lasting durability.
High Performance: Silver-plated copper alloy contacts provide excellent conductivity and corrosion resistance.

Feature Highlights & Applications Areas

Key Features:
Compact Size 3A format suitable for slim housing requirements.
4-pin plus Ground (4P+E) configuration with screw-down termination.
Wide operating temperature range.
UL94 V-0 flammability rating for enhanced fire safety.
Rated for 230V/400V applications with a 10A current capacity.
Uses:
Industrial machinery and production line power distribution.
Robotics and automated control systems.
Power and signal connectivity in railway and transportation.
Modular panel building and electrical enclosure wiring.
