HARTING 09200030301

Enrgtech Part No: ET11251137
|
Manufacturer Part No:
09200030301
|
Manufacturer: HARTING

Heavy Duty Connector Housings, Hoods, Bases

Product Information

Mounting Type:

Bulkhead

IP Rating:

IP44, IP65, IP67

Series:

Han A

Manufacturer Size Code:

Number of Levers:

Type:

Connector Housing

Size:

Style:

Bottom Entry

HTSUS:

8538.90.8180

RoHS Status:

ROHS3 Compliant

Thread Size:

Operating Temperature:

-40°C ~ 125°C

Checking for live stock

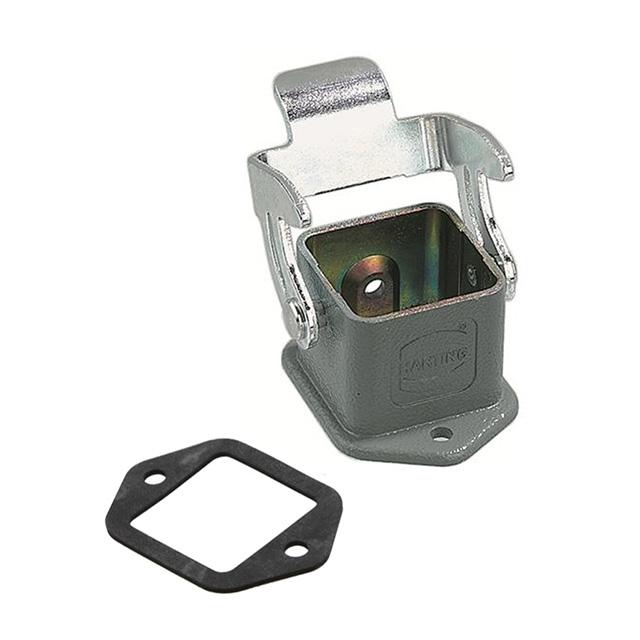

The HARTING 09200030301 is a premium Han 3A series bulkhead-mounted connector housing designed to provide superior protection for industrial electrical connections. Engineered from high-grade zinc die-cast material with a durable powder-coated finish, this low-profile component ensures a secure, space-saving interface. It features a robust single-lever locking mechanism that guarantees a stable connection even under vibration, making it a reliable choice for demanding automation and mechanical engineering projects worldwide.

What Makes Our Product Stand Out?

The HARTING 09200030301 connector housing offers unparalleled resilience with an IP67 rating, ensuring complete protection against dust and water ingress in harsh environments. The zinc die-cast construction provides exceptional mechanical stability while maintaining a lightweight, compact footprint.

High-grade zinc die-cast material for maximum durability.
Versatile IP44 to IP67 protection ratings.
User-friendly single-lever locking for quick maintenance.
Compact Han 3A size for space-constrained installations.

Core Performance Features & Key Uses

Technical Specifications

Material: Zinc die-cast with NBR sealing.
Locking Type: Single locking lever made of galvanised steel.
Temperature Range: Reliable operation from -40°C to +125°C.
Mounting: Bulkhead/panel mount with bottom entry.
Corrosion Resistance: Powder-coated surface (RAL 7037).

Suitable Environments

Industrial automation and control cabinets.
Heavy machinery and mechanical engineering setups.
Outdoor electrical installations requiring moisture protection.
Railway applications meeting EN 45545-2 fire safety standards.
