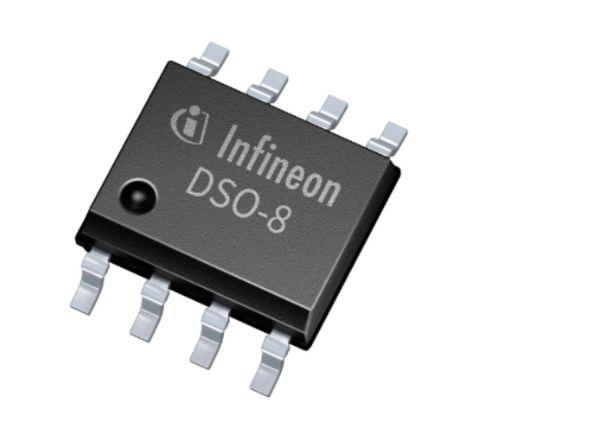

Infineon 2ED2183S06FXUMA1, 2.5 A, 20V 8-Pin, DSO

2ED2183S06FXUMA1 Infineon , 2.5 A, 20V 8-Pin, DSO
2ED2183S06FXUMA1 Infineon , 2.5 A, 20V 8-Pin, DSO
Infineon

Product Information

Output Current:
2.5 A
Package Type:
DSO
Supply Voltage:
20V
Pin Count:
8
Fall Time:
30ns
RoHs Compliant
Checking for live stock

The Infineon 2ED2183S06FXUMA1 is a powerful half-bridge gate driver IC, optimised for reliable switching of MOSFETs and IGBTs in UK industrial and automotive power electronics. Packed in a space-saving 8-pin DSO form, it delivers ±2.5 A peak output current with rapid 15 ns rise/fall times and operates up to 650 V (bootstrap-ready). Built on robust Silicon-on-Insulator (SOI) technology, it handles negative voltage transients without latch-up. With a 20 V supply and flawless switching performance, this driver is ideal for designers in harsh UK environments demanding compact, high-performance power control solutions.

Standout Features and Benefits of Choosing the Infineon 20V 8-Pin Gate Driver

  • High drive strength: ±2.5 A source/sink ensures fast, practical gate switching.
  • Rapid switching: 15 ns rise & fall times optimise performance.
  • SOI technology: Exceptional robustness to voltage spikes and noise, eliminating latch-up risks.
  • Integrated bootstrap diode: Simplifies circuit design and reduces component count.
  • High-voltage capability: Operates up to 650 V, accommodating demanding power stage requirements.

Product Application Potential

  • Industrial motor drives requiring reliable IGBT/MOSFET control
  • UK renewable energy systems, including solar inverters
  • Power supply stages in LED lighting and HVAC systems
  • Automotive onboard chargers & inverters needing compact switch control
  • Compact SMPS and power conversion platforms in electronics equipment

pdf icon
Datasheet - 2ED2183S06FXUMA1(Technical Reference)
