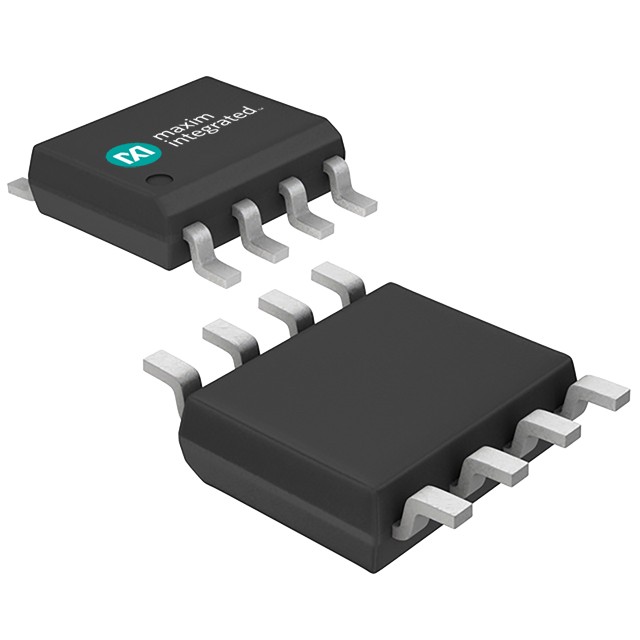

Maxim Integrated MAX22700DASA+
Product Information
Mounting Type:
Surface Mount
Number of Drivers:
1
Package Type:
SOIC
Pin Count:
8
Topology:
Isolated Gate Driver
Voltage - Output Supply:
13V ~ 36V
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Propagation Delay tpLH / tpHL (Max):
36ns, 36ns
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
CSA, cUL, UL
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ):
3.6ns, 1.8ns (Max)
Number of Channels:
1
Package:
Tube
Pulse Width Distortion (Max):
2ns
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Common Mode Transient Immunity (Min):
300kV/µs (Typ)
Voltage - Forward (Vf) (Typ):
-
standardLeadTime:
52 Weeks
Voltage - Isolation:
3000Vrms
Current - Output High, Low:
2.35A, 3.7A
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Current - Peak Output:
2.35A, 3.7A
Technology:
Capacitive Coupling
Base Product Number:
MAX22700
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MAX22700DASA+ on website for other similar products.
We accept all major payment methods for all products including ET20109195. Please check your shopping cart at the time of order.
You can order Maxim Integrated brand products with MAX22700DASA+ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Gate Drivers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Maxim Integrated MAX22700DASA+. You can also check on our website or by contacting our customer support team for further order details on Maxim Integrated MAX22700DASA+.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20109195 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Maxim Integrated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20109195.
Yes. We ship MAX22700DASA+ Internationally to many countries around the world.
This is manufactured by Maxim Integrated. The manufacturer part number is MAX22700DASA+. The product is available in surface mount configuration. Number of Drivers equals 1. The package is a sort of soic. It contains 8 pins. Topology includes isolated gate driver. Output supply voltage of 13v ~ 36v. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It has a maximum propagation delay of 36ns, 36ns. The product has -40°c ~ 125°c operating temperature range. It is approved by csa, cul, ul. Moreover, the product comes in 8-soic (0.154", 3.90mm width). The typical rise and fall time of the product is 3.6ns, 1.8ns (max). It is supplied with 1 channels. It is shipped in tube package . The maximum pulse width distortion is 2ns. Its typical moisture sensitivity level is 3 (168 hours). Allows a 300kv/µs (typ) of minimum common mode transient immunity. It has a long 52 weeks standard lead time. 3000vrms of isolation voltage. The high and low output current of the product is 2.35a, 3.7a. 8-soic is the supplier device package value. It carries 2.35a, 3.7a peak current output. This product use capacitive coupling technology. Moreover, it corresponds to max22700, a base product number of the product. The product is designated with the ear99 code number.
