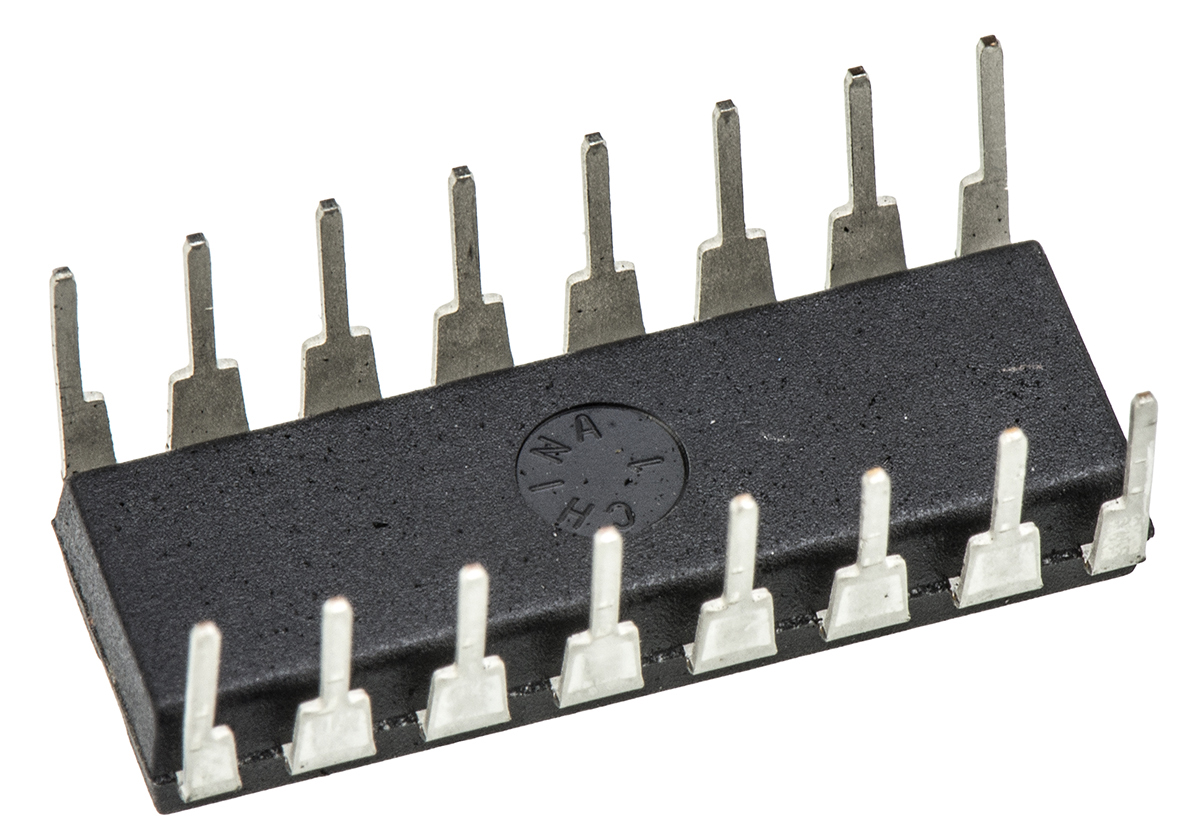

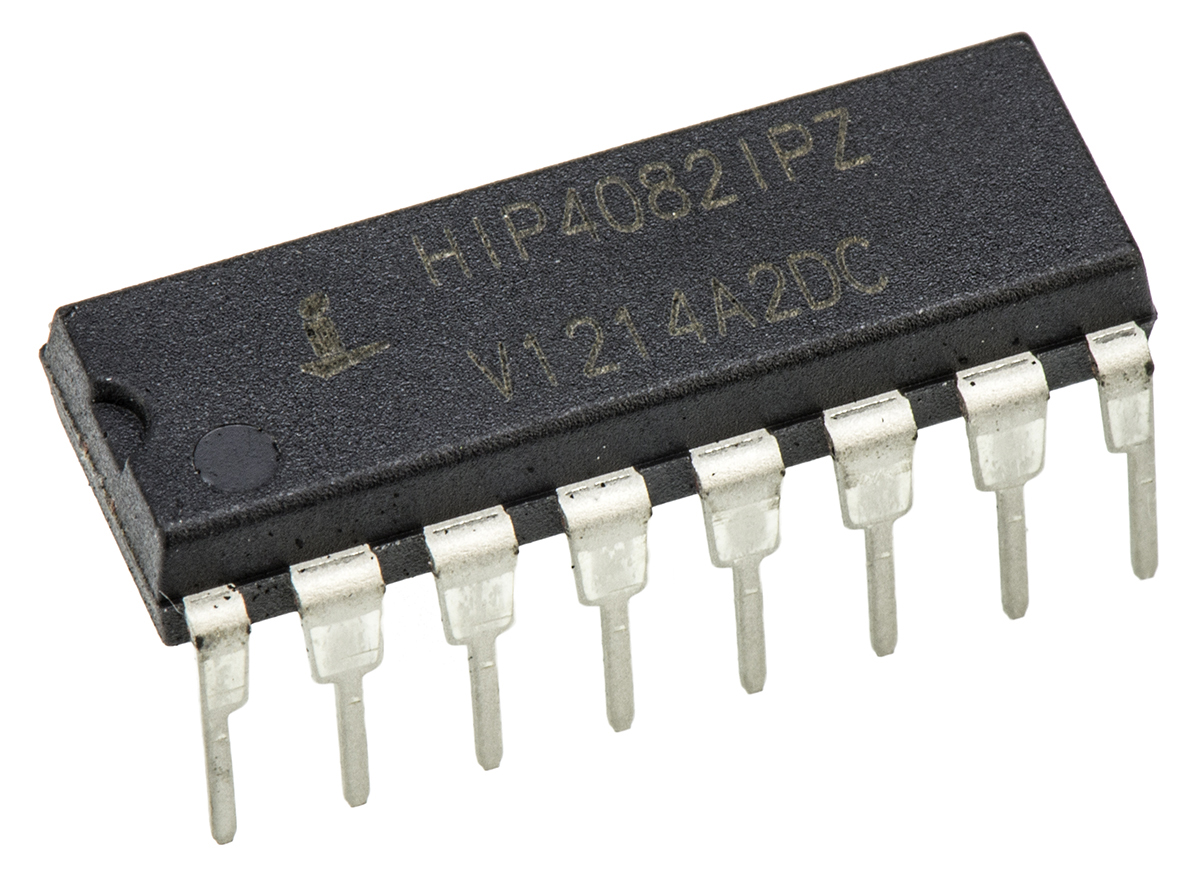

Renesas Electronics HIP4082IPZ Quad Full Bridge MOSFET Power Driver, 1.25A, 8.5 → 15 V 16-Pin, PDIP

HIP4082IPZ Renesas Electronics Quad Full Bridge MOSFET Power Driver, 1.25A, 8.5 → 15 V 16-Pin, PDIP
HIP4082IPZ
HIP4082IPZ Renesas Electronics Quad Full Bridge MOSFET Power Driver, 1.25A, 8.5 → 15 V 16-Pin, PDIP
Renesas Electronics

Product Information

Automotive Standard:
No
Number of Outputs:
4
Product Type:
MOSFET
Output Current:
1.25A
Mount Type:
Through Hole
Maximum Supply Voltage:
15V
Series:
HIP4082
Number of Drivers:
4
Height:
4.95mm
Width:
7.11 mm
Length:
19.68mm
Package Type:
PDIP
Driver Type:
MOSFET
Minimum Operating Temperature:
-55°C
Minimum Supply Voltage:
15V
Standards/Approvals:
No
Rise Time:
9ns
Maximum Operating Temperature:
125°C
Pin Count:
16
Fall Time:
9ns
RoHs Compliant
Checking for live stock

This is Quad Full Bridge MOSFET Power Driver 1.25A 8.5 → 15 V 16-Pin PDIP manufactured by Renesas Electronics. The manufacturer part number is HIP4082IPZ. The product complies with automotive standard - no. Additionally, the product is supplied with 4 outputs. mosfet is a versatile product designed to provide user-defined applications. It carries 1.25a output current. It has a through hole type mount . The product requires a maximum 15v supply voltage . The product hip4082, is a highly preferred choice for users. Number of Drivers equals 4. In addition, the height is 4.95mm. Furthermore, the product is 7.11 mm wide. Its accurate length is 19.68mm. The package is a sort of pdip. It has a/an mosfet type driver . Whereas, the minimum operating temperature of the product is -55°c. It has a minimum 15v supply voltage . Whereas, the rise time is 9ns . It has a maximum operating temperature of 125°c. It contains 16 pins. Its fall time is about 9ns .
