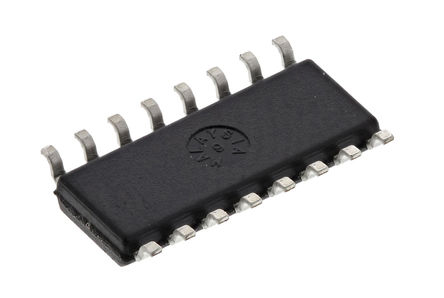

Renesas Electronics HIP4082IBZ Quad Full Bridge MOSFET Power Driver, 1.25A, 8.5 → 15 V 16-Pin, SOIC

HIP4082IBZ Renesas Electronics Quad Full Bridge MOSFET Power Driver, 1.25A, 8.5 → 15 V 16-Pin, SOIC
HIP4082IBZ
HIP4082IBZ Renesas Electronics Quad Full Bridge MOSFET Power Driver, 1.25A, 8.5 → 15 V 16-Pin, SOIC
Renesas Electronics

Product Information

Automotive Standard:
No
Number of Outputs:
4
Product Type:
MOSFET
Output Current:
1.25A
Mount Type:
Surface
Maximum Supply Voltage:
15V
Series:
HIP4082
Number of Drivers:
4
Height:
1.5mm
Width:
4 mm
Length:
10mm
Package Type:
SOIC
Driver Type:
MOSFET
Minimum Operating Temperature:
-55°C
Minimum Supply Voltage:
15V
Standards/Approvals:
No
Rise Time:
9ns
Maximum Operating Temperature:
125°C
Pin Count:
16
Fall Time:
9ns
RoHs Compliant
Checking for live stock

This is Quad Full Bridge MOSFET Power Driver 1.25A 8.5 → 15 V 16-Pin SOIC manufactured by Renesas Electronics. The manufacturer part number is HIP4082IBZ. The product complies with automotive standard - no. Additionally, the product is supplied with 4 outputs. mosfet is a versatile product designed to provide user-defined applications. It carries 1.25a output current. It has a surface type mount . The product requires a maximum 15v supply voltage . The product hip4082, is a highly preferred choice for users. Number of Drivers equals 4. In addition, the height is 1.5mm. Furthermore, the product is 4 mm wide. Its accurate length is 10mm. The package is a sort of soic. It has a/an mosfet type driver . Whereas, the minimum operating temperature of the product is -55°c. It has a minimum 15v supply voltage . Whereas, the rise time is 9ns . It has a maximum operating temperature of 125°c. It contains 16 pins. Its fall time is about 9ns .

pdf icon
HIP4082, 80V, 1.25A Peak Current H-Bridge FET Driver(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
