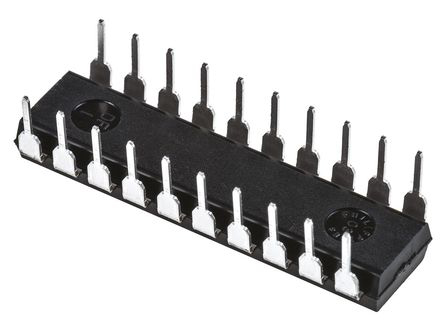

Renesas Electronics HIP4080AIPZ Quad Full Bridge MOSFET Power Driver, 2.5A, 9.5 to 15 V 20-Pin, PDIP

HIP4080AIPZ Renesas Electronics Quad Full Bridge MOSFET Power Driver, 2.5A, 9.5 to 15 V 20-Pin, PDIP
HIP4080AIPZ
Renesas Electronics

Product Information

Polarity:
Inverting, Non-Inverting
Number of Outputs:
4
Output Current:
2.5 A
Mounting Type:
Through Hole
Bridge Type:
Full Bridge
High and Low Sides Dependency:
Independent
Logic Type:
CMOS, TTL
Number of Drivers:
4
Package Type:
PDIP
Supply Voltage:
15V
Pin Count:
20
Topology:
Full Bridge
RoHs Compliant
Checking for live stock

This is Quad Full Bridge MOSFET Power Driver 2.5A 9.5 to 15 V 20-Pin PDIP manufactured by Renesas Electronics. The manufacturer part number is HIP4080AIPZ. While providing inverting, non-inverting polarity. Additionally, the product is supplied with 4 outputs. It carries 2.5 a output current. The product is available in through hole configuration. It contains a/an full bridge type bridge . In addition, it has a/an independent high and low sides dependency . The product is a cmos, ttl logic type. Number of Drivers equals 4. The package is a sort of pdip. Features 15v supply voltage. It contains 20 pins. Topology includes full bridge.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
HIP4080A, 80V/2.5A Peak, High Frequency Full Bridge FET Driver(Technical Reference)
