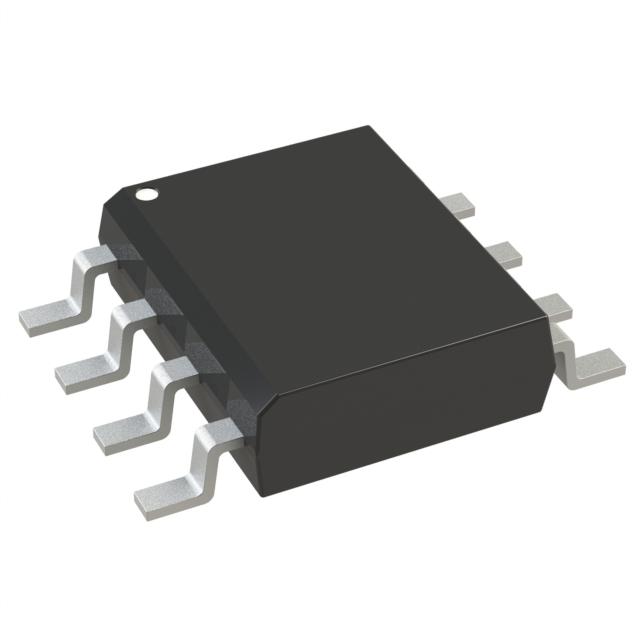

Diodes Incorporated DGD2106MS8-13
Product Information
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-40°C ~ 125°C (TA)
Input Type:
Non-Inverting
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Current - Peak Output (Source, Sink):
290mA, 600mA
Rise / Fall Time (Typ):
100ns, 35ns
REACH Status:
REACH Unaffected
Gate Type:
IGBT, N-Channel MOSFET
Package:
Tape & Reel (TR)
Channel Type:
Synchronous
High Side Voltage - Max (Bootstrap):
600 V
Logic Voltage - VIL, VIH:
0.6V, 2.5V
standardLeadTime:
8 Weeks
Driven Configuration:
Half-Bridge
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SO
Number of Drivers:
2
Voltage - Supply:
10V ~ 20V
Base Product Number:
DGD2106
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search DGD2106MS8-13 on website for other similar products.
We accept all major payment methods for all products including ET15914315. Please check your shopping cart at the time of order.
You can order Diodes Incorporated brand products with DGD2106MS8-13 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Gate Drivers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Incorporated DGD2106MS8-13. You can also check on our website or by contacting our customer support team for further order details on Diodes Incorporated DGD2106MS8-13.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15914315 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Diodes Incorporated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15914315.
Yes. We ship DGD2106MS8-13 Internationally to many countries around the world.
This is manufactured by Diodes Incorporated. The manufacturer part number is DGD2106MS8-13. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 125°c (ta) operating temperature range. It carries non-inverting input type. Moreover, the product comes in 8-soic (0.154", 3.90mm width). Features a peak output current of 290ma, 600ma. The typical rise and fall time of the product is 100ns, 35ns. In addition, it is reach unaffected. It is a igbt, n-channel mosfet gate. It is shipped in tape & reel (tr) package . The product is available in [Cannel Type] channel. The maximum high side voltage is 600 v . Logic voltage of 0.6v, 2.5v. It has a long 8 weeks standard lead time. It has a half-bridge driven configuration. The product is available in surface mount configuration. 8-so is the supplier device package value. Number of Drivers equals 2. It has optimum voltage supply of 10v ~ 20v. Moreover, it corresponds to dgd2106, a base product number of the product. The product is designated with the ear99 code number.
