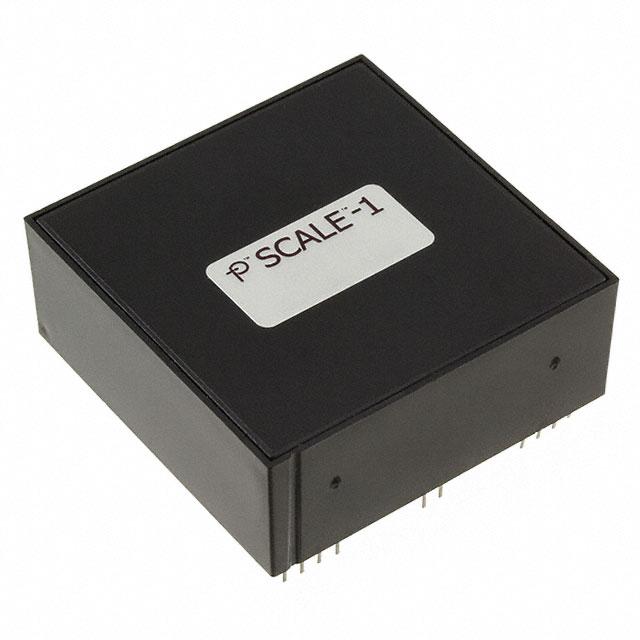

Power Integrations IGD515EI

IGD515EI Power Integrations
Power Integrations

Product Information

HTSUS:
8542.39.0001
Package / Case:
Module
Operating Temperature:
-40°C ~ 85°C (TA)
Input Type:
-
DigiKey Programmable:
Not Verified
Current - Peak Output (Source, Sink):
15A, 15A
Rise / Fall Time (Typ):
40ns, 40ns
REACH Status:
REACH Unaffected
Manufacturer:
Power Integrations
Gate Type:
IGBT, N-Channel, P-Channel MOSFET
Channel Type:
Single
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Logic Voltage - VIL, VIH:
0.9V, 3.8V
Driven Configuration:
High-Side or Low-Side
Mounting Type:
Through Hole
Series:
SCALE™-1
Supplier Device Package:
Module
Number of Drivers:
1
Packaging:
Bulk
Voltage - Supply:
12V ~ 16V
Base Product Number:
IGD515
ECCN:
EAR99
Checking for live stock

This is manufactured by Power Integrations. The manufacturer part number is IGD515EI. It is assigned with possible HTSUS value of 8542.39.0001. Moreover, the product comes in module. The product has -40°c ~ 85°c (ta) operating temperature range. Features a peak output current of 15a, 15a. The typical rise and fall time of the product is 40ns, 40ns. In addition, it is reach unaffected. The power integrations's product offers user-desired applications. It is a igbt, n-channel, p-channel mosfet gate. The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 1 (unlimited). Logic voltage of 0.9v, 3.8v. It has a high-side or low-side driven configuration. The product is available in through hole configuration. The product scale™-1, is a highly preferred choice for users. module is the supplier device package value. Number of Drivers equals 1. In addition, bulk is the available packaging type of the product. It has optimum voltage supply of 12v ~ 16v. Moreover, it corresponds to igd515, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Scale-1/-2 Solder Chg 3/Sep/2019(PCN Assembly/Origin)
pdf icon
IGD515EI(Datasheets)
pdf icon
Mult Devices 08/Dec/2017(PCN Packaging)
