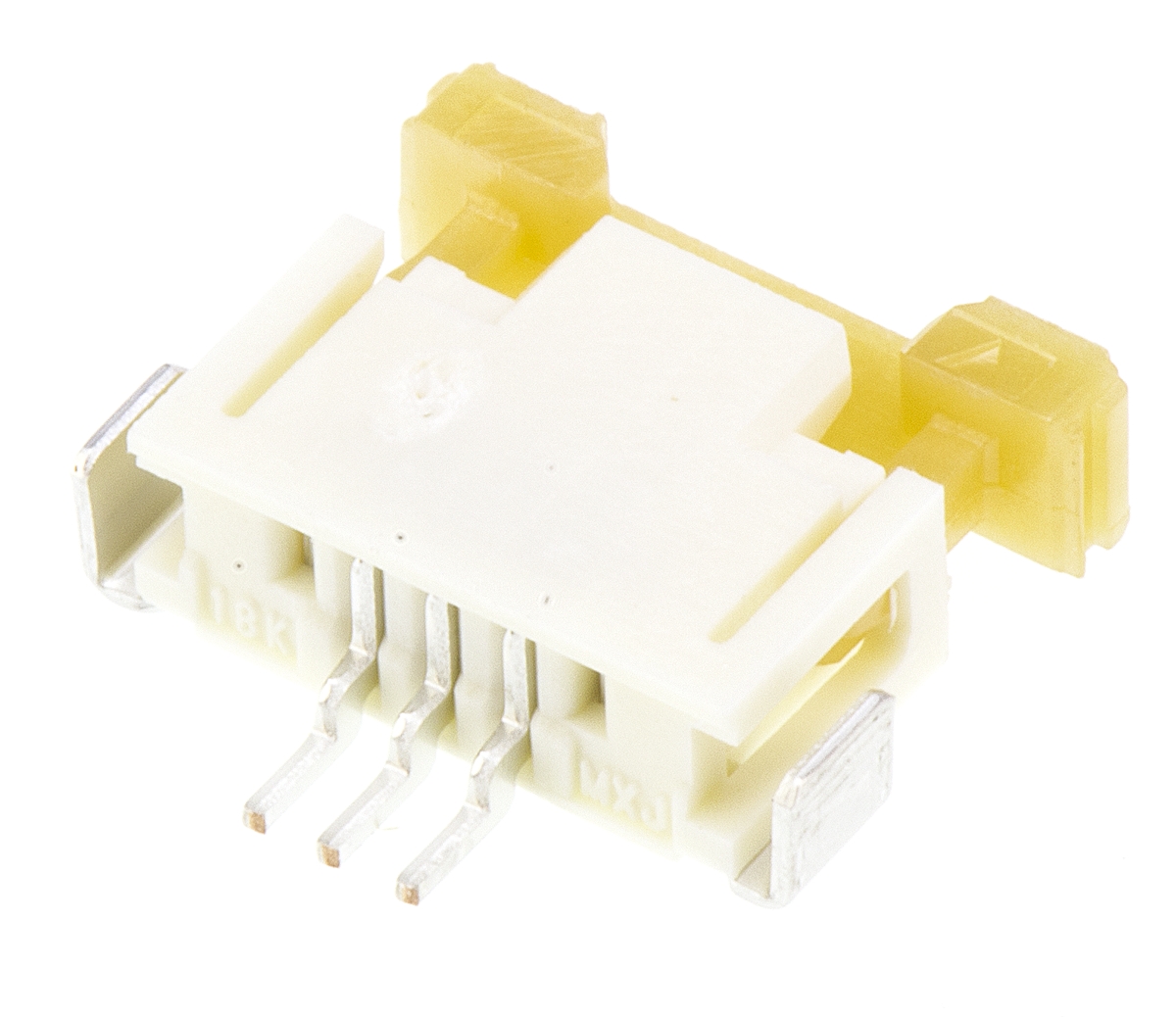

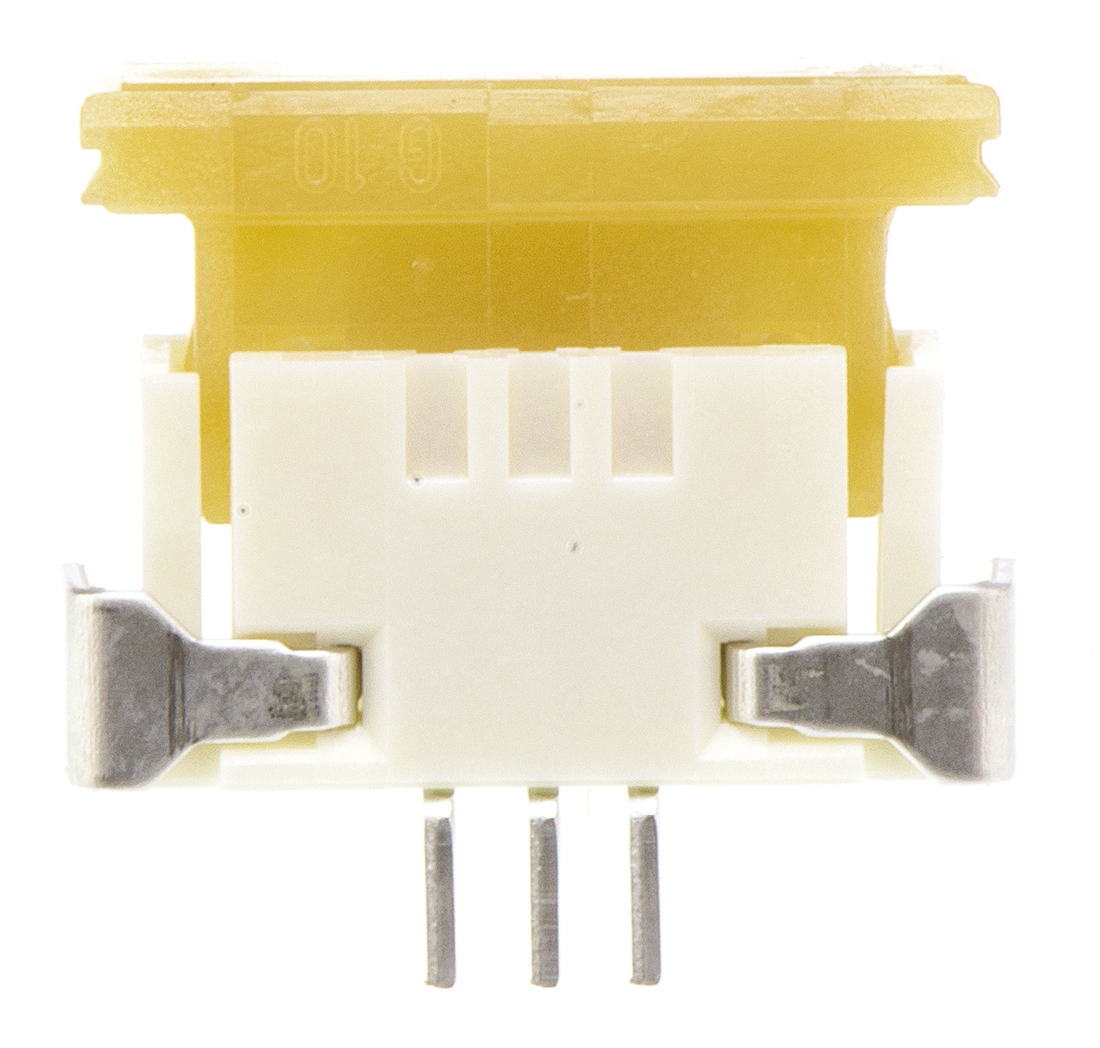

Molex 52207-0360, FFC/FPC SMT Series 1mm Pitch 3 Way Right Angle SMT Female FPC Connector, ZIF Top Contact
Product Information
The 52207-0360 designed by Molex is a compact yet powerful interconnect FFC/FPC connector, seamlessly combining flexibility and reliability for your electronic applications. Featuring a robust design and precision engineering, it effortlessly bridges the gap between space-saving requirements and high-performance connectivity.
Number of Contacts:
3
Current Rating:
1A
Termination Type:
ZIF Top Contact
Mounting Type:
Surface Mount
Voltage Rating:
125 V
Gender:
Female
Body Orientation:
Right Angle
Pitch:
1mm
Termination Method:
Solder
Housing Material:
Nylon
Number of Rows:
1
Contact Plating:
Gold over Nickel
Series:
FFC/FPC SMT
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-20°C
Series Number:
52207
HTSUS:
8536.69.4040
Package:
Tape & Reel (TR)
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 52207-0360 on website for other similar products.
We accept all major payment methods for all products including ET14022822. Please check your shopping cart at the time of order.
You can order Molex brand products with 52207-0360 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in FPC Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 52207-0360, FFC/FPC SMT Series 1mm Pitch 3 Way Right Angle SMT Female FPC Connector, ZIF Top Contact. You can also check on our website or by contacting our customer support team for further order details on Molex 52207-0360, FFC/FPC SMT Series 1mm Pitch 3 Way Right Angle SMT Female FPC Connector, ZIF Top Contact.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14022822 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14022822.
Yes. We ship 52207-0360 Internationally to many countries around the world.
The Molex, is a leading global electronic components and interconnect solutions manufacturer, offers the FFC/FPC SMT Series 1mm Pitch 3 Way Right Angle SMT Female FPC Connector with ZIF Top Contact. This compact connector is created to provide a dependable and efficient solution for adjustable flat cable (FFC) and flexible printed circuit (FPC) applications. Its 1mm pitch, suitable angle design, and ZIF top contact enable high-density routing, easy integration, and secure cable mating.
Key Features and Benefits of Molex 52207-0360, FFC/FPC SMT Series 1mm Pitch 3 Way Right Angle SMT Female FPC Connector:
The Molex FFC/FPC SMT Series 1mm Pitch 3 Way Right Angle SMT Female FPC Connector is compact, making it ideal for space-constrained applications. Its small form factor allows for efficient utilisation of PCB real estate while maintaining reliable connections.
The connector has a 1mm pitch, ensuring high-density signal routing in FFC and FPC applications. The precise pitch spacing increases signal integrity and reduces crosstalk, enabling superior performance in demanding applications.
The right-angle configuration of the connector allows for easy integration into PCB layouts, especially in tight spaces. It provides flexibility in design and facilitates efficient cable routing within the device, optimising overall system performance.
The ZIF (Zero Insertion Force) top contact feature of the connector enables easy and secure mating of FFC and FPC cables. This mechanism eliminates the need for additional force during cable insertion or removal, reducing the risk of damage to the cable or connector.
The Molex FFC/FPC SMT Series 1mm Pitch 3 Way Right Angle SMT Female FPC Connector ensures a reliable electrical connection. It features robust construction and high-quality materials, providing durability and long-term performance in various operating conditions.
The connector utilises Surface Mount Technology (SMT), permitting efficient and automated assembly operations. SMT allows high-speed, high-volume production while guaranteeing precise placement and soldering of the connector on the PCB, lessening manufacturing costs and enhancing overall productivity.
