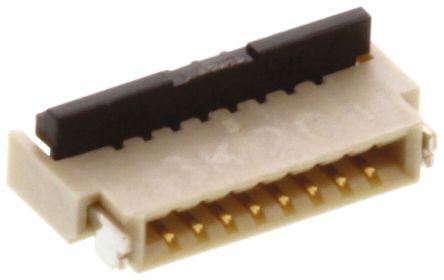

Hirose FH34S 0.5mm Pitch 8 Way Right Angle SMT Female FPC Connector, ZIF Top Contact

Enrgtech Part No: ET13881120
|
Manufacturer Part No:
FH34S-8S-0.5SH(50)
|
Manufacturer: Hirose

FH34S-8S-0-5SH-50- Hirose FH34S 0.5mm Pitch 8 Way Right Angle SMT Female FPC Connector, ZIF Top Contact

Product Information

Current Rating:

500mA

Termination Type:

ZIF Top Contact

Mounting Type:

Surface Mount

Voltage Rating:

50 V ac

Gender:

Female

Body Orientation:

Right Angle

Pitch:

0.5mm

Termination Method:

Solder

Housing Material:

Liquid Crystal Polymer, Polyamide

Number of Rows:

Contact Plating:

Gold

Series:

FH34S

Checking for live stock

The Hirose FH34S-8S-0.5SH(50) is an advanced Flexible Printed Circuit (FPC) connector, engineered for demanding, high-density applications. This 8-way, 0.5mm pitch component features a right-angle body orientation and Surface Mount Technology (SMT) design, making it ideal for compact device integration. It utilises a reliable ZIF (Zero Insertion Force) Top Contact mechanism to ensure secure, high-integrity electrical connection. Constructed with a robust Liquid Crystal Polymer housing and Gold-plated phosphor bronze contacts, this connector offers stable performance across a broad operating temperature range.

The Practical Benefits of the FH34S-8S-0.5SH(50) FPC Connector

This connector significantly boosts device reliability and assembly efficiency. Its ZIF mechanism allows for quick, damage-free FPC insertion, improving manufacturing throughput. The compact, low-profile SMT footprint saves valuable board space, while the durable materials ensure a stable, long-term connection with excellent electrical characteristics for miniaturised electronics.

Top Functional Highlights & Key Uses of the FPC Connector

ZIF Top Contact: Enables simple and reliable FPC insertion without force.
0.5mm Pitch, 8-Way: High-density, space-saving specification.
Surface Mount Technology (SMT): Optimised for automated PCB assembly.
Right Angle Orientation: Facilitates cable routing and low-profile stacking in enclosures.
Gold Contact Plating: Ensures superior electrical conductivity and corrosion resistance.
Key Use: Connecting display panels, cameras, and other peripherals in portable devices.

0.5mm Top Contact Back Flip Actuator FPC, FFC ZIF Connector - FH34(S) Series(Technical Reference)
