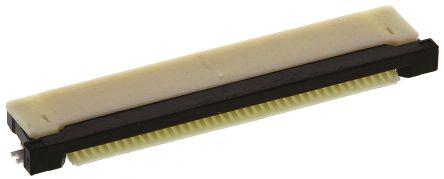

Amphenol FCI 62684-40110E9ALF

62684-40110E9ALF Amphenol FCI
62684-40110E9ALF
Amphenol FCI

Product Information

Current Rating:
500mA
Termination Type:
ZIF Bottom Contact
Mounting Type:
Surface Mount
Voltage Rating:
50 V ac/dc
Gender:
Male
Body Orientation:
Right Angle
Pitch:
0.5mm
Termination Method:
Solder
Housing Material:
Glass Fibre Reinforced Thermoplastic
Number of Rows:
1
Contact Plating:
Gold
Series:
OPU
Number of Contacts:
40
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-55°C
Contact Material:
Phosphor Bronze
Manufacturer Standard Lead Time:
12 Weeks
Detailed Description:
40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating:
0.5A
Housing Material:
Thermoplastic, Glass Filled
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.079" (2.00mm)
Actuator Color:
Black
Contact Finish Thickness:
2.00µin (0.051µm)
Number of Positions:
40
Locking Feature:
Slide Lock
Flat Flex Type:
FPC
Housing Color:
Beige
Standard Package:
500
Manufacturer:
Amphenol FCI
Voltage Rating:
50V
Material Flammability Rating:
UL94 V-0
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
OPU
FFC, FCB Thickness:
0.30mm
Packaging:
Tape & Reel (TR)
Pitch:
0.020" (0.50mm)
Actuator Material:
Thermoplastic, Glass Filled
Cable End Type:
Tapered
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is manufactured by Amphenol FCI. The manufacturer part number is 62684-40110E9ALF. The product has a current rating of 500ma. The product is designed with a zif bottom contact termination. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v ac/dc voltage rating. In addition, male is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 0.5mm. It allows solder termination method. The product also features robust glass fibre reinforced thermoplastic housing material. It comes in 1 of rows. The high-quality gold is used as contact plating material. The product opu, is a highly preferred choice for users. The product contains 40 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -55°c. The product is made from sturdy phosphor bronze materials. It has typical 12 weeks of manufacturer standard lead time. It features 40 position fpc connector contacts, bottom 0.020" (0.50mm) surface mount, right angle. The product has a current rating of 0.5a. The product also features robust thermoplastic, glass filled housing material. The product has -55°c ~ 85°c operating temperature range. It is 0.079" (2.00mm) high above board. The actuator has a classic black colour. It has 2.00µin (0.051µm) of contact finishing thickness. The product carries possible position value of 40. The product has a locking feature of slide lock. It is a flat flex fpc type. It has an integral beige housing colour. It is available in the standard package of 500. The amphenol fci's product offers user-desired applications. Moreover, the product has a nominal 50v voltage rating. It carries ul94 v-0 of material flammability rating. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It provides best efficiency with mating cycles of 20. It has built-in connector or contact of contacts, bottom. The splendid features of the product include solder retention, zero insertion force (zif). The product is available in surface mount, right angle configuration. The product has an FFC, FCB thickness of 0.30mm. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, the product is 0.020" (0.50mm). The actuator is designed from sturdy thermoplastic, glass filled material. The cable end is a type of tapered end.

pdf icon
FPC/FFC 0.5 mm OPU Series Connector - Drawing(Technical Reference)
pdf icon
62684 Drawing(Datasheets)
