Manufacturer : JST
Manufacturer Part No : 30FLZ-SM2-TB(LF)(SN)(P)
Enrgtech Part No : ET10001456
Product Range : PolySwitch RXEF Series

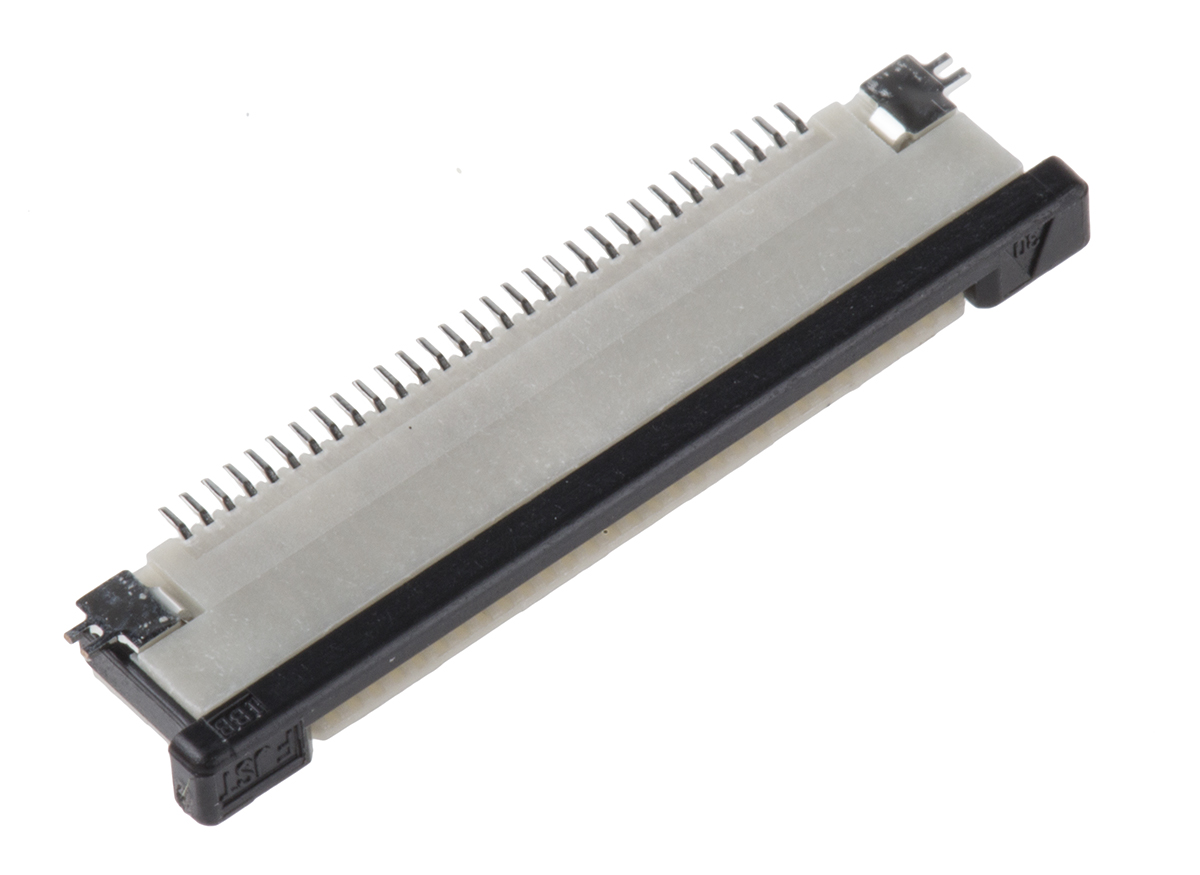

JST 0.5 mm FLZ Series FFC/FPC Connectors FLZ series FFC/FPC 0.5 mm pitch connectors with a compact space saving design. The height of these FLZ series FFC/FPC SMT connectors is just 2.00 mm above the PCB which allows interconnections to be made in tight spaces. These FLZ series 0.5 mm FFC/FPC connectors feature a zero insertion force (ZIF) mechanism which increases resistance to wear and extends the connector life. The connector housings are made from heat resistant plastic making the connector SMT reflow solder compatible. Inline surface mount tails allow easy inspection. These FLZ 0.5 mm FFC/FPC connectors are available with either normal or reverse configurations for design flexibility. Connectors with a normal configuration accept FFC/FPC with the mating surfaces facing upwards. Connectors with a reverse configuration accept FFC/FPC with the mating surfaces facing downwards. Features and Benefits Compact space saving design Zero insertion force mechanism for increased wear resistance Reflow solder compatible heat resistant thermoplastic housings Inline surface mount tails for easy inspection Available in normal and reverse configurations for design flexibility Note Part numbers xxFLZ-SM2-TB have a normal configuration. Part numbers xxFLZ-RSM2 have a reverse configuration 0.5mm FFC/FPC - JST

Product Information

Current Rating : 500mA
Termination Type : ZIF Top Contact
Mounting Type : Surface Mount
Voltage Rating : 50 V ac/dc
Gender : Female
Body Orientation : Right Angle
Pitch : 0.5mm
Locking Mechanism : Yes
Termination Method : Solder
Housing Material : PA 6T
Number of Rows : 1
Contact Plating : Tin
Series : FLZ
Number of Contacts : 30
Maximum Operating Temperature : +85°C
Minimum Operating Temperature : -25°C
rohs : RoHS Certificate of Compliance
Contact Material : Phosphor Bronze

Technical Documents

  • Datasheet (Technical Reference)
