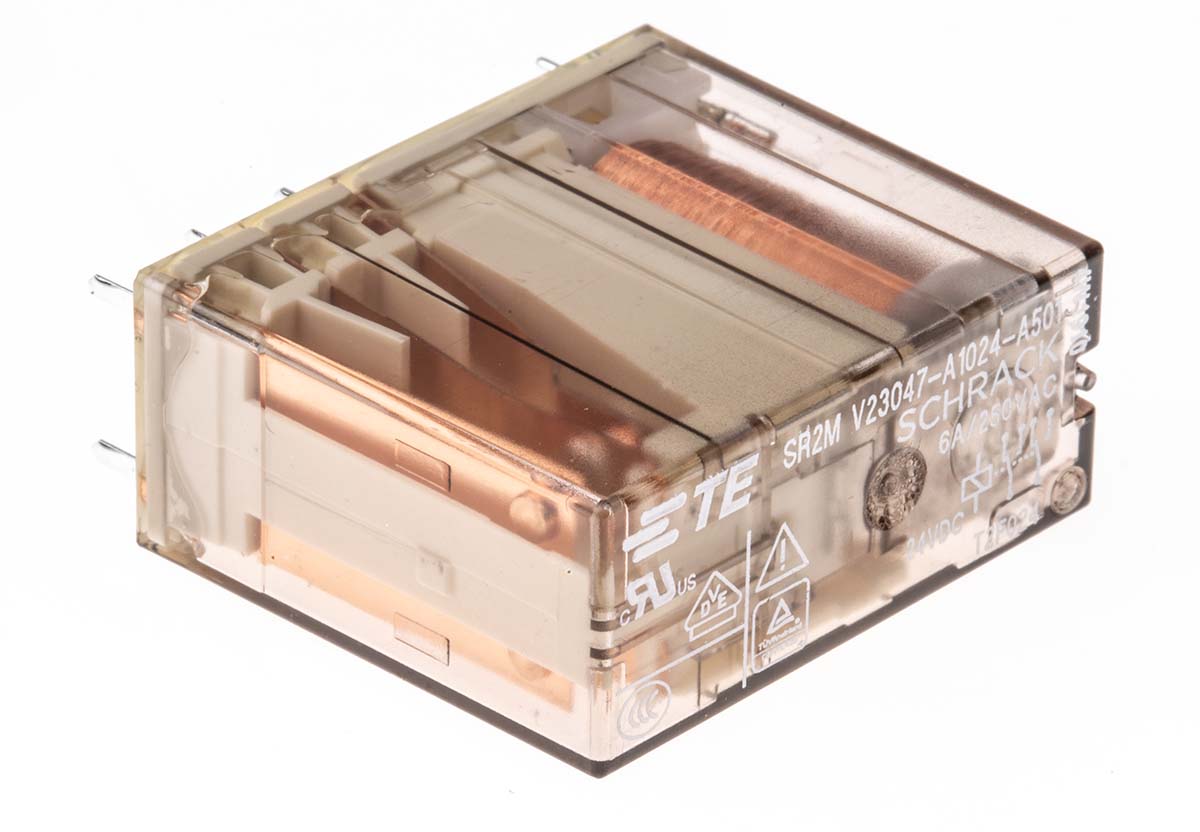

TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 6 A

V23047-A1024-A501-1-1393258-5 TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 6 A
V23047-A1024-A501 1-1393258-5
V23047-A1024-A501 1-1393258-5
TE Connectivity

Product Information

Maximum Operating Temperature:
+70°C
Mounting Type:
PCB Mount
Coil Power:
700mW
Series:
SR2M
Switching Current:
6A
Coil Voltage:
24V dc
Length:
29mm
Height:
25.5mm
Maximum Switching Current AC:
6 A
Depth:
12.6mm
Maximum Switching Voltage AC:
400V
Minimum Operating Temperature:
-25°C
Maximum Switching Power AC:
1.5 kVA
Contact Configuration:
DPDT
Isolation Coil To Contact:
4kV rms
Contact Material:
Silver Alloy
Number of Poles:
2
Terminal Type:
Through Hole
Coil Resistance:
823Ω
RoHs Compliant
Checking for live stock

This is DPDT Non-Latching Relay PCB Mount 24V dc Coil 6 A manufactured by TE Connectivity. The manufacturer part number is V23047-A1024-A501 1-1393258-5. It has a maximum operating temperature of +70°c. The product is available in pcb mount configuration. Robust coil power of 700mw. The product sr2m, is a highly preferred choice for users. It is integrated with 6a switching current. The coil voltage of the product is 24v dc. Its accurate length is 29mm. In addition, the height is 25.5mm. It has a maximum 6 a switching current AC . The product comes in 12.6mm depth. It has a maximum AC switching voltage of 400v. Whereas, the minimum operating temperature of the product is -25°c. It also features an AC switching power of 1.5 kva. The contact is equipped with dpdt configuration. The product has 4kv rms isolation coil to contact. The product is made from sturdy silver alloy materials. It has equipped with 2 poles. The terminal is a through hole type. It holds up to 823ω coil resistance.

pdf icon
Datasheet(Technical Reference)
pdf icon
UL E214024(Technical Reference)
pdf icon
Force Guided Relay SR2M Datasheet(Technical Reference)
pdf icon
TUV 945EZ 11699(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search V23047-A1024-A501 1-1393258-5 on website for other similar products.
We accept all major payment methods for all products including ET16721191. Please check your shopping cart at the time of order.
You can order TE Connectivity brand products with V23047-A1024-A501 1-1393258-5 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Force Guided Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 6 A. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity DPDT Non-Latching Relay PCB Mount, 24V dc Coil, 6 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16721191 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16721191.
Yes. We ship V23047-A1024-A501 1-1393258-5 Internationally to many countries around the world.
