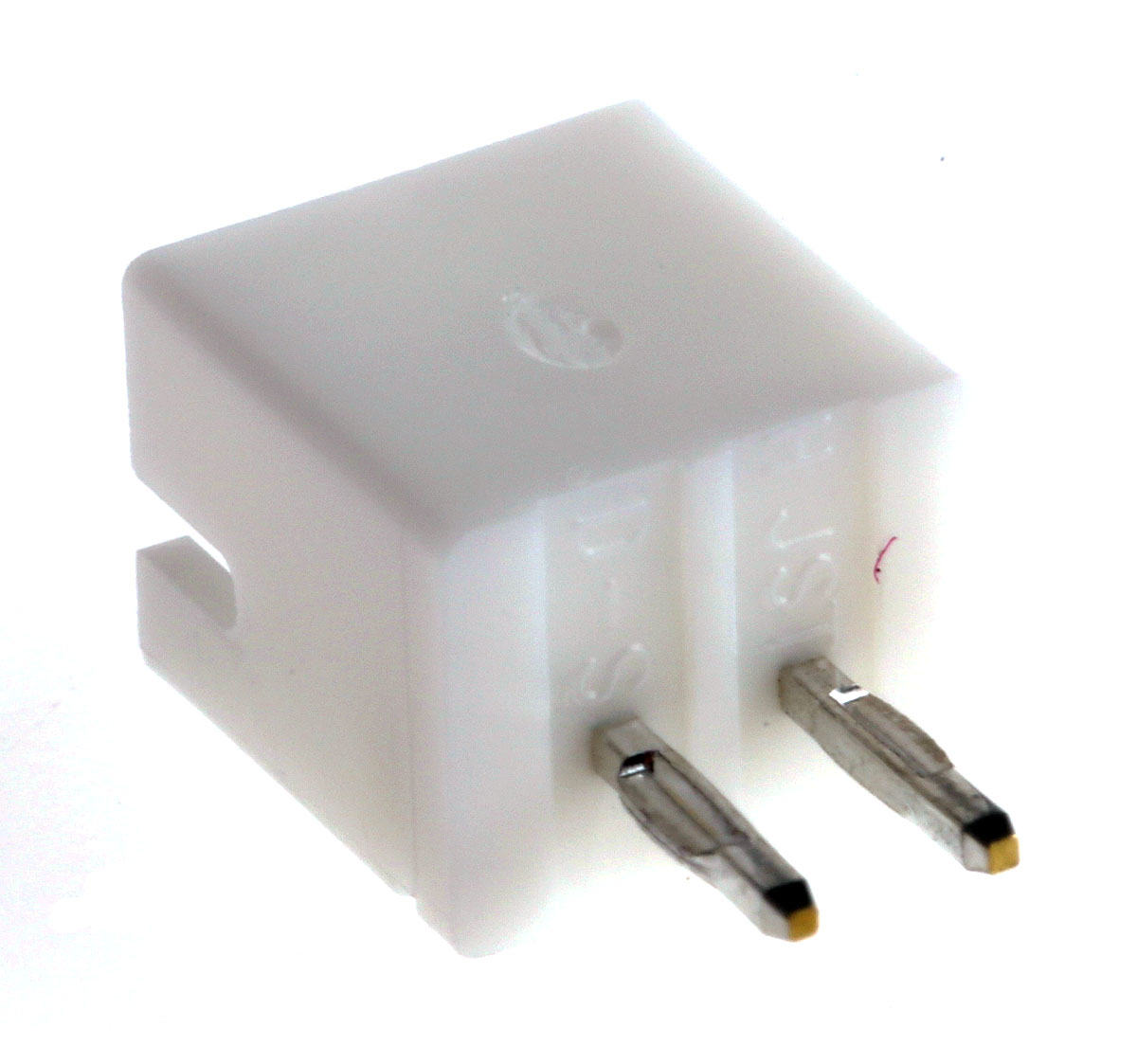

JST PH B2B, 2mm Pitch, 2 Way, 1 Row, Straight PCB Header, Through Hole

Enrgtech Part No: ET14157455
|
Manufacturer Part No:
B2B-PH-K-S(LF)(SN)
|
Manufacturer: JST

B2B-PH-K-S-LF--SN- JST PH B2B, 2mm Pitch, 2 Way, 1 Row, Straight PCB Header, Through Hole

Product Information

Shrouded/Unshrouded:

Shrouded

Row Pitch:

2mm

Housing Material:

Polyamide

Connector System:

Wire-to-Board

Number of Rows:

Contact Plating:

Tin

Product Type:

PCB Header

Maximum Operating Temperature:

85°C

Minimum Operating Temperature:

-25°C

Contact Gender:

Male

Standards/Approvals:

Mount Type:

Through Hole

Checking for live stock

The B2B-PH-K-S(LF)(SN) is a low-profile, shrouded pin PCB header designed by JST for reliable wire-to-board connections on Printed Circuit Boards (PCBs). Part of the compact PH Series, this straight-through-hole component features a fine 2.0 mm pitch and 2 contacts, making it ideal for high-density electronic equipment with restricted space. It offers a secure, simple solution for creating internal wiring connections across various industrial applications, ensuring stable signal transmission with its tin-plated brass contacts.

Why Choose the JST B2B-PH-K-S(LF)(SN) PCB Header? - The Benefits

Opting for the PCB header provides high reliability in a minimal footprint. Its fully shrouded design prevents misalignment or accidental damage during assembly and operation. The through-hole mounting provides a strong mechanical connection to the PCB, which is crucial for stability in demanding environments.

Key Features & Suitable Environments of the PH Series PCB Header

Key Features:
- 2.0 mm pitch for high-density board applications.
- Fully shrouded (4-wall box) design to prevent flux intrusion and improper mating.
- Through-hole mounting for robust PCB retention.
- Equipped with a detent lock for secure mating with the housing.
- Low-profile design with a 6.0 mm insulation height.
- Tin-plated brass contacts ensure reliable electrical connectivity.
- Wide operating temperature range.
Suitable Environments:
- High-density PCB applications where space is limited.
- Industrial control systems and equipment.
- Compact electronic devices requiring secure wire-to-board connections.
- Environments needing resistance to moderate temperature variations.

PH Series Wire to Board 2.0mm pitch Connector - Catalogue Pages(Technical Reference)
