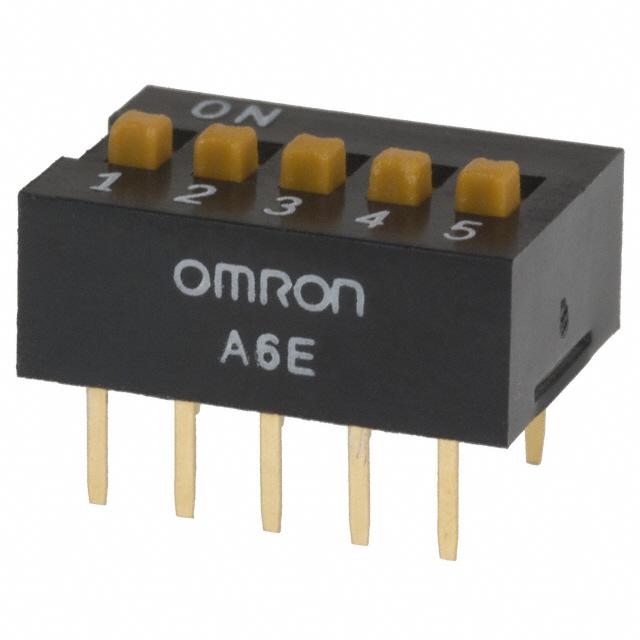

Omron Electronics Inc-EMC Div A6E-5104-N

Enrgtech Part No: ET12744267
|
Manufacturer Part No:
A6E-5104-N
|
Manufacturer: Omron Electronics Inc-EMC Div

A6E-5104-N Omron Electronics Inc-EMC Div

(0)

Product Information

The Omron Electronics Inc-EMC Div A6E-5104-N is a superior-quality electronic DIP switch that provides excellent control in diverse applications. Its robust construction and user-friendly interface make it a key element in various electronic systems.

Washable:

HTSUS:

8536.50.9065

RoHS Status:

ROHS3 Compliant

Electrical Life:

1,000 Cycles

Termination Style:

PC Pin

Operating Temperature:

-20°C ~ 70°C

Height Above Board:

0.277" (7.05mm)

Mechanical Life:

1,000 Cycles

Number of Positions:

Actuator Level:

Raised

Voltage Rating:

24VDC

REACH Status:

REACH Unaffected

Checking for live stock

Omron Electronics Inc-EMC Div is a renowned company specialising in electronic components and systems. One of their unique products is the A6E-5104-N, which is a slide DIP switch. This switch is designed to provide a reliable and efficient solution for electronic circuits that require simple on/off settings or configuration changes. Its SPST configuration, low current rating, and compatibility with various voltage levels make it an ideal choice for consumer electronics and industrial applications.

Features of Omron Electronics Inc-EMC Div A6E-5104-N Include:

SPST Configuration: The A6E-5104-N is a Single Pole Single Throw (SPST) switch with one input and one output terminal. This configuration allows for straightforward on/off functionality.
Slide DIP Design: The switch features a slide Dual In-line Package (DIP) design, which enables easy operation and integration onto printed circuit boards. This design is handy in applications where manual control is required.
Low Power Consumption: The A6E-5104-N operates at a low current rating of 25mA, making it suitable for power-sensitive applications. This ensures efficient power usage and helps extend the switch's overall lifespan.
Voltage Rating: The switch has a voltage rating of 24V, allowing it to be compatible with a wide range of electronic systems. This flexibility makes it suitable for various industrial and consumer electronics applications.
Reliable Performance: Omron is known for its high-quality products, and the A6E-5104-N is no exception. It offers excellent durability with a long operating life, ensuring reliable performance even in demanding environments.

Application Potential of the Omron A6E-5104-N Switch:

The Omron A6E-5104-N switch finds application in several areas, including:

Consumer Electronics: The switch can be utilised in audio/video equipment, home appliances, gaming devices, and other consumer electronics that require simple control settings.
Industrial Control Systems: It is suitable for industrial control panels, programmable logic controllers (PLCs), and automation systems where manual configuration changes are necessary.
Automotive Electronics: The A6E-5104-N can be incorporated into automotive systems, such as infotainment units or interior lighting controls.

A6E-N Series Datasheet(Datasheets)

How to Read Date Codes(Other Related Documents)

A6E-N Resin Application Jan/2017(PCN Design/Specification)

DIP Switch Design Chg Apr/2023(PCN Design/Specification)
