AC or DC Output Voltage:
dc
Output Current:
3.125A
Series:
DRL
AC or DC Input Voltage:
ac
Height:
123.6mm
Width:
27mm
Depth:
102mm
Input Voltage:
85 → 264V ac
Output Voltage:
24V dc
Power Rating:
75W
Type:
DIN Rail Power Supply
HTSUS:
8504.40.9520
RoHS Status:
ROHS3 Compliant
Voltage - Output 1:
24V
Power (Watts):
75W
Current - Output (Max):
3.125A
Approval Agency:
CB, CCC, CE, cTUVus, TUV, UKCA
Input Type:
AC or DC
Applications:
ITE (Commercial), Laboratory
Voltage - Output 4:
-
Voltage - Output 5:
-
Voltage - Output 6:
-
REACH Status:
REACH Affected
Voltage - Output 2:
-
Voltage - Output 3:
-
Efficiency:
89%
DC Voltage - Input (Max):
375V
Package:
Box
DC Voltage - Input (Min):
120V
Minimum Load Required:
-
Size / Dimension:
4.87" L x 1.06" W x 4.02" H (123.7mm x 26.9mm x 102.1mm)
standardLeadTime:
32 Weeks
Voltage - Isolation:
3 kV
AC Voltage - Input:
85 ~ 264 VAC
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Adjustable Output, PFC, Universal Input
Series:
DRL (75W)
Operating Temperature:
-20°C ~ 70°C (With Derating)
Standard Number:
60950-1; 61010-1; 62368-1
Number of Outputs:
1
ECCN:
EAR99

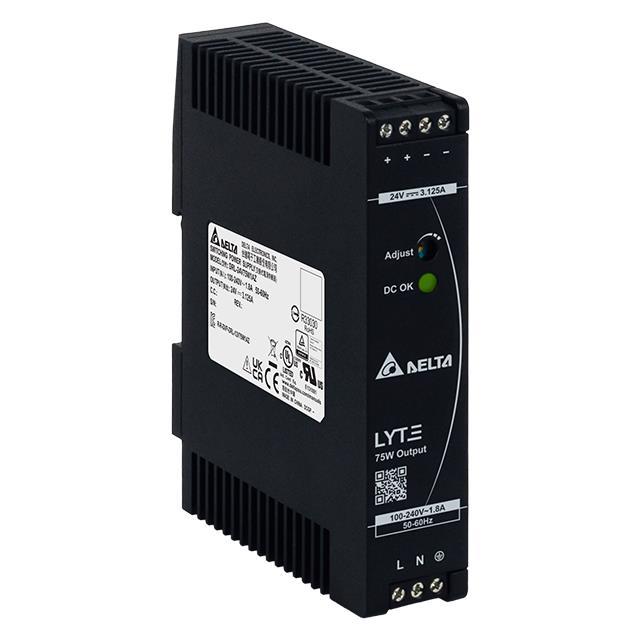

This is DRL DIN Rail Power Supply 85 → 264V ac Input 24V dc Output 3.125A 75W manufactured by Delta Electronics. The manufacturer part number is DRL-24V75W1AZ. It has a/an dc output voltage . It carries 3.125a output current. The product drl, is a highly preferred choice for users. It has ac input voltage. In addition, the height is 123.6mm. Furthermore, the product is 27mm wide. The product comes in 102mm depth. Its input voltage is 85 → 264v ac. Features a 24v dc output voltage. Feature 75w of power rating. It comes in din rail power supply configuration. It is assigned with possible HTSUS value of 8504.40.9520. The product is rohs3 compliant. It has a 24v output voltage. The product features power and watts of 75w. The maximum product's output current is 3.125a. It is approved by cb, ccc, ce, ctuvus, tuv, ukca. It carries ac or dc input type. The product is widely employed in ite (commercial), laboratory. In addition, it is reach affected. It is a highly efficient product with an 89% of high efficiency. It has 375v of maximum DC input voltage. It is shipped in box package . While the minimum DC input voltage is 120v. The product's diameters include 4.87" l x 1.06" w x 4.02" h (123.7mm x 26.9mm x 102.1mm). It has a long 32 weeks standard lead time. 3 kv of isolation voltage. The product has an AC input voltage range of 85 ~ 264 vac. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include adjustable output, pfc, universal input. The product drl (75w), is a highly preferred choice for users. The product has -20°c ~ 70°c (with derating) operating temperature range. Standard number include: 60950-1; 61010-1; 62368-1. Additionally, the product is supplied with 1 outputs. The product is designated with the ear99 code number.
