Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac, dc
Width:
72mm
MTBF:
>1300000h
Electrical Phase:
1
Type:
DIN Rail Power Supply
Load Regulation:
0.5%
Standards Met:
CB Scheme, cCSAus, CE, cULus, cUS Recognised, EN 50022-35X15/7.5, EN 50178, EN 55022, EN 60204, EN 61000-6-2, EN 61000-6-3, EN 61204-3, EN 61558-2-16, EN 61558-2-8, IEC 61000-3-2, IEC/EN 60335-1, IEC/EN 60529, IEC/EN 60950-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62477, IP20, NEC, SI, UL 1310, UL 508, UL 60950-1, UL 94 V-0
Efficiency:
87%
Input Voltage:
85 → 264 V ac / 90 → 375V dc
Number of Outputs:
1
Output Voltage Adjustment Range:
48 → 56V
Ripple And Noise:
100mV Pk-Pk
Depth:
110mm
Special Features:
Adjustable Output Voltage, Low Output Ripples & Noise, Power Good Signal
Mounting Type:
DIN Rail Mount
Output Current:
2.5A
Series:
TPC
Height:
90mm
Output Voltage:
48V dc
Power Rating:
120W

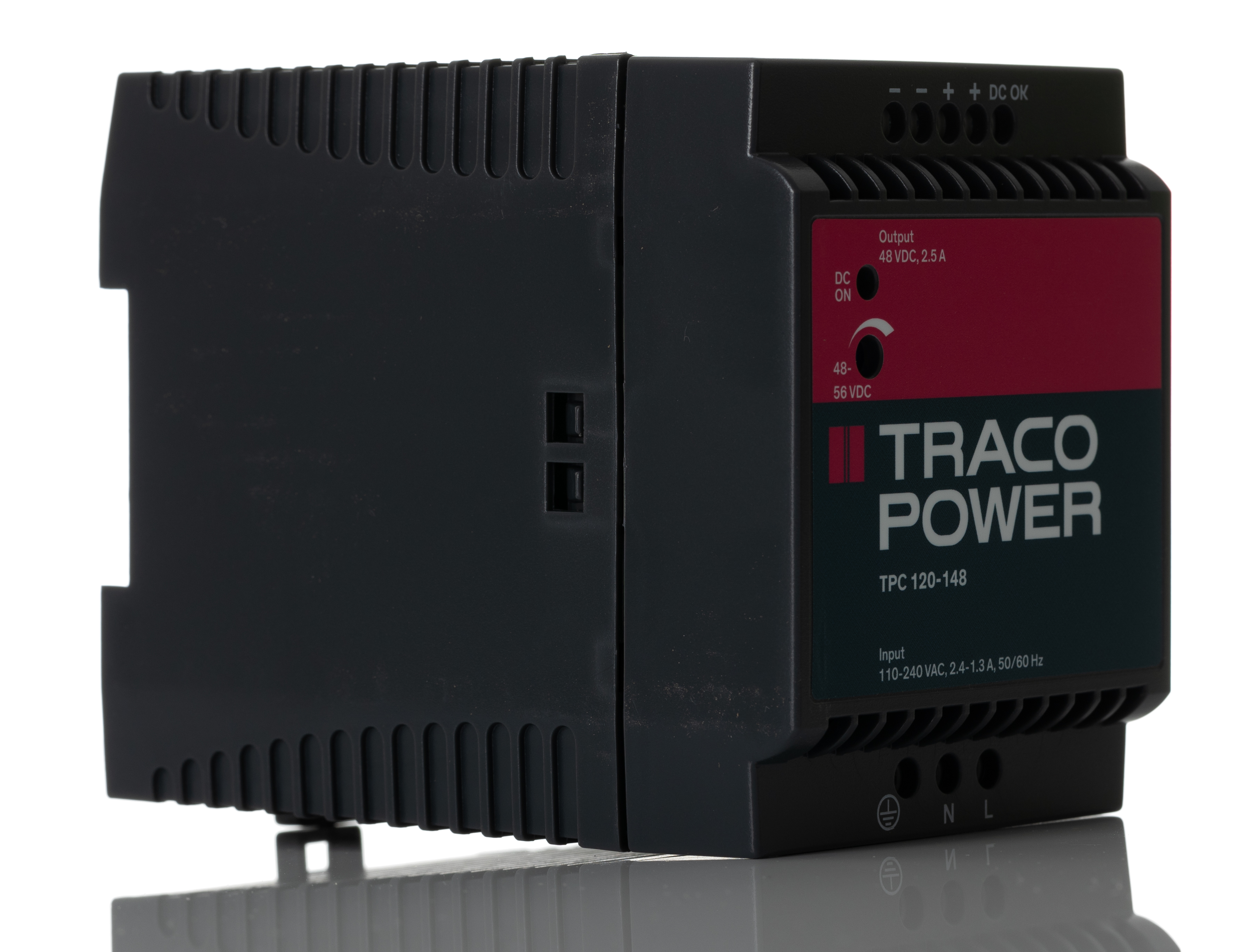

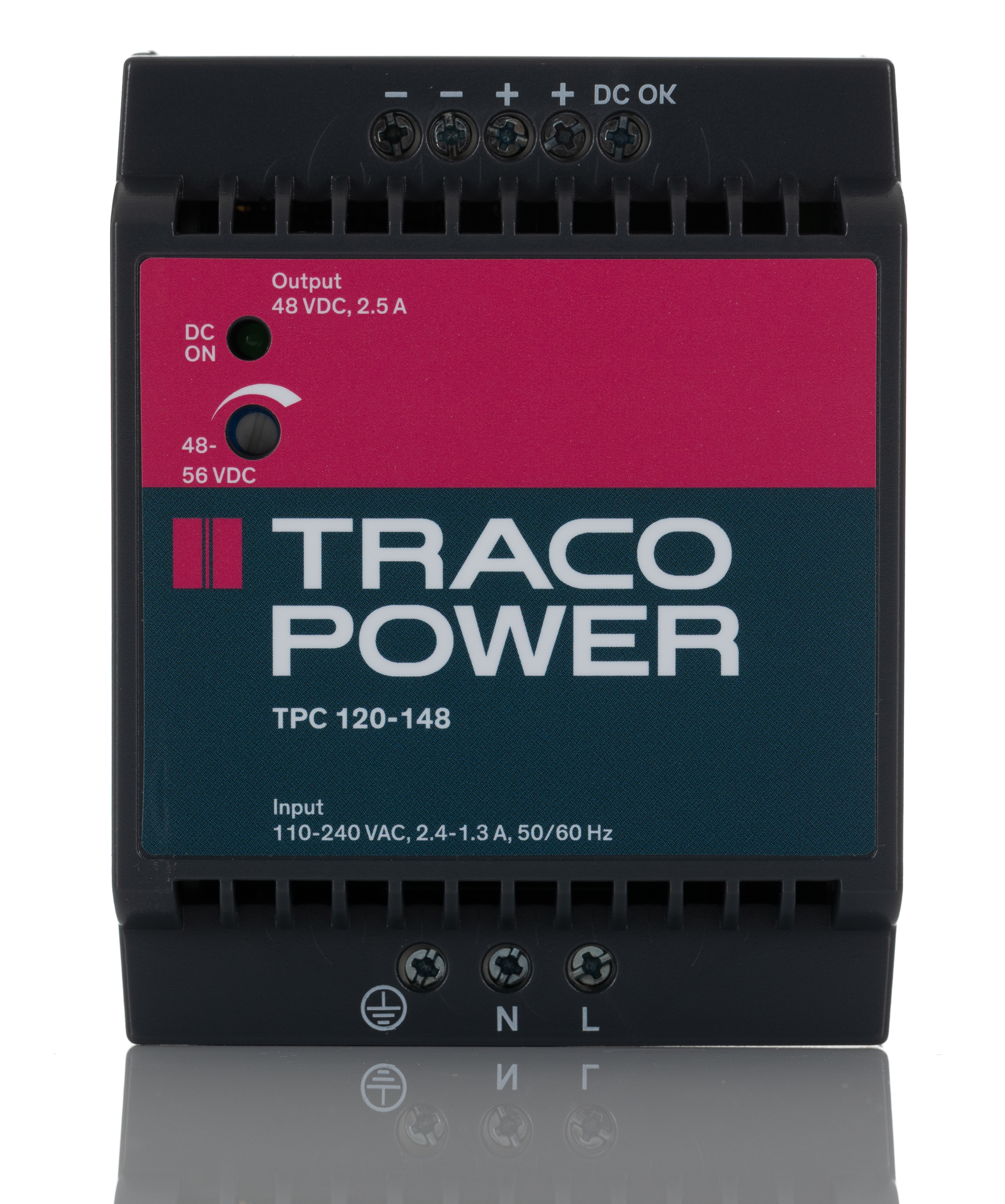

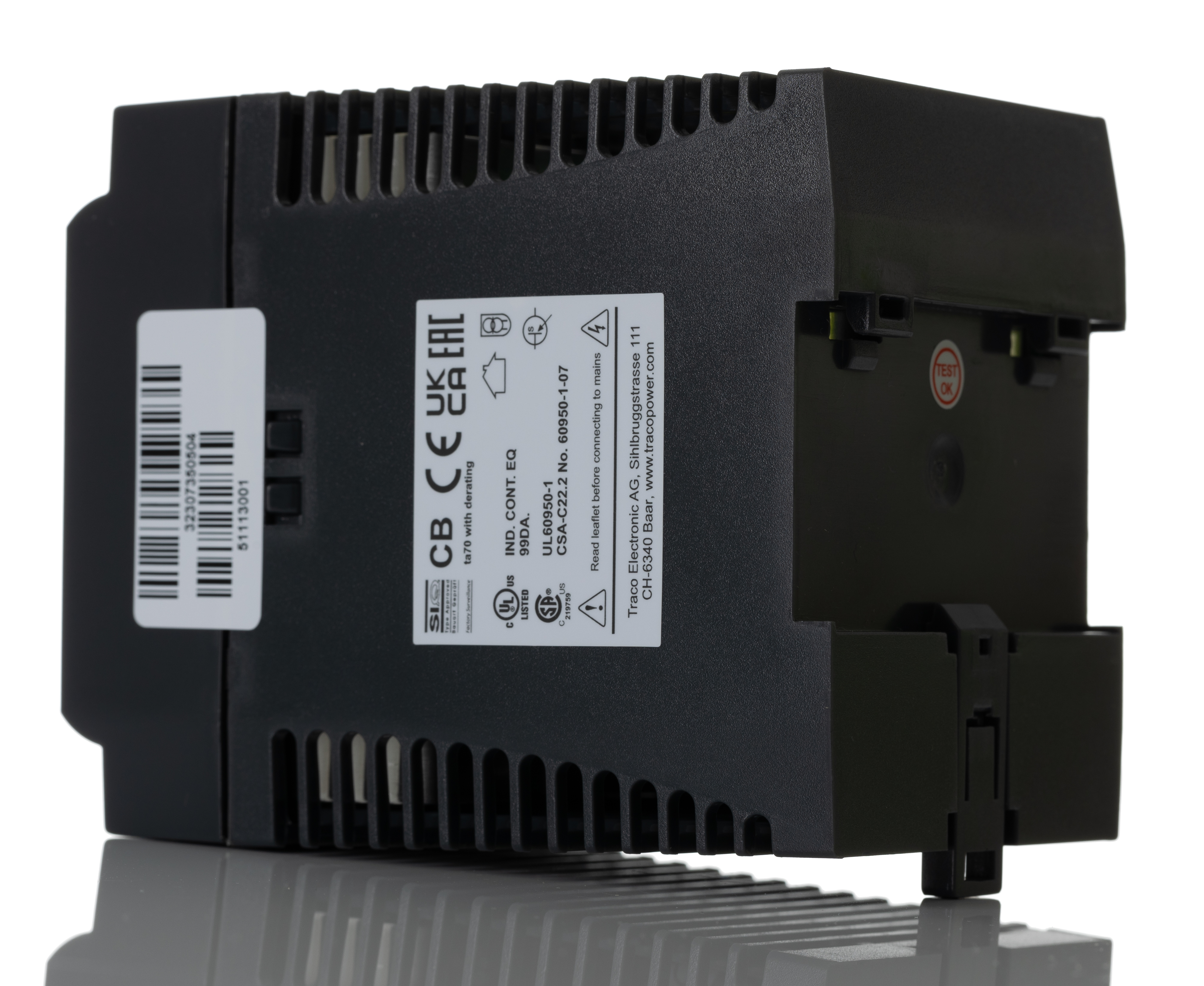

This is TPC DIN Rail Power Supply 120W 48V dc/ 2.5A manufactured by TRACOPOWER. The manufacturer part number is TPC 120-148. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac, dc input voltage. Furthermore, the product is 72mm wide. The MTBF values include >1300000h. Its electrical phase configuration includes 1. It comes in din rail power supply configuration. Load Regulation - 0.5%. The product complies with all safety standards, such as cb scheme, ccsaus, ce, culus, cus recognised, en 50022-35x15/7.5, en 50178, en 55022, en 60204, en 61000-6-2, en 61000-6-3, en 61204-3, en 61558-2-16, en 61558-2-8, iec 61000-3-2, iec/en 60335-1, iec/en 60529, iec/en 60950-1, iec/en 61000-4-11, iec/en 61000-4-2, iec/en 61000-4-3, iec/en 61000-4-4, iec/en 61000-4-5, iec/en 61000-4-6, iec/en 61000-4-8, iec/en 62477, ip20, nec, si, ul 1310, ul 508, ul 60950-1, ul 94 v-0. It is a highly efficient product with an 87% of high efficiency. Its input voltage is 85 → 264 v ac / 90 → 375v dc. Additionally, the product is supplied with 1 outputs. It has 48 → 56v of output voltage adjustment range. Carries 100mv pk-pk ripple and noise. The product comes in 110mm depth. The product also provides special features, such as adjustable output voltage, low output ripples & noise, power good signal. The product is available in din rail mount configuration. It carries 2.5a output current. The product tpc, is a highly preferred choice for users. In addition, the height is 90mm. Features a 48v dc output voltage. Feature 120w of power rating.
