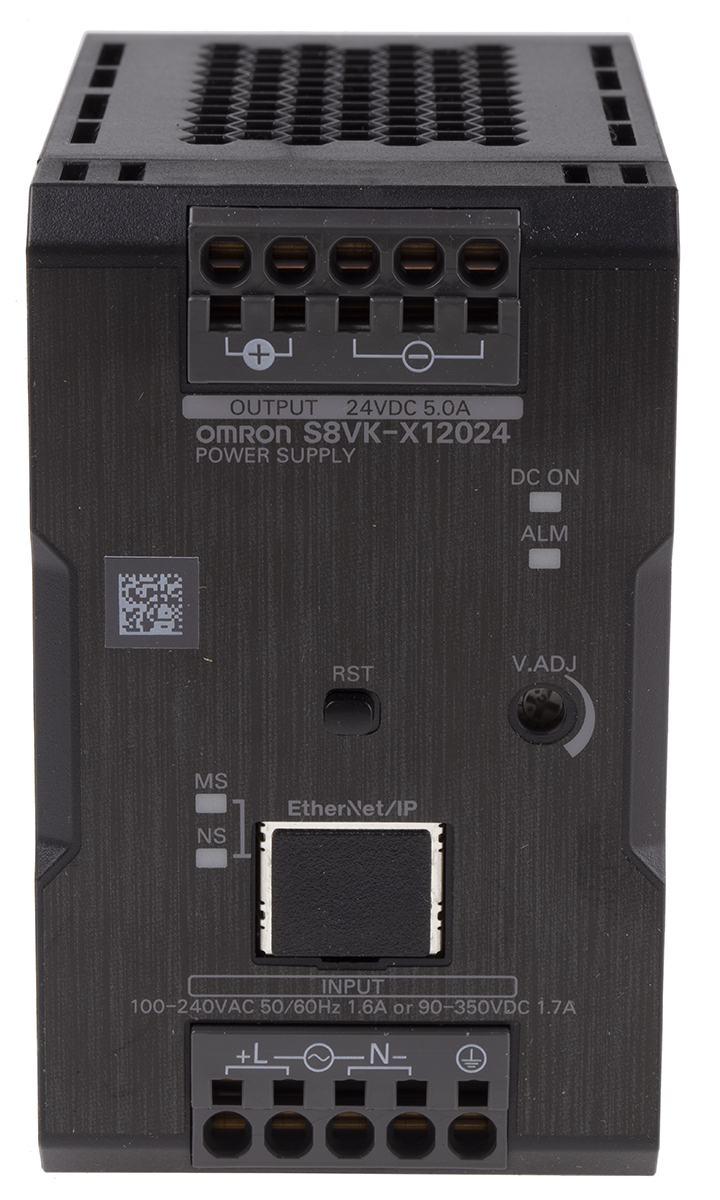

This is S8VK-V Switched Mode Power Supply DIN Rail Panel Mount Power Supply 120W 24V dc/ 5A manufactured by Omron. The manufacturer part number is S8VK-X12024-EIP. The product has +70°c maximum temperature. It has a/an dc output voltage . The given dimensions of the product include 55 x 92.3 x 90mm. While its minimum temperature is -40°c. It has ac input voltage. Furthermore, the product is 55mm wide. The MTBF values include 140000h. Its electrical phase configuration includes 1. It comes in switched mode configuration. Load Regulation - 1.5%. The product complies with all safety standards, such as ce, culus, eac, en 61000-3-2, en 61204-3, en/iec 60529, en/iec 61558-2-16, tuv, ul. It is a highly efficient product with an 92% of high efficiency. Its input voltage is 100 → 240v ac. Additionally, the product is supplied with 1 outputs. It has 21.6 → 28v of output voltage adjustment range. Carries 150mv pk-pk ripple and noise. The product comes in 92mm depth. The product also provides special features, such as and more are acquired on the network and can be managed all at once, output current, output voltage, power boost function at 150%, replacement time, status can be checked on-site using the indication monitor. The product is available in din rail mount configuration. It carries 5a output current. The product s8vk-x, is a highly preferred choice for users. In addition, the height is 90mm. Features a 24v dc output voltage. Feature 120w of power rating.
For more information please check the datasheets.
