Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo

Manufacturer : Mean Well
Manufacturer Part No : MDR-60-12
Enrgtech Part No : ET16829654
Product Range : PolySwitch RXEF Series

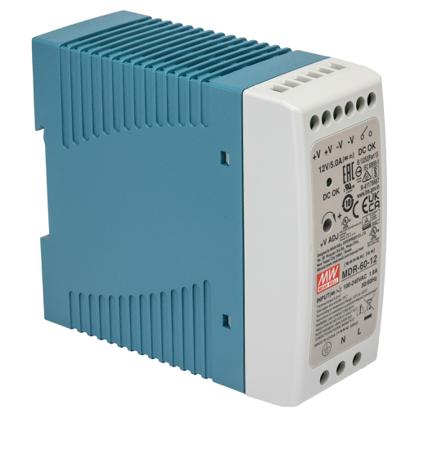

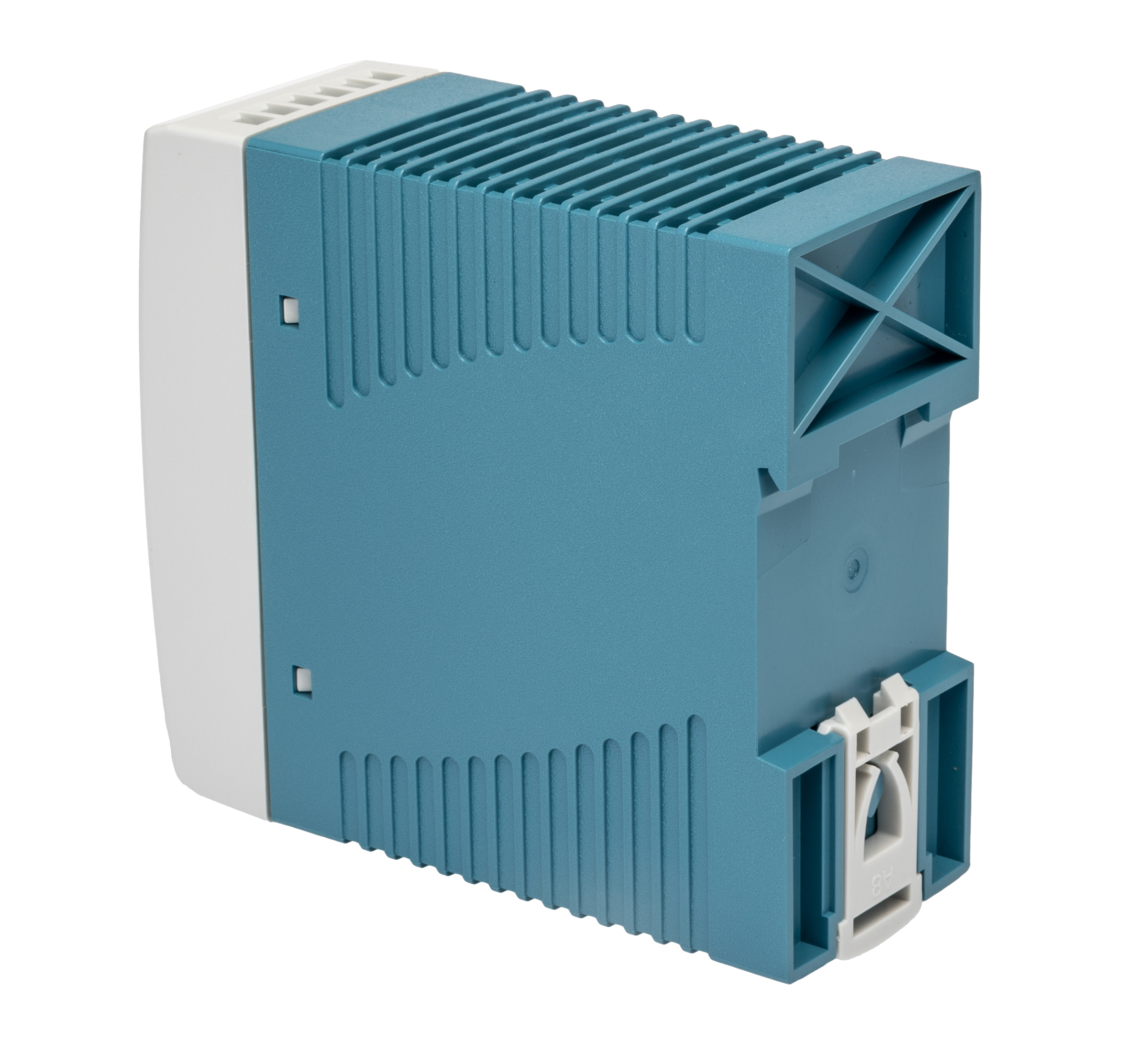

Switch Mode DIN Rail Panel Mount Power Supply, 60W, 12V dc/ 5A

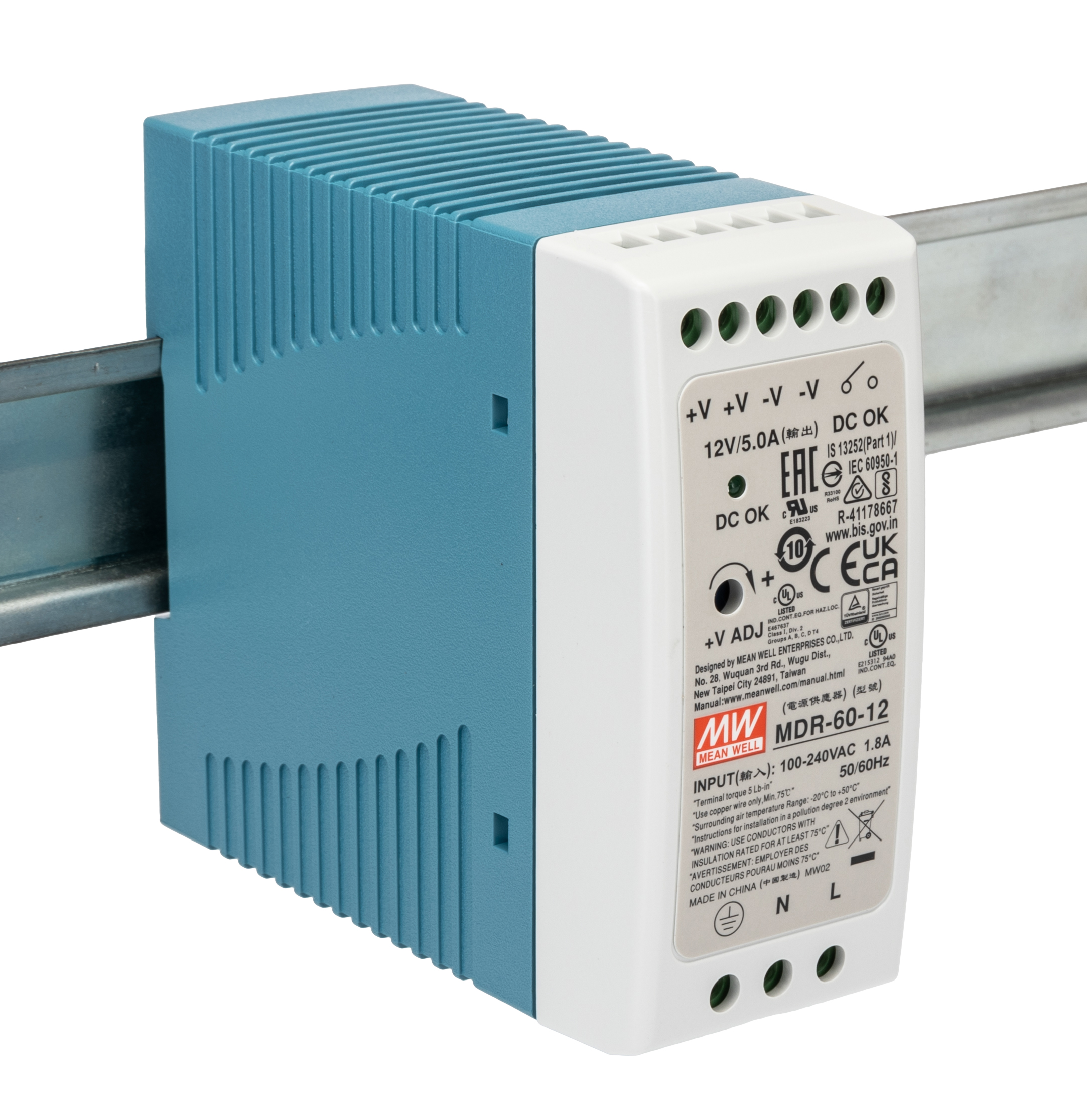

MDR-60 Series Single Output Industrial DIN Rail Power Supply A range of Mean Well single output industrial DIN Rail power supplies with short circuit, overload and over voltage protection. They can be installed on DIN Rail TS-35/7.5 or 15 and offer cooling by free air convection. Features & Benefits Universal AC input/Full range Protections: Short circuit/Overload/Over voltage Cooling by free air convection Can be installed on DIN Rail TS-35/7.5 or 15 DC OK relay contact LED indicator for power-on No load power consumption 100% full load burn-in test 3 years warranty Class 1, Div 2 hazardous locations T4 Approvals UL508,TUV,EN60950-1

Product Information

Maximum Temperature : +70°C
AC or DC Output Voltage : Dc
Minimum Temperature : -20°C
AC or DC Input Voltage : Ac
Width : 40mm
MTBF : 299.2kh
Electrical Phase : 1
Type : Switch Mode
Load Regulation : ±1%
Standards Met : RoHS Compliant, TUV EN 60950-1, UL 508
Input Voltage : 85 → 264V ac
rohs : RoHS Certificate of Compliance
Number of Outputs : 1
Output Voltage Adjustment Range : 12 → 15V
Ripple And Noise : 120mV Pk-Pk
Hazardous Area Certification : B, C, Class I Division 2 Group A, D Hazardous Location T4
Depth : 90mm
Special Features : Overvoltage and Short Circuit Protection
Mounting Type : DIN Rail Mount
Output Current : 5 A
Series : MDR
Height : 100mm
Output Voltage : 12 V dc
Power Rating : 60W

Technical Documents

  • Installation Manual (Technical Reference)
  • Declaration Of Conformity (Technical Reference)
  • MDR-60 Series specification sheet (Technical Reference)
