Manufacturer : Siemens
Manufacturer Part No : 6EP1333-1LB00
Enrgtech Part No : ET16774777
Product Range : PolySwitch RXEF Series

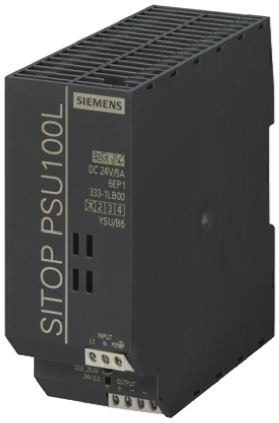

Switch Mode DIN Rail Panel Mount Power Supply, 120W, 24V dc/ 5A

SITOP Lite, Single Phase Power Supplies A range of SITOP power supplies designed to meet the basic needs for use in industrial environments. The compact design means that these primary switched mode regulators require little space on the DIN Rail. The high efficiency of this range results in low power consumption and heat loss in the cabinet. The single phase SITOP lite power supplies are designed for basic requirements in industrial environments and offer all the key functions at an attractive price. Features and Benefits • 24 V DC/ 2.5 A, 5 A and 10 A • Single phase wide-range input with manual switchover • Slim design - no lateral installation clearances required • High degree of efficiency • Green LED for "24 V OK" • Adjustable output voltage for compensating voltage drops • Parallel connection possible • Ambient temperature range of 0°C to 60°C (above 45°C with derating) • Short circuit and overload protection • Certification to CE, cULus and CD Approvals CE, cULus, CB

Product Information

Number of Outputs : 1
Output Voltage Adjustment Range : 22.8 → 26.4V
Load Regulation : 0.5%
AC or DC Output Voltage : Dc
Output Current : 5 A
Mounting Type : DIN Rail Mount
Maximum Temperature : +60°C
Series : SITOP PSU100L
Electrical Phase : 1
AC or DC Input Voltage : Ac
Height : 125mm
Width : 52mm
Depth : 120mm
Input Voltage : 93 → 132V ac
Output Voltage : 24 V dc
Minimum Temperature : 0°C
Power Rating : 120W
Ripple And Noise : 150mV Pk-Pk
Type : Switch Mode
rohs : RoHS Certificate of Compliance

Technical Documents

  • 6EP1333-1LB00 - Datasheet (Technical Reference)
