Number of Outputs:
1
Output Voltage Adjustment Range:
23.5 → 28V
Ripple And Noise:
100mV Pk-Pk
Output Current:
10A
Standards Met:
CB Scheme, cCSAus, CE, cULus, EN 50022-35X15/7.5, EN 50178, EN 55022, EN 60204, EN 61000-6-2, EN 61000-6-3, EN 61204-3, EN 61558-2-16, EN 61558-2-8, IEC 61000-3-2, IEC/EN 60335-1, IEC/EN 60529, IEC/EN 60950-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 62477, IP20, NEC, SI, UL 1310, UL 508, UL 60950-1
Mounting Type:
DIN Rail Mount
Maximum Temperature:
+70°C
Series:
TIB
Electrical Phase:
1
Special Features:
Active Power Factor, Adjustable Output Voltage, Alternative Side-Mounting for Flat Panels, Back Power Immunity
AC or DC Input Voltage:
ac
Height:
124.2mm
Width:
48mm
Depth:
118.6mm
MTBF:
>1300000h
Output Voltage:
24V dc
Minimum Temperature:
-25°C
AC or DC Output Voltage:
dc
Power Rating:
240W
Input Voltage:
85 → 264V ac

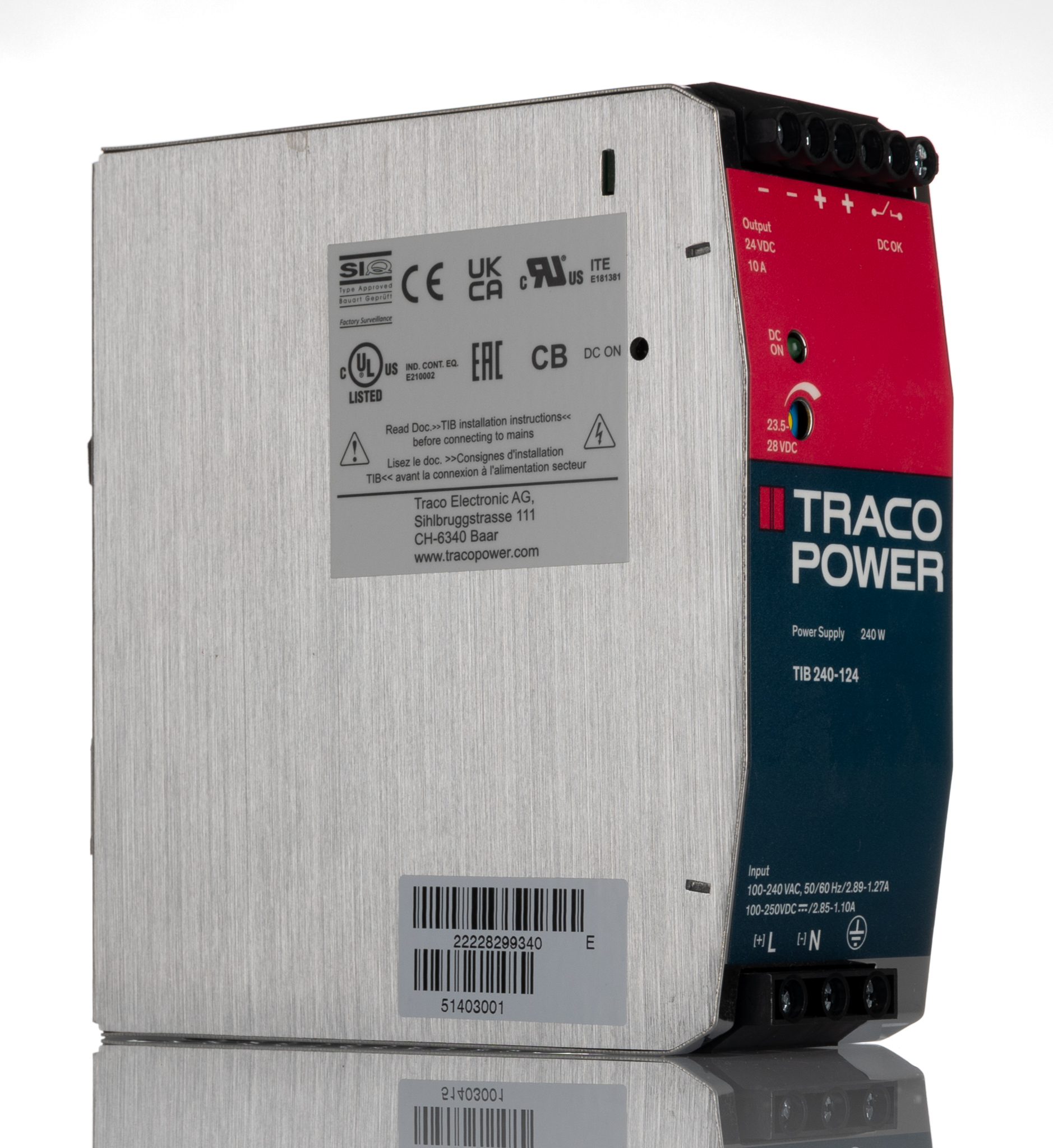

This is TIB DIN Rail Power Supply 240W 24V dc/ 10A manufactured by TRACOPOWER. The manufacturer part number is TIB 240-124. Additionally, the product is supplied with 1 outputs. It has 23.5 → 28v of output voltage adjustment range. Carries 100mv pk-pk ripple and noise. It carries 10a output current. The product complies with all safety standards, such as cb scheme, ccsaus, ce, culus, en 50022-35x15/7.5, en 50178, en 55022, en 60204, en 61000-6-2, en 61000-6-3, en 61204-3, en 61558-2-16, en 61558-2-8, iec 61000-3-2, iec/en 60335-1, iec/en 60529, iec/en 60950-1, iec/en 61000-4-11, iec/en 61000-4-2, iec/en 61000-4-3, iec/en 61000-4-4, iec/en 61000-4-5, iec/en 61000-4-6, iec/en 61000-4-8, iec/en 62477, ip20, nec, si, ul 1310, ul 508, ul 60950-1. The product is available in din rail mount configuration. The product has +70°c maximum temperature. The product tib, is a highly preferred choice for users. Its electrical phase configuration includes 1. The product also provides special features, such as active power factor, adjustable output voltage, alternative side-mounting for flat panels, back power immunity. It has ac input voltage. In addition, the height is 124.2mm. Furthermore, the product is 48mm wide. The product comes in 118.6mm depth. The MTBF values include >1300000h. Features a 24v dc output voltage. While its minimum temperature is -25°c. It has a/an dc output voltage . Feature 240w of power rating. Its input voltage is 85 → 264v ac.
