Maximum Temperature:
+70°C
AC or DC Output Voltage:
dc
Minimum Temperature:
-25°C
AC or DC Input Voltage:
ac
Width:
55mm
MTBF:
1292102h
Electrical Phase:
1
Type:
Switch Mode
Standards Met:
ABS, ANSI/ISA-12.12.01, ATEX, CB, cCSAus, CE Certified, CSA, CSA C22.2, cUL Listed, cULus Listed, E197259, EN 50178, EN 55022 Class B, EN 60529, EN 60715, EN 60950-1, EN 61000-3-2, EN 61000-6-2, GL, IECEx, UL 489, UL 508, UL Listed
Efficiency:
94%
Input Voltage:
120 → 230V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
24 → 28.8V
Ripple And Noise:
50mV Pk-Pk
Depth:
125mm
Mounting Type:
DIN Rail Mount
Output Current:
10A
Series:
SITOP PSU8200
Height:
125mm
Output Voltage:
24V dc
Power Rating:
240W

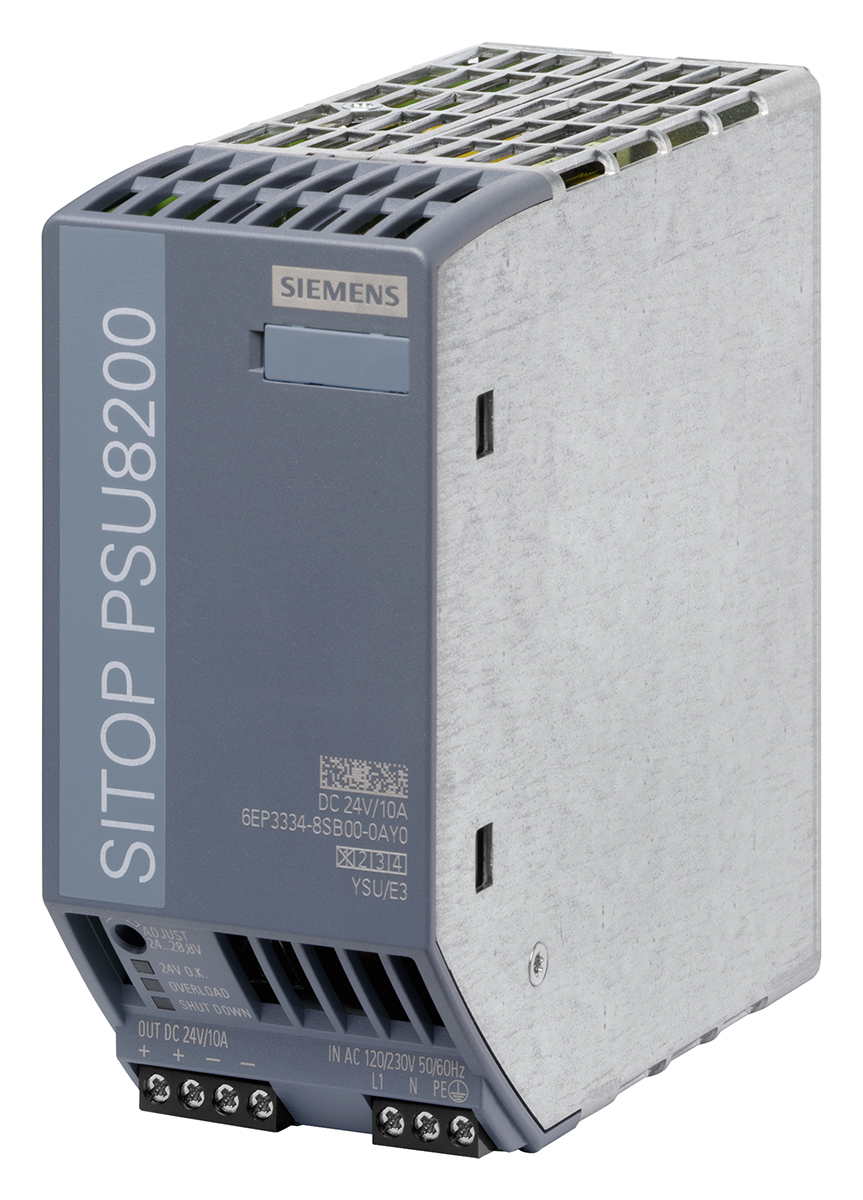

This is DIN Rail Panel Mount Power Supply 240W 24V dc/ 0 → 10A manufactured by Siemens. The manufacturer part number is 6EP3334-8SB00-0AY0. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -25°c. It has ac input voltage. Furthermore, the product is 55mm wide. The MTBF values include 1292102h. Its electrical phase configuration includes 1. It comes in switch mode configuration. The product complies with all safety standards, such as abs, ansi/isa-12.12.01, atex, cb, ccsaus, ce certified, csa, csa c22.2, cul listed, culus listed, e197259, en 50178, en 55022 class b, en 60529, en 60715, en 60950-1, en 61000-3-2, en 61000-6-2, gl, iecex, ul 489, ul 508, ul listed. It is a highly efficient product with an 94% of high efficiency. Its input voltage is 120 → 230v ac. Additionally, the product is supplied with 1 outputs. It has 24 → 28.8v of output voltage adjustment range. Carries 50mv pk-pk ripple and noise. The product comes in 125mm depth. The product is available in din rail mount configuration. It carries 10a output current. The product sitop psu8200, is a highly preferred choice for users. In addition, the height is 125mm. Features a 24v dc output voltage. Feature 240w of power rating.
