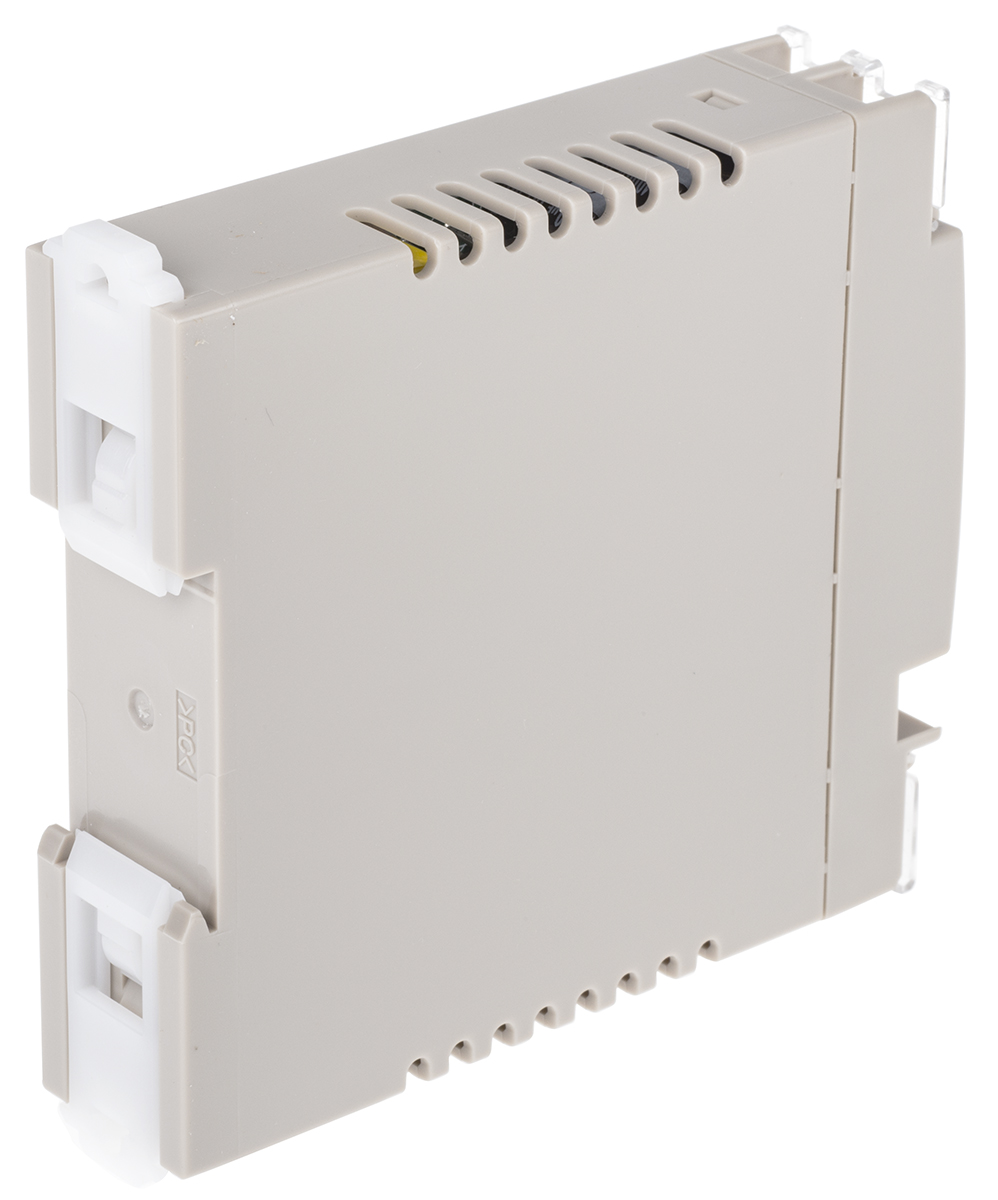

Image is for illustrative purposes only.
Please refer to product description.

manufacturer logo
manufacturer logo

Manufacturer : Omron
Manufacturer Part No : S8VS01505
Enrgtech Part No : ET13852092
Product Range : PolySwitch RXEF Series

15W Switch Mode DIN Rail Panel Mount Power Supply, 5V dc/ 2A

10W to 30W Switch Mode S8VS Series Compact industrial standard housing only 22.5mm wide No derating up to 60°C DIN rail mounting as standard with option to side or flat mount with optional bracket (S82YVS30P), see stock no 494-7997 Low voltage indication Ripple less than 2% P-P after 10 years operation (less than 0.86% typical when new) 5 year warranty as standard CE marked - meets latest European legislation Standards EN50178 (=VDE0160), EN60950-1 (=VDE0805), UL508/60950-1/1604, CSA22.2 No.14/60950-1/213, SELV(EN609250/EN50178), EMI/EMS EN61204-3 EN55011 (Class B) FCC Class A Standards UL, CSA, EN, VDE

Product Information

Number of Outputs : 1
Load Regulation : ±2%
AC or DC Output Voltage : Dc
Output Current : 2 A
Mounting Type : DIN Rail Mount
Efficiency : 72%
Maximum Temperature : +60°C
Series : S8VS
Electrical Phase : 1
AC or DC Input Voltage : Ac
Height : 85mm
Width : 22.5mm
Depth : 96.4mm
MTBF : 135000h
Output Voltage : 5 V dc
Minimum Temperature : -10°C
Power Rating : 15W
Ripple And Noise : ±2%
Type : Switch Mode
Input Voltage : 85 → 264V ac

Technical Documents

  • Datasheet (Technical Reference)
  • UL E104818 (Technical Reference)
  • Omron S8VS Transition to S8VK (Technical Reference)
  • UL LISTED FOR CANADA E104818-7 (Technical Reference)
