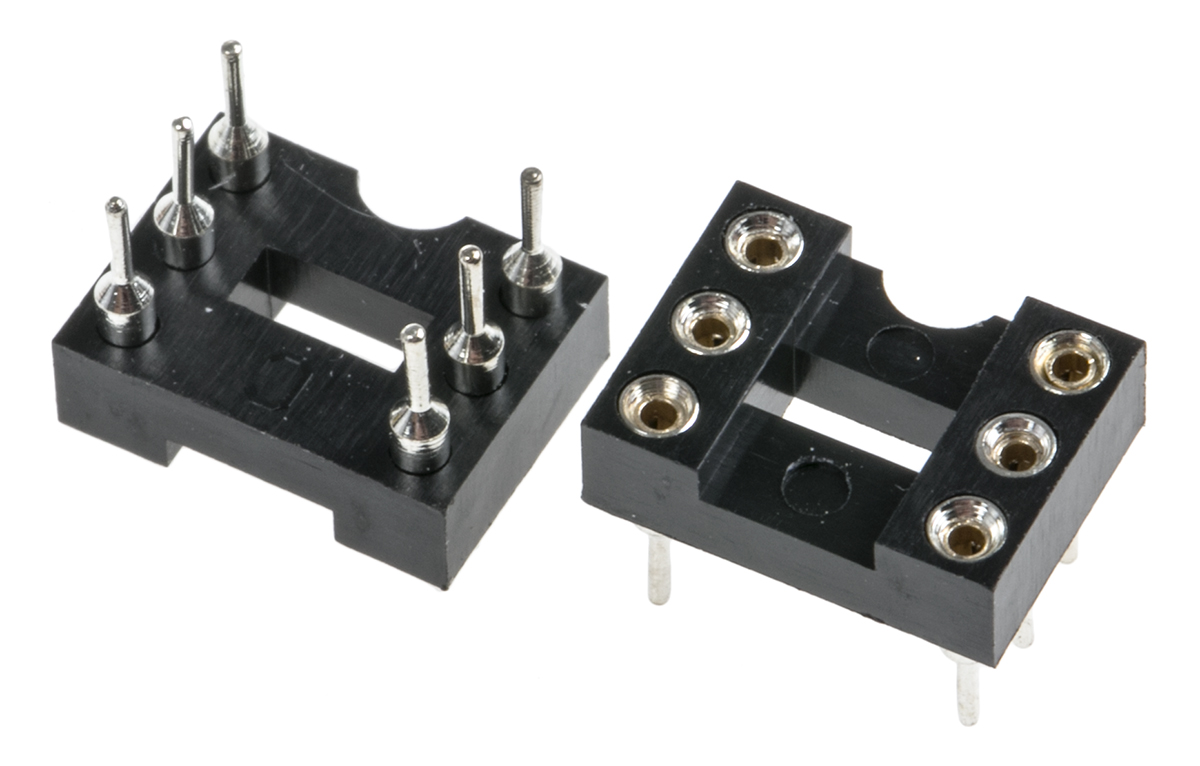

Winslow 2.54mm Pitch Vertical 6 Way, Through Hole Turned pin Open Frame IC Dip Socket, 5A

W30506TRC Winslow 2.54mm Pitch Vertical 6 Way, Through Hole Turned pin Open Frame IC Dip Socket, 5A
Winslow

Product Information

Row Width:
7.62mm
Number of Contacts:
6
Current Rating:
5A
Dimensions:
7.54 x 4.6 x 10.14mm
Mounting Type:
Through Hole
Contact Material:
Beryllium Copper
Termination Method:
Solder
Length:
7.54mm
Housing Material:
PBT
Width:
4.6mm
Depth:
10.14mm
Contact Plating:
Tin Lead Alloy
Pitch:
2.54mm
Orientation:
Vertical
Frame Type:
Open Frame
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-65°C
Pin Type:
Turned
RoHs Compliant
Checking for live stock

This is 2.54mm Pitch Vertical 6 Way Through Hole Turned pin Open Frame IC Dip Socket 5A manufactured by Winslow. The manufacturer part number is W30506TRC. Its row is 7.62mm in width . The product contains 6 contacts. The product has a current rating of 5a. The given dimensions of the product include 7.54 x 4.6 x 10.14mm. The product is available in through hole configuration. The product is made from sturdy beryllium copper materials. It allows solder termination method. Its accurate length is 7.54mm. The product also features robust pbt housing material. Furthermore, the product is 4.6mm wide. The product comes in 10.14mm depth. The high-quality tin lead alloy is used as contact plating material. Moreover, the product is 2.54mm. The product has a vertical orientation. The frame is designed as [Fram Type] type. It has a maximum operating temperature of +150°c. Whereas, the minimum operating temperature of the product is -65°c. It contains a turned type pin .

pdf icon
Turned Pin I.C. Skt Drawing(Technical Reference)
pdf icon
W30506TRC Datasheet(Technical Reference)
