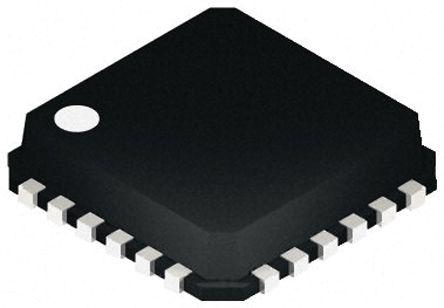

Analog Devices AD8147ACPZ-R2, Differential Amplifier 780MHz 3-channel 24-Pin LFCSP

AD8147ACPZ-R2 Analog Devices , Differential Amplifier 780MHz 3-channel 24-Pin LFCSP
Analog Devices

Product Information

Minimum CMRR:
-49dB
Typical Dual Supply Voltage:
±5V
Typical Gain Bandwidth Product:
780MHz
Dimensions:
4.1 x 4.1 x 0.75mm
Mounting Type:
Surface Mount
Maximum Input Resistance:
1kΩ
Power Supply Type:
Dual, Single
Number of Channels per Chip:
3
Maximum Voltage Gain:
2V/V
Height:
0.75mm
Typical Single Supply Voltage:
5 V
Width:
4.1mm
Length:
4.1mm
Package Type:
LFCSP
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
24
RoHs Compliant
Checking for live stock

This is Differential Amplifier 780MHz 3-channel 24-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is AD8147ACPZ-R2. It is designed with a minimum -49db CMRR . While ±5v is the typical dual supply voltage. Features 780mhz typical gain bandwidth. The given dimensions of the product include 4.1 x 4.1 x 0.75mm. The product is available in surface mount configuration. It has a maximum 1kω input resistance . It is a type of dual, single power supply. It comprises 3 channels per chip. It has a maximum 2v/v voltage gain . In addition, the height is 0.75mm. It has a typical single supply voltage of 5 v. Furthermore, the product is 4.1mm wide. Its accurate length is 4.1mm. The package is a sort of lfcsp. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 24 pins.

pdf icon
Triple Differential Driver for Wideband Video(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
