Minimum CMRR:
75dB
Maximum Input Offset Voltage:
3mV
Typical Dual Supply Voltage:
±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum Input Resistance:
0.22MΩ
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Maximum Voltage Gain:
40dB
Height:
1.5mm
Typical Single Supply Voltage:
5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Width:
4mm
Length:
5mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
8

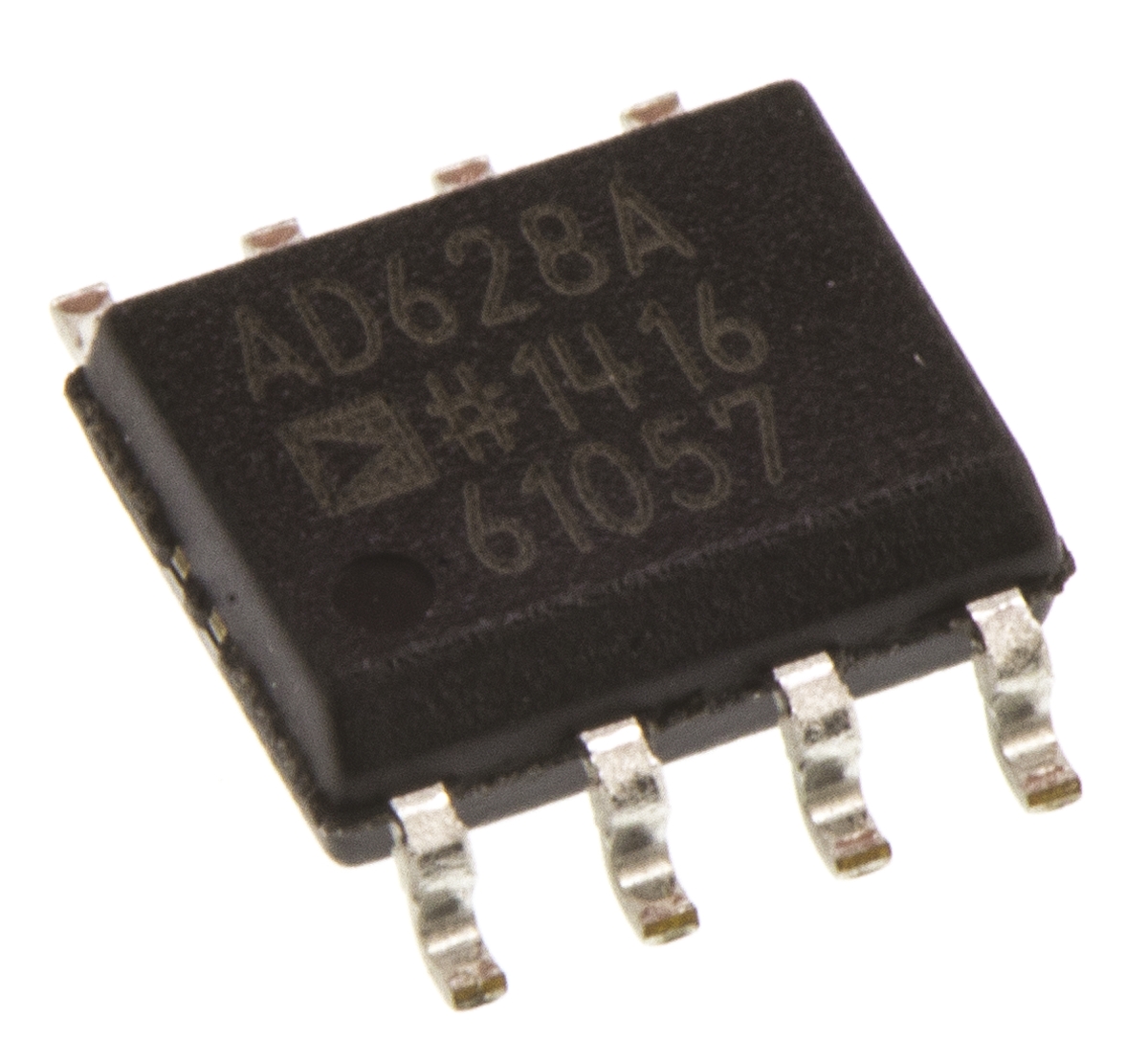

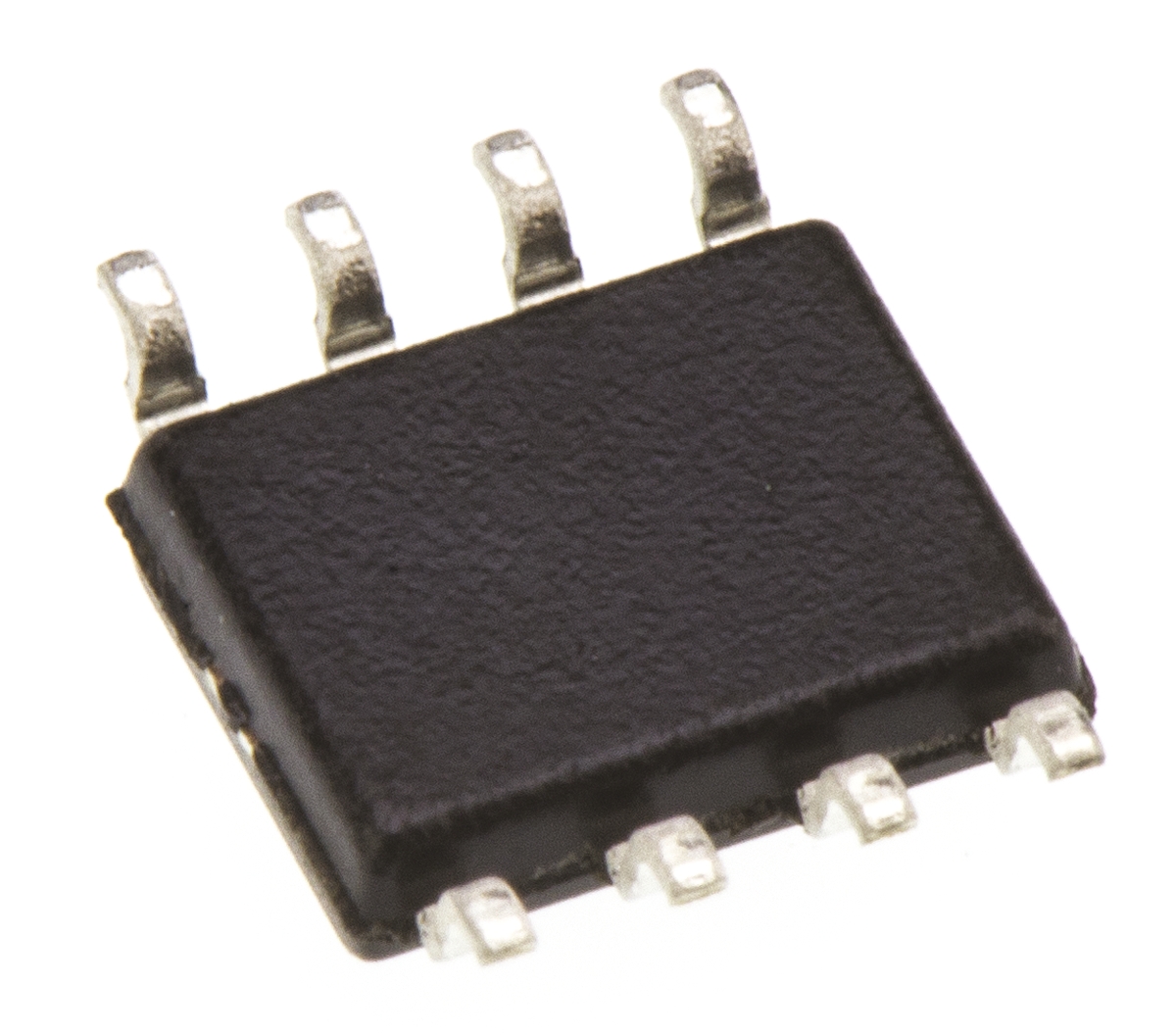

This is Differential Amplifier 2-channel 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is AD628ARZ. It is designed with a minimum 75db CMRR . It has a maximum 3mv input offset voltage . While ±12 v, ±15 v, ±3 v, ±5 v, ±9 v is the typical dual supply voltage. The given dimensions of the product include 5 x 4 x 1.5mm. The product is available in surface mount configuration. It has a maximum 0.22mω input resistance . It is a type of dual, single power supply. It comprises 2 channels per chip. It has a maximum 40db voltage gain . In addition, the height is 1.5mm. It has a typical single supply voltage of 5 v, 9 v, 12 v, 15 v, 18 v, 24 v, 28 v. Furthermore, the product is 4mm wide. Its accurate length is 5mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 8 pins.
