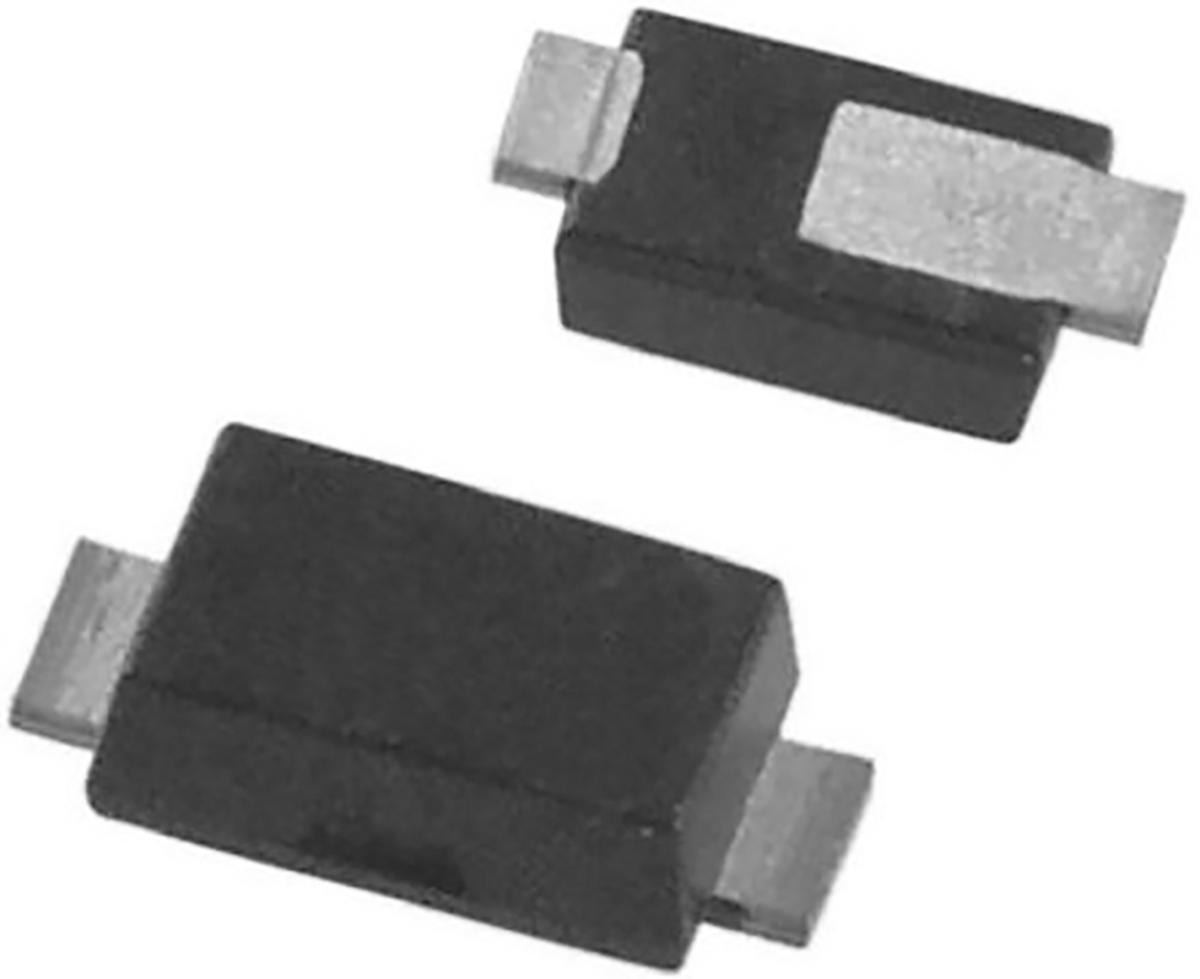

DiodesZetex AL5809-120QP1-7 Constant Current Diode, 2-Pin PDI123

AL5809-120QP1-7 DiodesZetex Constant Current Diode, 2-Pin PDI123
AL5809-120QP1-7 DiodesZetex Constant Current Diode, 2-Pin PDI123
DiodesZetex

Product Information

Automotive Standard:
No
Product Type:
Constant Current Diode
Maximum Operating Temperature:
150°C
Minimum Supply Voltage:
2.5V
Maximum Supply Voltage:
60V
Sensing Method:
Low Side, High Side
Series:
AL5809
Sub Type:
2-Terminal Constant Current LED Driver
Height:
1mm
Width:
1.93 mm
Length:
3mm
Package Type:
PDI123
Minimum Operating Temperature:
-40°C
Standards/Approvals:
No
Mount Type:
Surface
Supply Current:
150mA
Pin Count:
2
Accuracy:
±5 %
RoHs Compliant
Checking for live stock

This is Constant Current Diode 2-Pin PDI123 manufactured by DiodesZetex. The manufacturer part number is AL5809-120QP1-7. The product complies with automotive standard - no. constant current diode is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. It has a minimum 2.5v supply voltage . The product requires a maximum 60v supply voltage . Equipped with low side, high side sensing mechanism. The product al5809, is a highly preferred choice for users. Its sub type is 2-terminal constant current led driver . In addition, the height is 1mm. Furthermore, the product is 1.93 mm wide. Its accurate length is 3mm. The package is a sort of pdi123. Whereas, the minimum operating temperature of the product is -40°c. It has a surface type mount . It features 150ma supply current. It contains 2 pins. It provides high accuracy of ±5 %.

pdf icon
AL5809Q Constant Current Linear LED Driver(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
