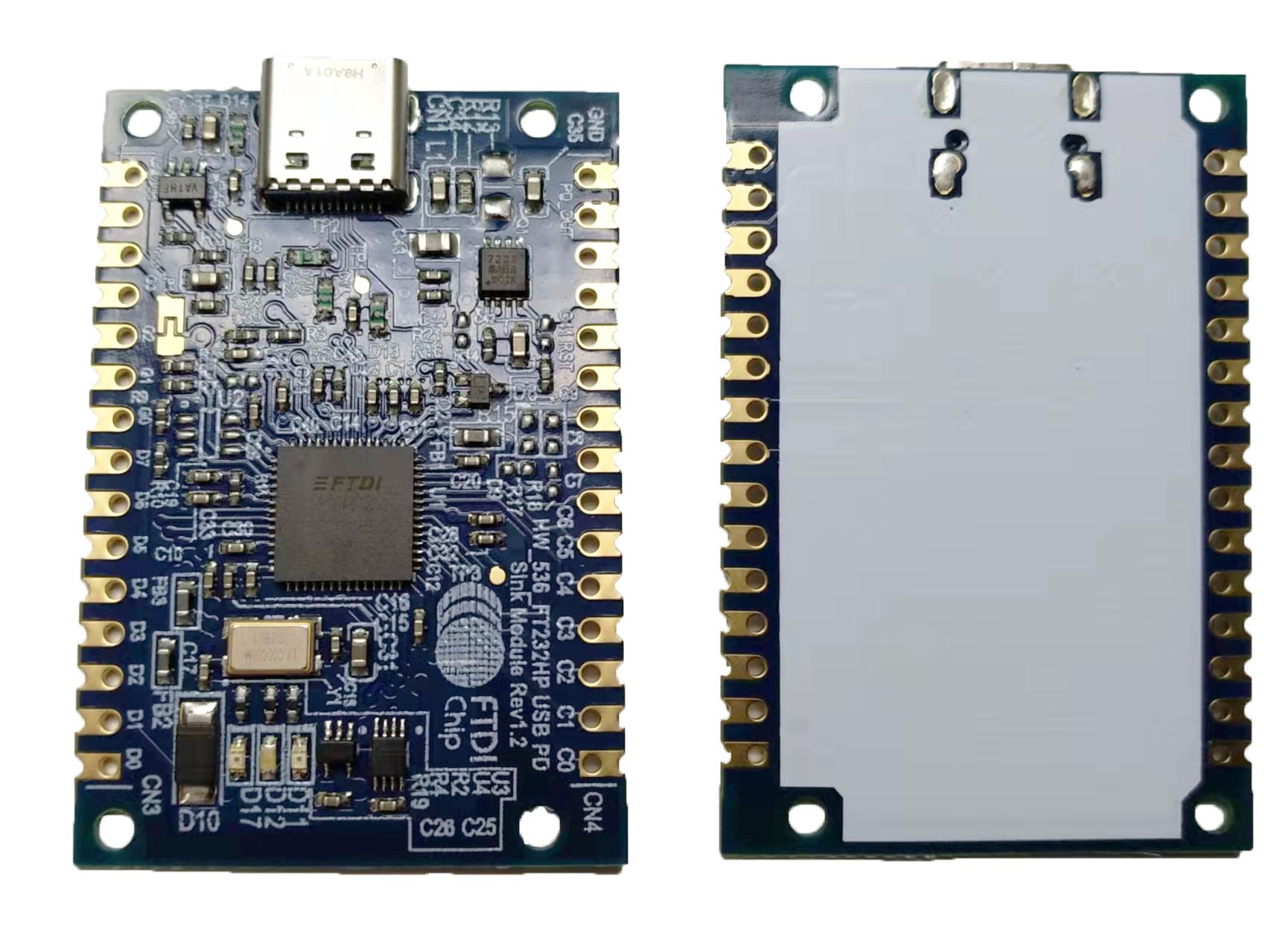

FTDI Chip Sink Module Board Development Module UMFT232HPEV-S

The FTDI Chip UMFT232HPEV-S is a sophisticated evaluation platform designed for engineers looking to master Hi-Speed USB-to-serial bridging with integrated Power Delivery (PD) sink capabilities. Featuring the high-performance FT232HP silicon, this module simplifies the transition to USB Type-C by automatically handling complex handshake protocols. It serves as a versatile bridge for UART, SPI, I2C, and JTAG interfaces, making it an essential tool for rapid prototyping in industrial automation and consumer electronics development.

What Makes Our Product Stand Out?

This FTDI Chip UMFT232HPEV-S sink module board streamlines the implementation of USB Type-C Power Delivery, enabling devices to negotiate power efficiently while maintaining high-speed data transfer. It eliminates design complexity with a "sink-only" architecture that provides immediate, reliable 15W power delivery for diverse hardware projects.

• High-Speed Versatility: Supports 480Mbps USB 2.0 speeds across multiple protocols like JTAG, SPI, and I2C via its MPSSE engine.
• Plug-and-Play PD: Negotiates 5V/3A Power Delivery profiles effortlessly, ensuring your prototype is powered correctly without custom firmware.

Core Performance Features & Technical Specifications

• Core IC: FTDI FT232HPQ
• Interface: Single USB Type-C (Hi-Speed 480Mbps)
• PD Capability: Sink-only (Supports up to 5V 3A / 15W)
• Supported Protocols: UART, MPSSE, JTAG, SPI, I2C
• On-board Indicators: LEDs for Power, USB2.0 Vbus, and 5V 3A Profile status
• I/O Voltage: 3.3V (VCCIO)
• Dimensions: Compact 47mm x 32mm footprint
• Operating Systems: Compatible with Windows, Mac OS, Linux, and Android.

For more information please check the datasheets.
