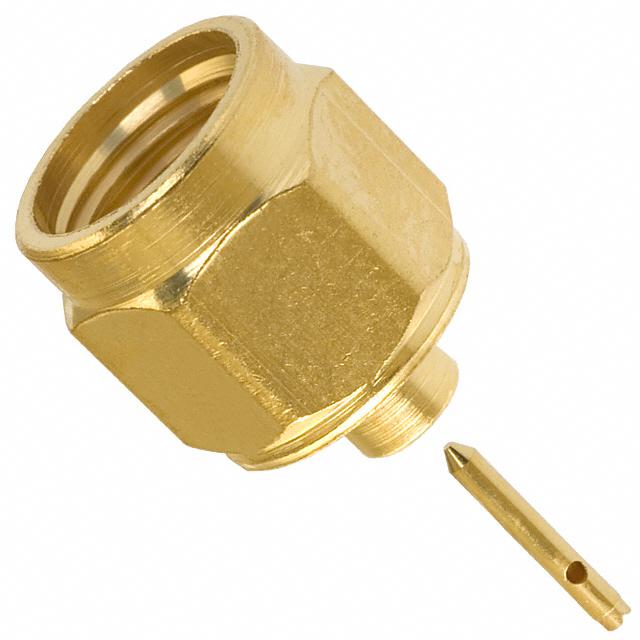

Cinch Connectivity Solutions Johnson 142-0693-001

142-0693-001 Cinch Connectivity Solutions Johnson
142-0693-001
Cinch Connectivity Solutions Johnson

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMA
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
9 Weeks
Voltage Rating:
335 V
REACH Status:
REACH Affected
Includes:
2 pcs - 1 Connector, 1 Contact
Frequency - Max:
26.5 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
RG-405 (.086 Semi Rigid)
Package:
Bulk
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
142-0693
ECCN:
EAR99
Checking for live stock

This is manufactured by Cinch Connectivity Solutions Johnson. The manufacturer part number is 142-0693-001. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in sma connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 9 weeks standard lead time. Moreover, the product has a nominal 335 v voltage rating. In addition, it is reach affected. The product is also supplied with 2 pcs - 1 connector, 1 contact. It maximum frequency is 26.5 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-405 (.086 semi rigid). It is shipped in bulk package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 142-0693, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
142-0693-001 Spec(Datasheets)
pdf icon
142-0593-401 Assem Instr(Datasheets)
pdf icon
142-0693-001 Drawing(Product Drawings)
