MikroElektronika MIKROE-4432

Enrgtech Part No: ET20960192
|
Manufacturer Part No:
MIKROE-4432
|
Manufacturer: MikroElektronika

Product Information

For Use With:

TDR applications

Featured Device:

AD9837

Clock/Timer Function:

Clock Generator

Kit Name:

Waveform 3 Click

Function:

Waveform Generator

Utilized IC / Part:

AD9837

HTSUS:

8473.30.1180

Package:

Bulk

Series:

RoHS Status:

ROHS3 Compliant

REACH Status:

REACH Unaffected

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Checking for live stock

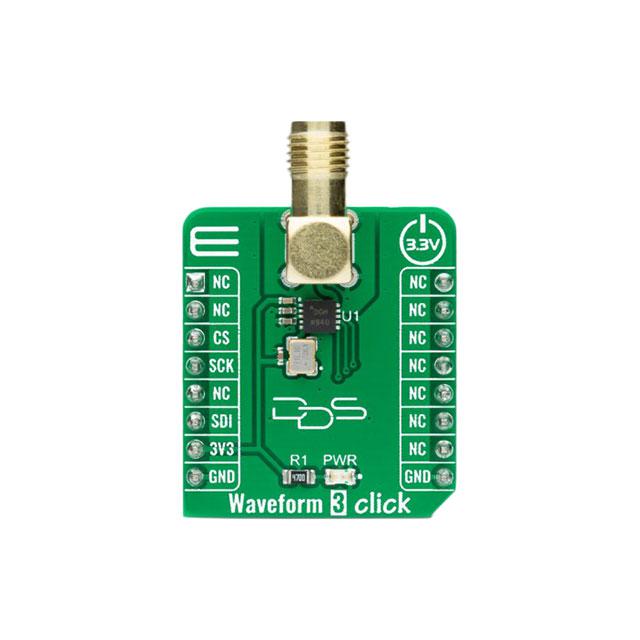

The MikroElektronika MIKROE-4432 is the Waveform 3 Click board, a powerful development tool specifically designed to generate various continuous-time waveforms, including sine, triangular, and square waveforms. This board leverages the AD9837, a high-resolution, programmable function generator utilising Direct Digital Synthesis (DDS) technology. It is built for seamless integration into embedded systems via the standardised mikroBUS™ interface, providing engineers with a compact and efficient solution for generating precise frequency and phase signals, making it ideal for rapid prototyping and Time-Domain Reflectometry (TDR) applications.

Why Choose the MikroElektronika MIKROE-4432 3 Click Board? - The Benefits

This Waveform 3 click board provides high-precision signal generation in a compact, easy-to-use format. Its integration via the mikroBUS™ interface significantly accelerates development time for clock and timer applications, reducing complexity and footprint. It offers excellent frequency agility and phase modulation capabilities, critical for advanced TDR and sensing projects.

Key Features & Suitable Environments of the Waveform 3 Click

Features:

Utilises the low-power AD9837 programmable function generator IC.
Supports the generation of sine, triangular, and square output waveforms.
Features Direct Digital Synthesis (DDS) for high-resolution frequency output.
Standardised connection via the compact mikroBUS™ socket.
Enables programmable frequency and phase signal control.

Suitable Environments:

Time-Domain Reflectometry (TDR) systems.
Test and measurement equipment.
Sensor excitation and sensing applications.
Phase and frequency modulation systems.

Datasheet - MIKROE-4432(Technical Reference)
