Maximum AC Current Measurement:
600A
Power Source:
Battery
Maximum Conductor Size:
32 mm
DC Voltage Accuracy:
±0.9 % rdg + 2 Digits
Battery Life:
200h
AC Voltage Resolution:
1mV
True RMS:
No
Maximum DC Current Measurement:
4000A

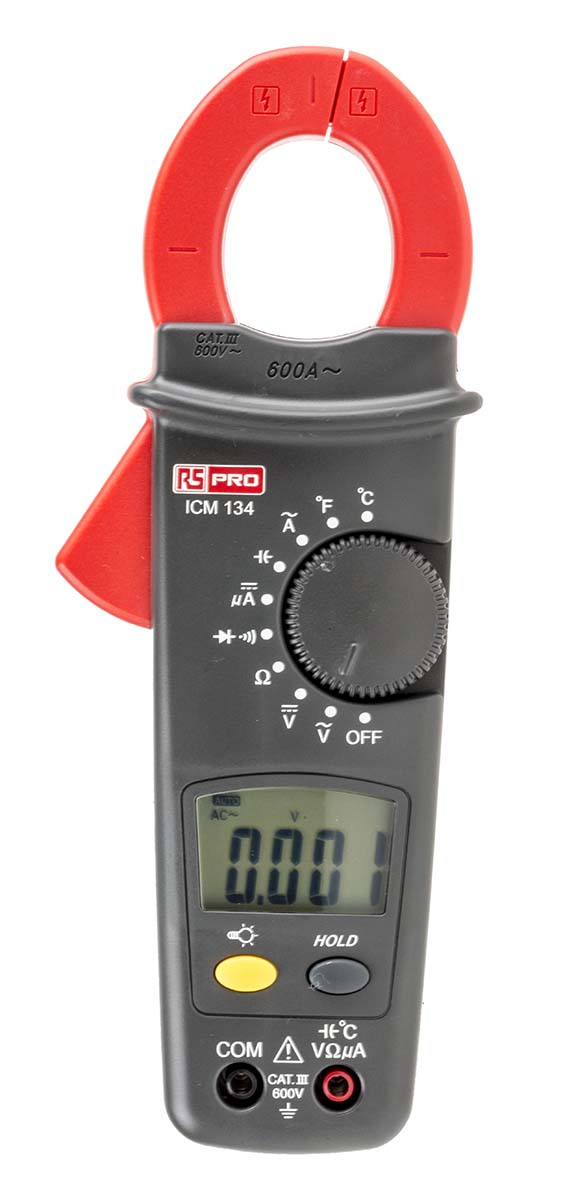

Model Number:
ICM134
AC Current Accuracy:
±1.9 % rdg + 1 A
Maximum Temperature Measurement:
400°C
AC Voltage Accuracy:
±1.5 % rdg + 5 Digits
Battery Type:
Alkaline
Product Type:
Clamp Meter
DC Current Accuracy:
400.0 μA: ±(1%+2 dgt)
DC Voltage Resolution:
1 mV
Non-Contact Voltage Detector:
Yes
AC Current Resolution:
100mA
Safety Category Level:
CAT III, CAT II
Maximum AC Voltage Measurement:
750V ac
Calibrated:
UKAS
Standards/Approvals:
IEC 610101:2001, EN 613261
Maximum DC Voltage Measurement:
1000V
Display Type:
LCD
Maximum Operating Temperature:
50°C
Safety Category Voltage:
1000V
Resistance Measurement Accuracy:
±0.7% + 2 Digits
Maximum Jaw Opening:
32 mm
Maximum Resistance Measurement:
40mΩ
Minimum Operating Temperature:
0°C
Temperature Measurement Accuracy:
-40.0°C to 0.0°C: 1% ± 4°C, 32°F to 750°F: 1% ± 6°F, 0.0°C to 400.0°C: 1% ± 3°C, 750°F to 1000°F: 2% ± 8°F °C, -40°F to 32°F: 1% ± 8°F
Clamp Meter Type:
HVAC Clamp Meter
Functions Measured:
AC Voltage, DC Current, DC Voltage, Resistance, Diode, Capacitance, Temperature, AC Current, Continuity
