Logic,C-MOS,74AC,TC74AC245FT

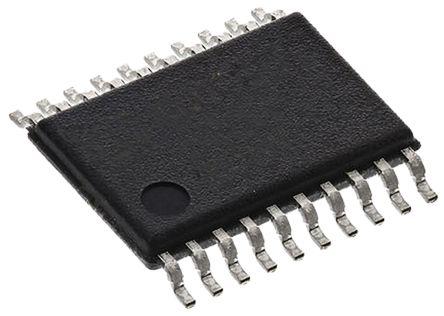

TC74AC245FT Logic,C-MOS,74AC,
TC74AC245FT
Toshiba

Product Information

Polarity:
Non-Inverting
Dimensions:
6.5 x 4.4 x 1mm
Minimum Operating Supply Voltage:
2 V
Logic Family:
AC
Width:
4.4mm
Input Level:
CMOS
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
10.9 ns @ 3.3 V
Number of Channels per Chip:
8
Package Type:
TSSOP
Number of Elements per Chip:
1
Maximum Operating Temperature:
+85 °C
Output Level:
CMOS
Length:
6.5mm
Pin Count:
20
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
Bus Transceiver
Height:
1mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is LogicC-MOS74AC manufactured by Toshiba. The manufacturer part number is TC74AC245FT. While providing non-inverting polarity. The given dimensions of the product include 6.5 x 4.4 x 1mm. While its minimum operating supply voltage is 2 v. The logic family is ac. Furthermore, the product is 4.4mm wide. Additionally, it has a standard cmos input level . On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It provides up to 10.9 ns @ 3.3 v maximum propagation delay time. It comprises 8 channels per chip. The package is a sort of tssop. It consists of 1 elements per chip. It has a maximum operating temperature of +85 °c. Its output level is cmos . Its accurate length is 6.5mm. It contains 20 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes bus transceiver. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.

pdf icon
Logic,C-MOS,74AC,TC74AC245FT(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
