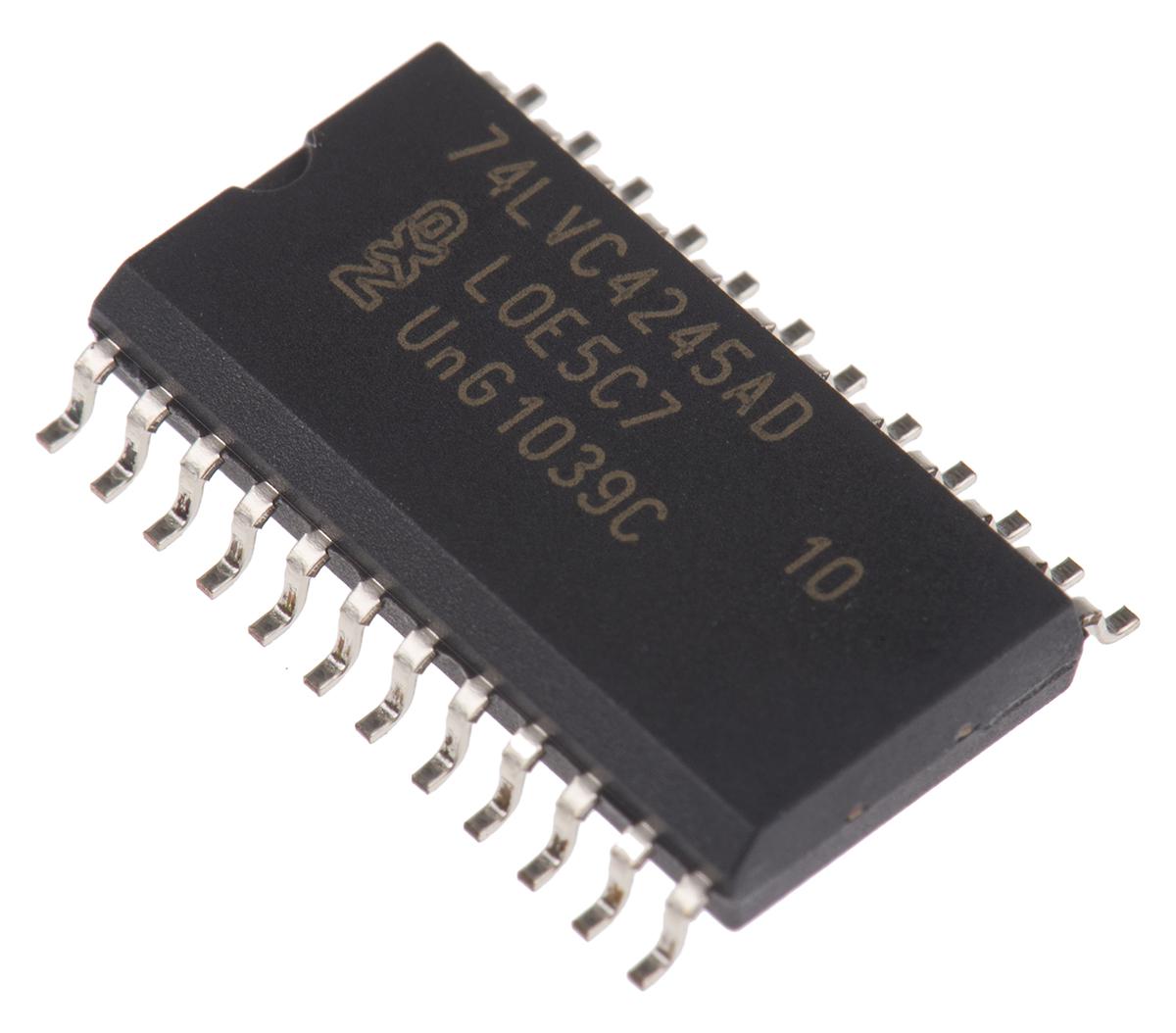

NXP 74LVC4245AD,112, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 1.5 → 3.6 V, 1.5 → 5.5 V, 24-Pin SOIC
Product Information
Polarity:
Non-Inverting
Dimensions:
15.6 x 7.6 x 2.45mm
Minimum Operating Supply Voltage:
1.5 V
Logic Family:
LVC
Width:
7.6mm
Input Level:
LVTTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
3.6 ns @ 5 V
Number of Channels per Chip:
8
Package Type:
SOIC
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
Output Level:
LVTTL
Length:
15.6mm
Pin Count:
24
Maximum Operating Supply Voltage:
3.6 V, 5.5 V
Mounting Type:
Surface Mount
Logic Function:
Bus Transceiver
Height:
2.45mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search 74LVC4245AD,112 on website for other similar products.
We accept all major payment methods for all products including ET14005362. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74LVC4245AD,112 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bus Transceivers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP 74LVC4245AD,112, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 1.5 → 3.6 V, 1.5 → 5.5 V, 24-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on NXP 74LVC4245AD,112, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 1.5 → 3.6 V, 1.5 → 5.5 V, 24-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14005362 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14005362.
Yes. We ship 74LVC4245AD,112 Internationally to many countries around the world.
This is NXP Bus Transceiver 8-Bit Non-Inverting LVTTL 1.5 → 3.6 V 1.5 → 5.5 V 24-Pin SOIC manufactured by Nexperia. The manufacturer part number is 74LVC4245AD,112. While providing non-inverting polarity. The given dimensions of the product include 15.6 x 7.6 x 2.45mm. While its minimum operating supply voltage is 1.5 v. The logic family is lvc. Furthermore, the product is 7.6mm wide. Additionally, it has a standard lvttl input level . On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It provides up to 3.6 ns @ 5 v maximum propagation delay time. It comprises 8 channels per chip. The package is a sort of soic. It consists of 1 elements per chip. It has a maximum operating temperature of +125 °c. Its output level is lvttl . Its accurate length is 15.6mm. It contains 24 pins. It has 3.6 v, 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes bus transceiver. In addition, the height is 2.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.
