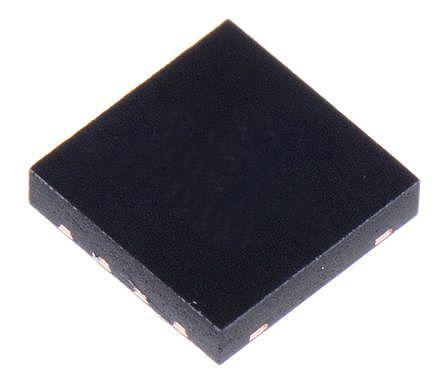

Sw. Regulator 1.2A Step-Dn 3.6-36V DFN8

LT3505EDD-PBF Sw. Regulator 1.2A Step-Dn 3.6-36V DFN8
Linear Technology

Product Information

Number of Outputs:
1
Dimensions:
3 x 3 x 0.7mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
50 V
Maximum Operating Temperature:
+85 °C
Maximum Switching Frequency:
3.3 MHz
Switching Regulator:
Yes
Height:
0.7mm
Width:
3mm
Length:
3mm
Maximum Input Voltage:
36 V
Package Type:
DFN
Regulator Function:
Buck Controller
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
0.78 V
Minimum Input Voltage:
3.6 V
Maximum Output Current:
1.2A
Pin Count:
8
Line Regulation:
0.007 %/V
RoHs Compliant
Checking for live stock

This is Sw. Regulator 1.2A Step-Dn 3.6-36V DFN8 manufactured by Linear Technology. The manufacturer part number is LT3505EDD#PBF. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 3 x 3 x 0.7mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 50 v. It has a maximum operating temperature of +85 °c. It has a maximum 3.3 mhz switching frequency. It has a switching regulator yes . In addition, the height is 0.7mm. Furthermore, the product is 3mm wide. Its accurate length is 3mm. 36 v is the maximum voltage of the bespoke product. The package is a sort of dfn. It has a/an buck controller function regulator . Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.78 v minimum output voltage. The product has 3.6 v of minimum input voltage. Featuring 1.2a of maximum output current. It contains 8 pins. Has a line regulation of 0.007 %/v.

pdf icon
LT3505, 1.2A, Step-Down Switching Regulator in 3mm x 3mm DFN Data Sheet(Technical Reference)
