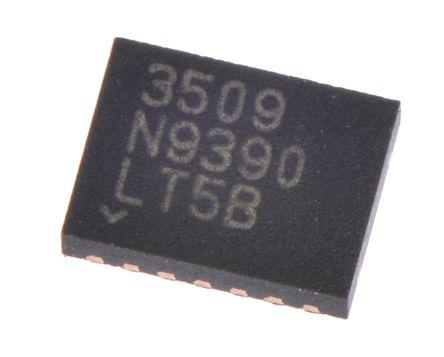

Sw. Regulator Dual 700mA 3.6-36V DFN14EP

LT3509EDE-PBF Sw. Regulator Dual 700mA 3.6-36V DFN14EP
Linear Technology

Product Information

Number of Outputs:
2
Dimensions:
4 x 3 x 0.7mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
60 V
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
2.5 MHz
Switching Regulator:
Yes
Height:
0.7mm
Width:
3mm
Length:
4mm
Maximum Input Voltage:
36 V
Package Type:
DFN
Regulator Function:
Buck Controller
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
0.8 V
Minimum Input Voltage:
3.6 V
Maximum Output Current:
700mA
Pin Count:
14
Line Regulation:
0.01 %/V
RoHs Compliant
Checking for live stock

This is Sw. Regulator Dual 700mA 3.6-36V DFN14EP manufactured by Linear Technology. The manufacturer part number is LT3509EDE#PBF. Additionally, the product is supplied with 2 outputs. The given dimensions of the product include 4 x 3 x 0.7mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 60 v. It has a maximum operating temperature of +125 °c. It has a maximum 2.5 mhz switching frequency. It has a switching regulator yes . In addition, the height is 0.7mm. Furthermore, the product is 3mm wide. Its accurate length is 4mm. 36 v is the maximum voltage of the bespoke product. The package is a sort of dfn. It has a/an buck controller function regulator . Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.8 v minimum output voltage. The product has 3.6 v of minimum input voltage. Featuring 700ma of maximum output current. It contains 14 pins. Has a line regulation of 0.01 %/v.

pdf icon
LT3509, Dual 36V, 700mA Step-Down Regulator Data Sheet(Technical Reference)
