Transistor Polarity:
PNP
Maximum Transition Frequency ft:
125MHz
Width:
5.15 mm
Maximum Collector Emitter Voltage Vceo:
-100V
Automotive Standard:
AEC-Q200, AEC-Q101, AEC-Q100
Transistor Configuration:
Low Saturation
Maximum Collector Base Voltage VCBO:
-100V
Maximum DC Collector Current Idc:
-3A

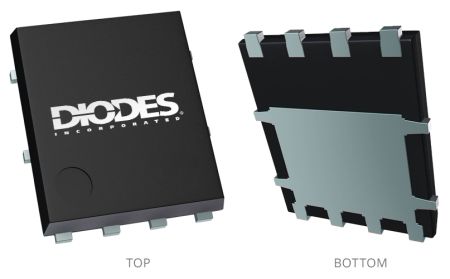

Package Type:
PowerDI5060-8
Minimum DC Current Gain hFE:
170
Product Type:
Low Saturation Bipolar Transistor
Maximum Operating Temperature:
175°C
Length:
5.15mm
Standards/Approvals:
RoHS
Maximum Emitter Base Voltage VEBO:
-7V
Pin Count:
8
Mount Type:
Surface
Maximum Power Dissipation Pd:
5W
Series:
DXTP3C100PSQ-13
Height:
6.4mm
Minimum Operating Temperature:
-55°C
