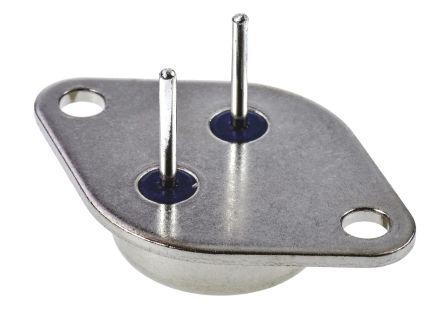

Magnatec BUP52 NPN Bipolar Transistor, 70 A, 200 V, 3-Pin TO-3
Product Information
Minimum DC Current Gain:
8
Transistor Type:
NPN
Dimensions:
39.95 x 26.67 x 7.87mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
300 W
Maximum Collector Emitter Saturation Voltage:
0.9 V
Maximum Collector Emitter Voltage:
200 V
Maximum Base Emitter Saturation Voltage:
1.5 V
Height:
7.87mm
Width:
26.67mm
Length:
39.95mm
Package Type:
TO-3
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum DC Collector Current:
70 A
Maximum Emitter Base Voltage:
10 V
Maximum Operating Temperature:
+200 °C
Pin Count:
3
Transistor Configuration:
Single
Checking for live stock
FAQs
Yes. You can also search BUP52 on website for other similar products.
We accept all major payment methods for all products including ET14019015. Please check your shopping cart at the time of order.
You can order Magnatec brand products with BUP52 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Magnatec BUP52 NPN Bipolar Transistor, 70 A, 200 V, 3-Pin TO-3. You can also check on our website or by contacting our customer support team for further order details on Magnatec BUP52 NPN Bipolar Transistor, 70 A, 200 V, 3-Pin TO-3.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14019015 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Magnatec" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14019015.
Yes. We ship BUP52 Internationally to many countries around the world.
This is NPN Bipolar Transistor 70 A 200 V 3-Pin TO-3 manufactured by Magnatec. The manufacturer part number is BUP52. It features up to 8 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 39.95 x 26.67 x 7.87mm. The product is available in through hole configuration. Provides up to 300 w maximum power dissipation. The product has a maximum 0.9 v collector emitter saturation voltage . Whereas features a 200 v of collector emitter voltage (max). In addition, the product has a maximum 1.5 v base emitter saturation voltage . In addition, the height is 7.87mm. Furthermore, the product is 26.67mm wide. Its accurate length is 39.95mm. The package is a sort of to-3. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. Moreover, it has a maximum DC collector current of 70 a. It features a 10 v of maximum emitter base voltage. It has a maximum operating temperature of +200 °c. It contains 3 pins. The product offers single transistor configuration.
