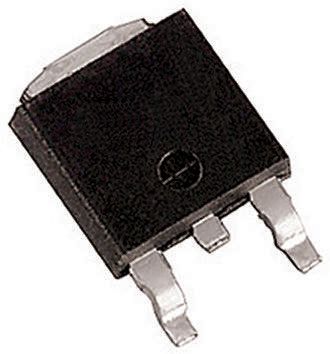

ROHM 2SA1952TLQ PNP Transistor, 5 A, 60 V, 3-Pin SC-63

2SA1952TLQ ROHM PNP Transistor, 5 A, 60 V, 3-Pin SC-63
2SA1952TLQ
ROHM

Product Information

Transistor Type:
PNP
Dimensions:
2.3 x 6.5 x 5.5mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1 W
Maximum Collector Base Voltage:
100 V
Maximum Collector Emitter Voltage:
-60 V
Maximum Operating Frequency:
80 MHz
Pin Count:
3
Maximum Emitter Base Voltage:
5 V
Package Type:
SC-63
Number of Elements per Chip:
1
Maximum DC Collector Current:
-5 A
Maximum Operating Temperature:
+150 °C
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is PNP Transistor 5 A 60 V 3-Pin SC-63 manufactured by ROHM. The manufacturer part number is 2SA1952TLQ. The transistor is a pnp type. The given dimensions of the product include 2.3 x 6.5 x 5.5mm. The product is available in surface mount configuration. Provides up to 1 w maximum power dissipation. Additionally, it has 100 v maximum collector base voltage. Whereas features a -60 v of collector emitter voltage (max). It carries 80 mhz of maximum operating frequency. It contains 3 pins. It features a 5 v of maximum emitter base voltage. The package is a sort of sc-63. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of -5 a. It has a maximum operating temperature of +150 °c. The product offers single transistor configuration.
