Minimum DC Current Gain:
40
Transistor Type:
NPN
Dimensions:
2.9 x 1.3 x 0.97mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Collector Emitter Saturation Voltage:
0.4 V
Maximum Collector Base Voltage:
30 V
Maximum Collector Emitter Voltage:
25 V
Maximum Operating Frequency:
1 MHz
Height:
0.97mm
Width:
1.3mm
Length:
2.9mm
Package Type:
SOT-23
Number of Elements per Chip:
1
Maximum DC Collector Current:
0.8 A
Maximum Emitter Base Voltage:
5 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
800 mA
RoHS Status:
RoHS non-compliant
Voltage - Collector Emitter Breakdown (Max):
25 V
Operating Temperature:
150°C (TJ)
Package / Case:
TO-236-3, SC-59, SOT-23-3
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 100mA, 1V
Frequency - Transition:
120MHz
Package:
Bulk
REACH Status:
Vendor Undefined
Transistor Type:
NPN
Vce Saturation (Max) @ Ib, Ic:
400mV @ 20mA, 500mA
Current - Collector Cutoff (Max):
100nA
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SOT-23-3
Power - Max:
200 mW

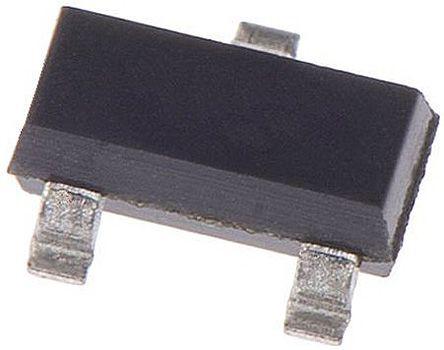

This is Fairchild NPN Transistor 0.8 A 25 V 3-Pin SOT-23 manufactured by Fairchild Semiconductor. The manufacturer part number is KSC3265YMTF. It features up to 40 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 2.9 x 1.3 x 0.97mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. The product has a maximum 0.4 v collector emitter saturation voltage . Additionally, it has 30 v maximum collector base voltage. Whereas features a 25 v of collector emitter voltage (max). It carries 1 mhz of maximum operating frequency. In addition, the height is 0.97mm. Furthermore, the product is 1.3mm wide. Its accurate length is 2.9mm. The package is a sort of sot-23. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 0.8 a. It features a 5 v of maximum emitter base voltage. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration. The maximum collector current includes 800 ma. The product is rohs non-compliant. The maximum collector emitter breakdown voltage of the product is 25 v. The product has 150°c (tj) operating temperature range. Moreover, the product comes in to-236-3, sc-59, sot-23-3. Furthermore, 100 @ 100ma, 1v is the minimum DC current gain at given voltage. The transition frequency of the product is 120mhz. It is shipped in bulk package . In addition, it is vendor undefined. The 400mv @ 20ma, 500ma is the maximum Vce saturation. In addition, 100na is the maximum current at collector cutoff. sot-23-3 is the supplier device package value. The maximum power of the product is 200 mw.
