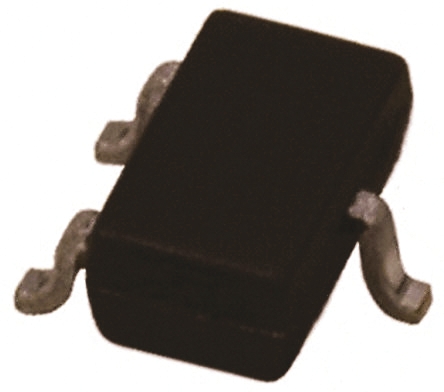

Diodes Inc BC847BT-7-F NPN Transistor, 100 mA, 45 V, 3-Pin SOT-523

Enrgtech Part No: ET13856107
|
Manufacturer Part No:
BC847BT-7-F
|
Manufacturer: DiodesZetex

BC847BT-7-F Diodes Inc NPN Transistor, 100 mA, 45 V, 3-Pin SOT-523

Product Information

Minimum DC Current Gain:

200

Transistor Type:

NPN

Dimensions:

1.7 x 0.85 x 0.8mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

150 mW

Maximum Collector Base Voltage:

50 V

Maximum Collector Emitter Voltage:

45 V

Maximum Operating Frequency:

100 MHz

Maximum Emitter Base Voltage:

6 V

Package Type:

SOT-523 (SC-89)

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Checking for live stock

This is Diodes Inc NPN Transistor 100 mA 45 V 3-Pin SOT-523 manufactured by DiodesZetex. The manufacturer part number is BC847BT-7-F. It features up to 200 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 1.7 x 0.85 x 0.8mm. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. Additionally, it has 50 v maximum collector base voltage. Whereas features a 45 v of collector emitter voltage (max). It carries 100 mhz of maximum operating frequency. It features a 6 v of maximum emitter base voltage. The package is a sort of sot-523 (sc-89). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
