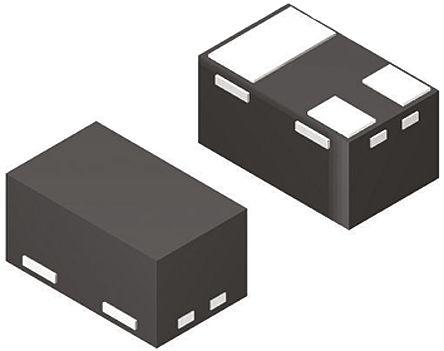

Diodes Inc ZXTN620MATA NPN Transistor, 3.8 A, 80 V, 3-Pin DFN-2020B

ZXTN620MATA Diodes Inc  NPN Transistor, 3.8 A, 80 V, 3-Pin DFN-2020B
DiodesZetex

Product Information

Dimensions:
2.075 x 2.075 x 0.58mm
Maximum Collector Emitter Saturation Voltage:
340 mV
Width:
2.075mm
Transistor Configuration:
Single
Maximum Operating Frequency:
160 MHz
Package Type:
DFN-2020B
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
100 V
Maximum Base Emitter Saturation Voltage:
1.05 V
Maximum Emitter Base Voltage:
7 V
Length:
2.08mm
Maximum DC Collector Current:
3.8 A
Pin Count:
3
Minimum DC Current Gain:
900
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.45 W
Maximum Collector Emitter Voltage:
80 V
Height:
0.58mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is Diodes Inc NPN Transistor 3.8 A 80 V 3-Pin DFN-2020B manufactured by DiodesZetex. The manufacturer part number is ZXTN620MATA. The given dimensions of the product include 2.075 x 2.075 x 0.58mm. The product has a maximum 340 mv collector emitter saturation voltage . Furthermore, the product is 2.075mm wide. The product offers single transistor configuration. It carries 160 mhz of maximum operating frequency. The package is a sort of dfn-2020b. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Additionally, it has 100 v maximum collector base voltage. In addition, the product has a maximum 1.05 v base emitter saturation voltage . It features a 7 v of maximum emitter base voltage. Its accurate length is 2.08mm. Moreover, it has a maximum DC collector current of 3.8 a. It contains 3 pins. It features up to 900 of minimum DC current gain. The product is available in surface mount configuration. Provides up to 2.45 w maximum power dissipation. Whereas features a 80 v of collector emitter voltage (max). In addition, the height is 0.58mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
80v NPN Low Saturation Transistor Datasheet(Technical Reference)
