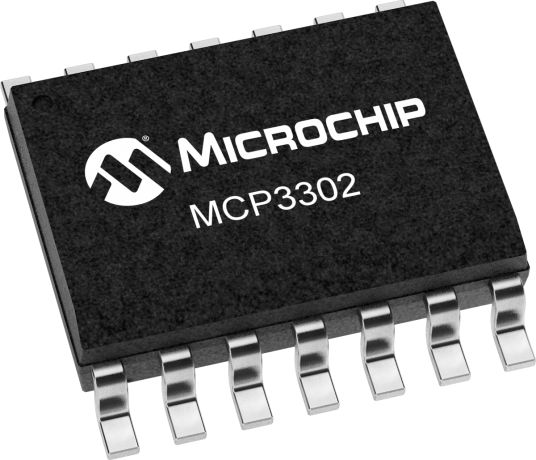

Microchip MCP3302-CI/SL, 12-bit + Sign Serial ADC Differential, Single Ended Input, 14-Pin SOIC

MCP3302-CI-SL Microchip MCP3302-CI/SL, 12-bit + Sign Serial ADC Differential, Single Ended Input, 14-Pin SOIC
Microchip

Product Information

Number of ADCs:
2
Integral Nonlinearity Error:
±2LSB
Digital Interface Type:
Serial (SPI)
Dimensions:
8.65 x 3.9 x 1.25mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
125 °C
Minimum Operating Temperature:
-40 °C
Input Signal Type:
Differential, Single Ended
Typical Single Supply Voltage:
5 V
Package Type:
SOIC
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
100ksps
Resolution:
12-bit + Sign
Pin Count:
14
RoHs Compliant
Checking for live stock

This is 12-bit + Sign Serial ADC Differential Single Ended Input 14-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP3302-CI/SL. It contains 2 ADCs . Its integral nonlinearity error is ±2lsb . Additionally, the product has a/an serial (spi) type digital interface . The given dimensions of the product include 8.65 x 3.9 x 1.25mm. The product is available in surface mount configuration. It has a maximum operating temperature of 125 °c. Whereas, the minimum operating temperature of the product is -40 °c. The input signal is a kind of differential, single ended signal. It has a typical single supply voltage of 5 v. The package is a sort of soic. The product has been designed as sar. It carries voltage input type. It has about 100ksps sampling rate . Features 12-bit + sign resolution. It contains 14 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search MCP3302-CI/SL on website for other similar products.
We accept all major payment methods for all products including ET14009237. Please check your shopping cart at the time of order.
You can order Microchip brand products with MCP3302-CI/SL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Analogue to Digital Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Microchip MCP3302-CI/SL, 12-bit + Sign Serial ADC Differential, Single Ended Input, 14-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on Microchip MCP3302-CI/SL, 12-bit + Sign Serial ADC Differential, Single Ended Input, 14-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14009237 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microchip" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14009237.
Yes. We ship MCP3302-CI/SL Internationally to many countries around the world.
