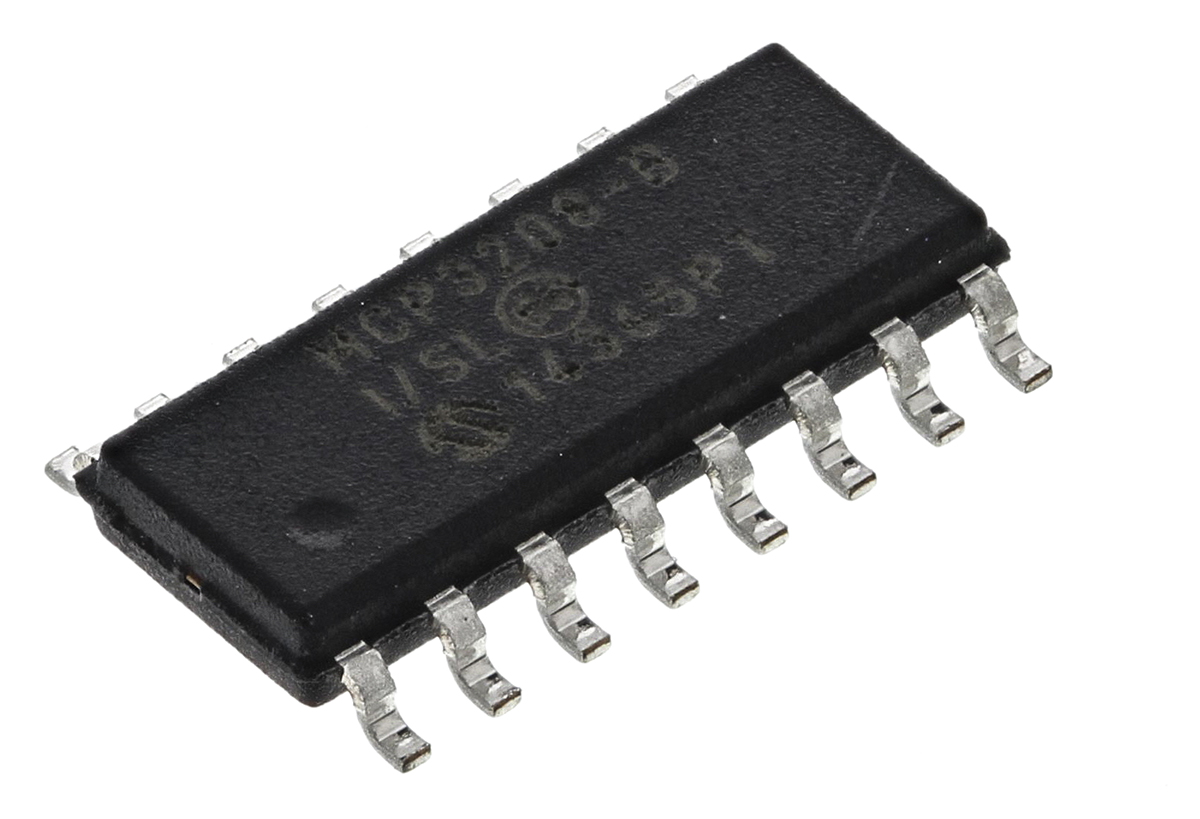

Microchip MCP3208-BI/SL, 12-bit Serial ADC Pseudo Differential, Single Ended Input, 16-Pin SOIC

MCP3208-BI-SL Microchip MCP3208-BI/SL, 12-bit Serial ADC Pseudo Differential, Single Ended Input, 16-Pin SOIC
Microchip

Product Information

Number of ADCs:
8
Integral Nonlinearity Error:
±1LSB
Dimensions:
9.9 x 3.9 x 1.5mm
Mounting Type:
Surface Mount
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (SPI)
Input Signal Type:
Pseudo Differential, Single Ended
Typical Single Supply Voltage:
2.7 to 5.5 V
Package Type:
SOIC
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
100ksps
Maximum Operating Temperature:
85 °C
Resolution:
12-bit
Pin Count:
16
RoHs Compliant
Checking for live stock

This is 12-bit Serial ADC Pseudo Differential Single Ended Input 16-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP3208-BI/SL. It contains 8 ADCs . Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 9.9 x 3.9 x 1.5mm. The product is available in surface mount configuration. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (spi) type digital interface . The input signal is a kind of pseudo differential, single ended signal. It has a typical single supply voltage of 2.7 to 5.5 v. The package is a sort of soic. The product has been designed as sar. It carries voltage input type. It has about 100ksps sampling rate . It has a maximum operating temperature of 85 °c. Features 12-bit resolution. It contains 16 pins.
