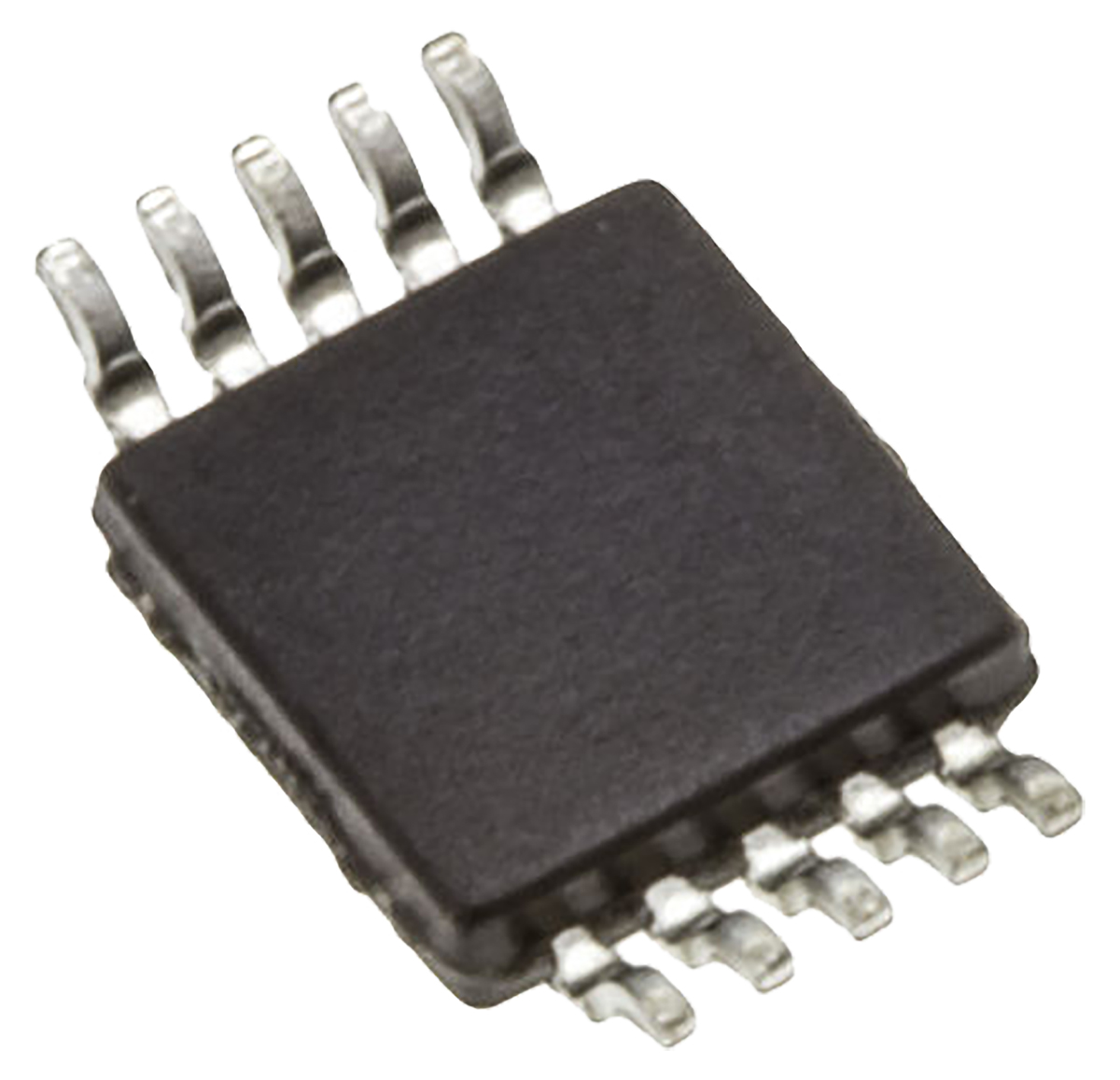

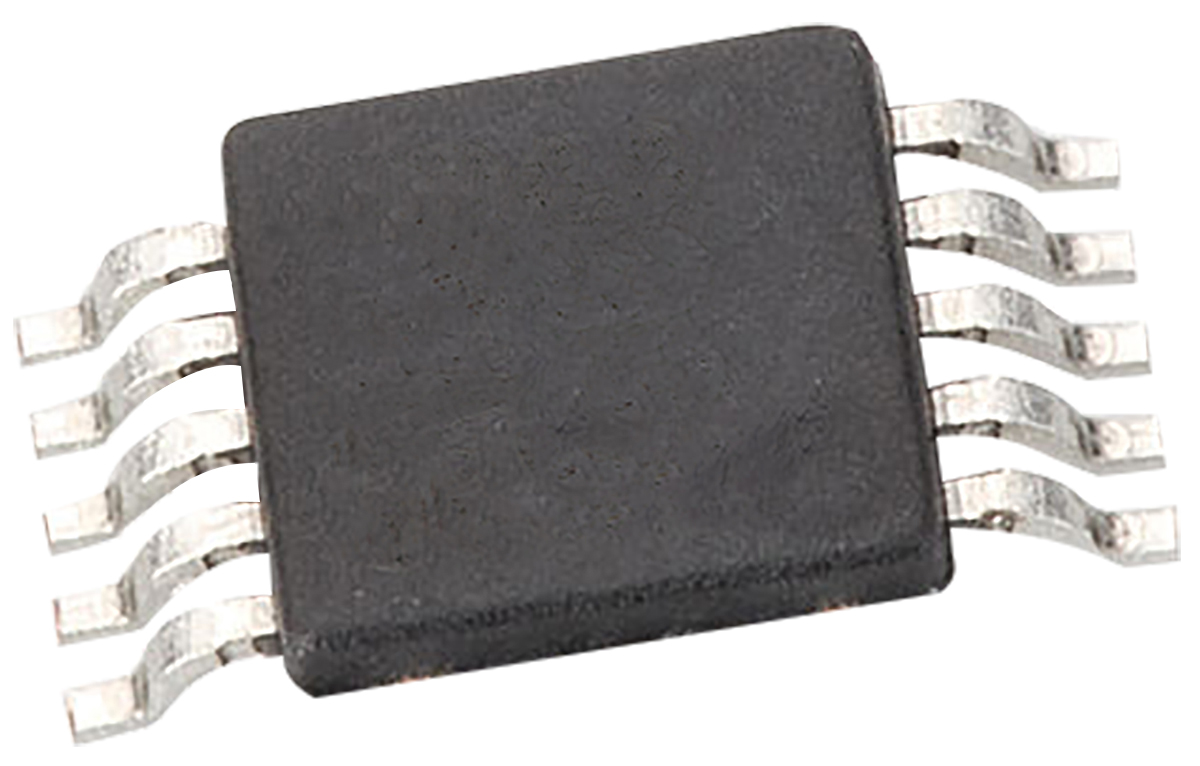

Microchip MCP3423-E/UN, 18-bit Serial ADC Differential, Single Ended Input, 10-Pin MSOP

MCP3423-E-UN Microchip MCP3423-E/UN, 18-bit Serial ADC Differential, Single Ended Input, 10-Pin MSOP
MCP3423-E/UN
Microchip

Product Information

Number of ADCs:
2
Integral Nonlinearity Error:
35ppm FSR
Dimensions:
3 x 3 x 0.85mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
85 °C
Minimum Operating Temperature:
-40 °C
Digital Interface Type:
Serial (I2C)
Input Signal Type:
Differential, Single Ended
Typical Single Supply Voltage:
5 V
Package Type:
MSOP
Architecture:
Delta Sigma
Input Type:
Voltage
Sampling Rate:
0.004ksps
Resolution:
18-bit
Pin Count:
10
RoHs Compliant
Checking for live stock

This is 18-bit Serial ADC Differential Single Ended Input 10-Pin MSOP manufactured by Microchip. The manufacturer part number is MCP3423-E/UN. It contains 2 ADCs . Its integral nonlinearity error is 35ppm fsr . The given dimensions of the product include 3 x 3 x 0.85mm. The product is available in surface mount configuration. It has a maximum operating temperature of 85 °c. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, the product has a/an serial (i2c) type digital interface . The input signal is a kind of differential, single ended signal. It has a typical single supply voltage of 5 v. The package is a sort of msop. The product has been designed as delta sigma. It carries voltage input type. It has about 0.004ksps sampling rate . Features 18-bit resolution. It contains 10 pins.
